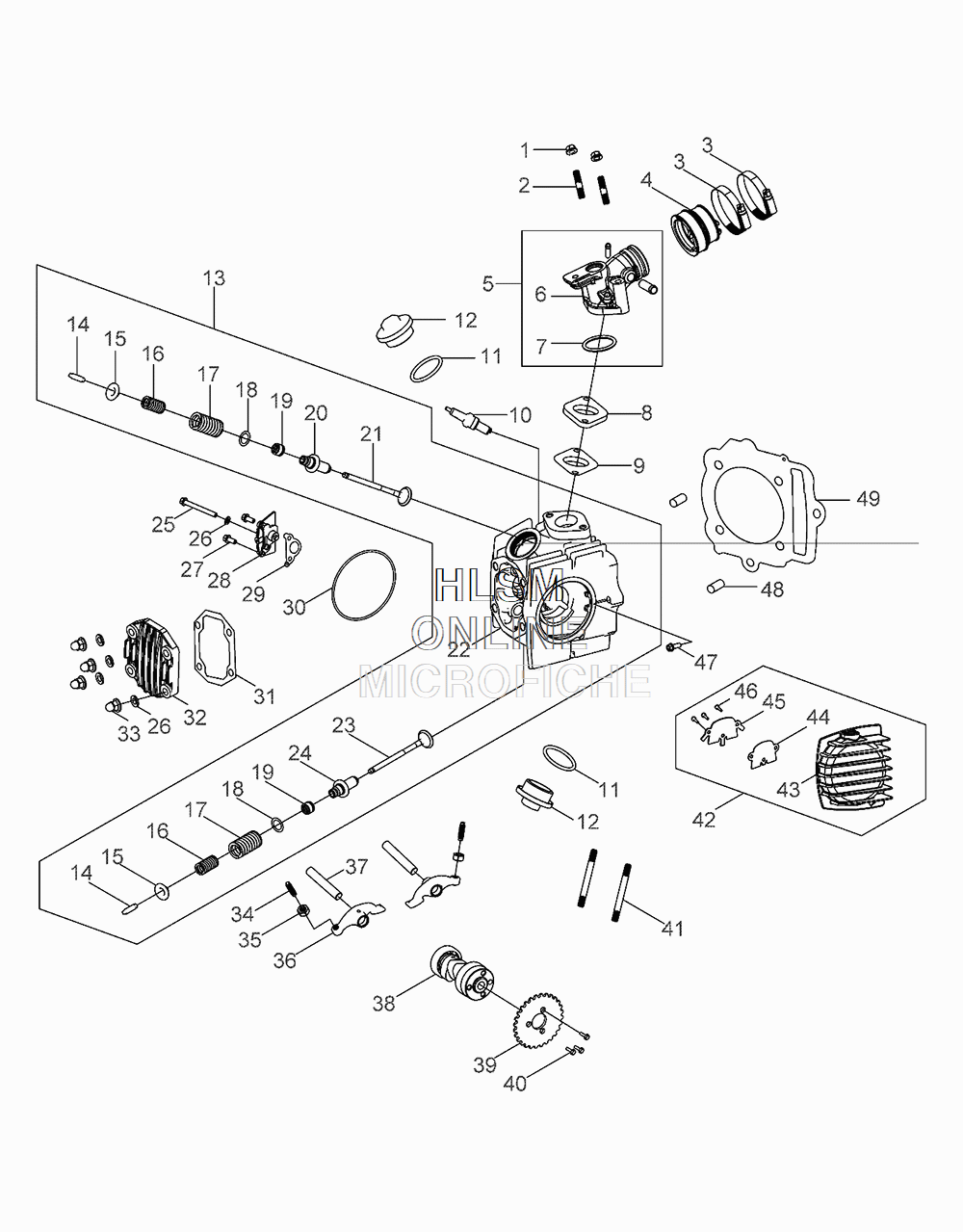

CYLINDER HEAD для Polaris OUTLAW® 110 EFI (PINK POWER) [A16YAK11AD] - 2016 года выпуска
-
№АртикулНазвание
-
-0455106 ASM., ENGINEASM., ENGINE
-
10450880 NUTNUT
-
20454524 STUDSTUD
-
30454512 STRAPSTRAP
-
40455100 ADAPTER, CARBURETORADAPTER, CARBURETOR
-
50455101 ASM., MANIFOLD, INTAKE [INCL. 6,7]ASM., MANIFOLD, INTAKE [INCL. 6,7]
-
70453563 O-RINGO-RING
-
80453449 INSULATOR, MANIFOLDINSULATOR, MANIFOLD
-
90453451 GASKET, MANIFOLDGASKET, MANIFOLD
-
100453034 PLUG, SPARKPLUG, SPARK
-
110452371 O-RINGO-RING
-
120453537 CAPCAP
-
130455102 ASM., CYLINDER HEAD [INCL. 14-24]ASM., CYLINDER HEAD [INCL. 14-24]
-
140452389 CLIP, RETAINERCLIP, RETAINER
-
150453443 RETAINER, VALVE, SPRINGRETAINER, VALVE, SPRING
-
160453442 SPRING, VALVE, INNERSPRING, VALVE, INNER
-
170453441 SPRING, VALVE, OUTERSPRING, VALVE, OUTER
-
180453444 SEAT, VALVE, SPRING, OUTERSEAT, VALVE, SPRING, OUTER
-
190453426 SEAL, VALVESEAL, VALVE
-
200453575 GUIDE, VALVE INTAKEGUIDE, VALVE INTAKE
-
210453439 VALVE, INTAKEVALVE, INTAKE
-
230453440 VALVE, EXHAUSTVALVE, EXHAUST
-
240453576 GUIDE, VALVE EXHAUSTGUIDE, VALVE EXHAUST
-
250453723 BOLTBOLT
-
260453510 WASHERWASHER
-
270453519 BOLTBOLT
-
280455103 COVER, HEAD , RIGHT HANDCOVER, HEAD , RIGHT HAND
-
290453539 GASKETGASKET
-
300453538 GASKETGASKET
-
310453578 GASKET , HEAD COVERGASKET , HEAD COVER
-
320453534 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
330453553 NUTNUT
-
340452423 SCREW, TAPPET ADJ.SCREW, TAPPET ADJ.
-
350452424 NUT, TAPPET ADJ.NUT, TAPPET ADJ.
-
360453434 ARM, VALVE, ROCKERARM, VALVE, ROCKER
-
370453435 SHAFT, INTAKE, ROCKER ARMSHAFT, INTAKE, ROCKER ARM
-
380455104 ASM., CAM SHAFTASM., CAM SHAFT
-
390453583 SPROCKET, CAM SHAFTSPROCKET, CAM SHAFT
-
400453584 BOLTBOLT
-
410453504 STUDSTUD
-
420453582 ASM., BREATHER COVER [INCL. 43-46]ASM., BREATHER COVER [INCL. 43-46]
-
430453579 COVER, BREATHERCOVER, BREATHER
-
440453580 GASKETGASKET
-
450453581 BREATHER, CRANKCASE, LOWERBREATHER, CRANKCASE, LOWER
-
460451766 SCREWSCREW
-
470453520 BOLTBOLT
-
480452342 PIN, DOWELPIN, DOWEL
-
490455105 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
