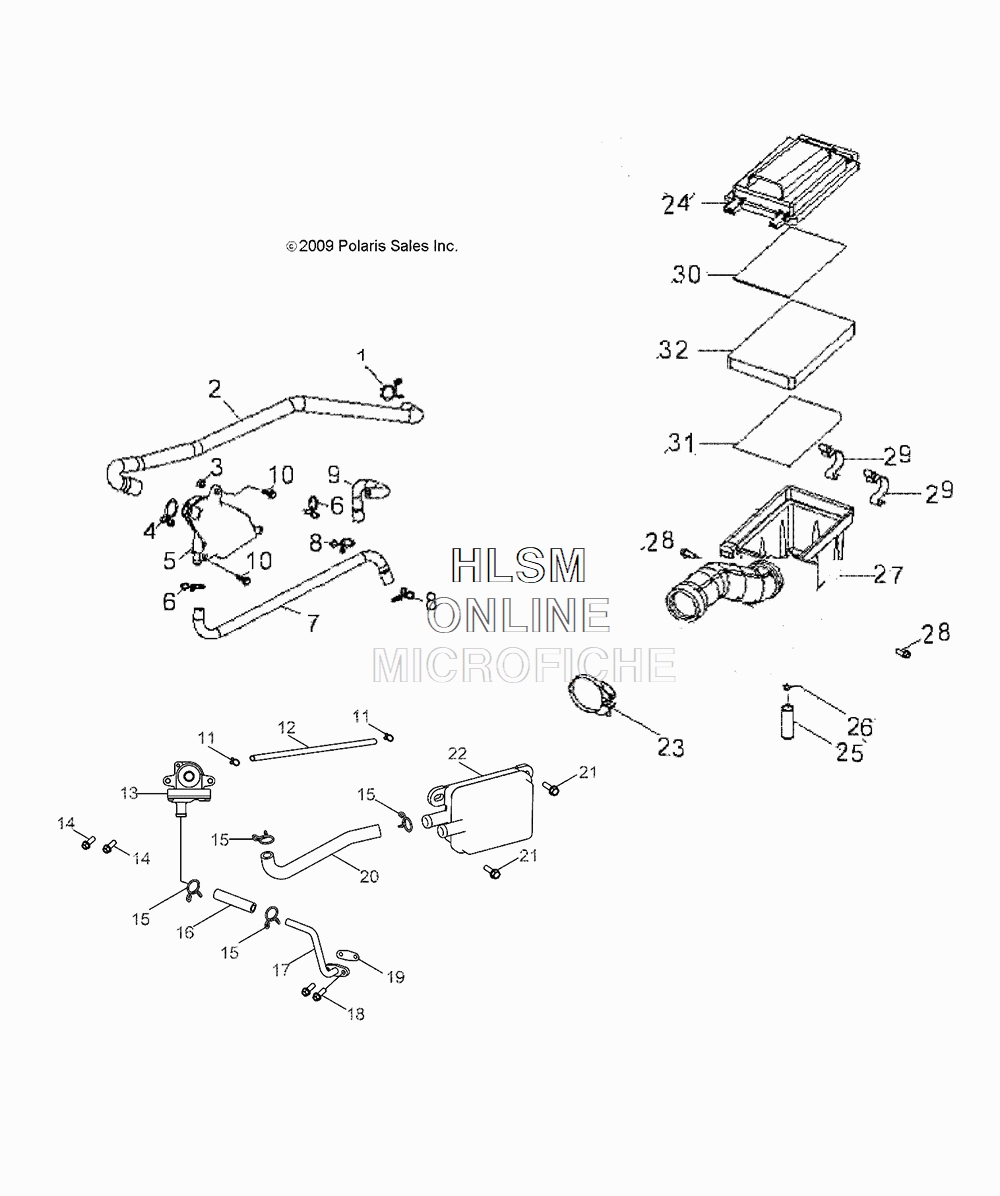

AIR INTAKE SYSTEM для Polaris OUTLAW 50 (PINK POWER) [A16YAK05AD] - 2016 года выпуска
-
№АртикулНазвание
-
10453932 CLIPCLIP
-
20453933 TUBE, BREATHER, VENTILATEDTUBE, BREATHER, VENTILATED
-
30450150 NUT, FLANGENUT, FLANGE
-
40453187 CLIP, RETAININGCLIP, RETAINING
-
50453184 SEPARATOR, OIL [INCL. 25]SEPARATOR, OIL [INCL. 25]
-
60453934 CLIPCLIP
-
70453935 TUBE, OILTUBE, OIL
-
80453936 CLIPCLIP
-
90454000 TUBE, OILTUBE, OIL
-
100454011 BOLTBOLT
-
110453944 CLAMPCLAMP
-
120454927 HOSEHOSE
-
130454398 VALVE, INTAKE, DUALVALVE, INTAKE, DUAL
-
140453517 BOLT, FRAMEBOLT, FRAME
-
150452795 CLIPCLIP
-
160454928 HOSEHOSE
-
170454938 TUBE, INTAKE, DUALTUBE, INTAKE, DUAL
-
180452413 BOLT, HEX, FLANGEBOLT, HEX, FLANGE
-
190452808 GASKET, AIR INJECTIONGASKET, AIR INJECTION
-
200454941 HOSE, FORMEDHOSE, FORMED
-
210454785 BOLTBOLT
-
220454375 ASM., FILTERASM., FILTER
-
230452562 CLAMPCLAMP
-
240453908 COVERCOVER
-
250453938 HOSE, DRAINHOSE, DRAIN
-
260453932 CLIPCLIP
-
270453943 ASM., AIR BOX W/BOOTASM., AIR BOX W/BOOT
-
280453939 BOLTBOLT
-
290453940 CLIPCLIP
-
300453907 GASKETGASKET
-
310453905 SCREENSCREEN
-
320453906 FILTER, AIR BOXFILTER, AIR BOX
