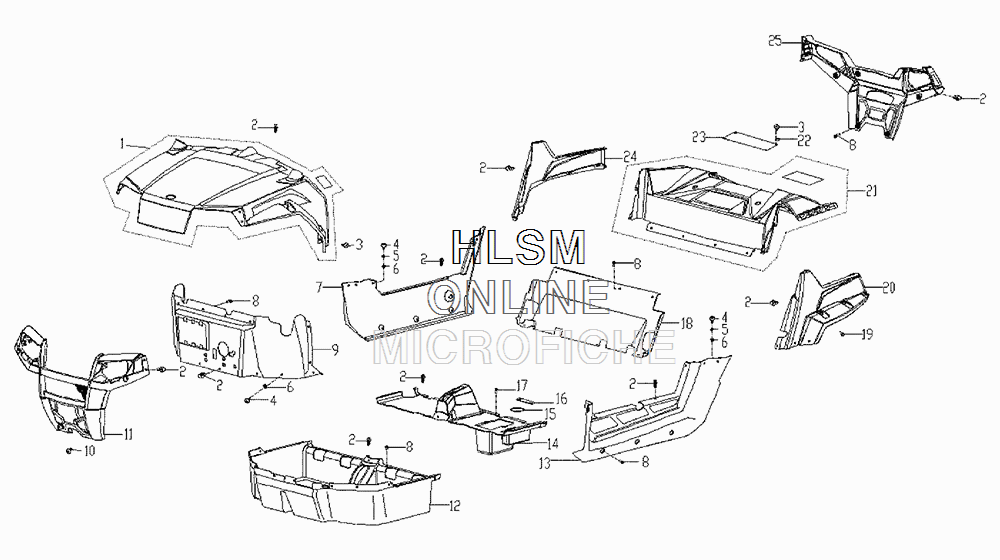

HOOD- BUMPERS- PANELS- FLOOR AND RACK для Polaris RZR 170 EFI VODOO BLUE [Z16YAV17AB] - 2016 года выпуска
-
№АртикулНазвание
-
10455086-133 ASM., CAB, WHITEASM., CAB, WHITE
-
27661855 RIVETRIVET
-
30450297 BOLTBOLT
-
40454318 BOLTBOLT
-
50452201 WASHER, FLATWASHER, FLAT
-
60450808 NUT, LOCKNUT, LOCK
-
70455022-070 PANEL, ROCKER, RH, BLACKPANEL, ROCKER, RH, BLACK
-
80452215 BOLTBOLT
-
90454288 PANEL, FLOOR, FRONT, BLACKPANEL, FLOOR, FRONT, BLACK
-
100453977 BOLTBOLT
-
110454801-070 BUMPER, FRONT, BLACKBUMPER, FRONT, BLACK
-
120454623 FLOOR, BLACKFLOOR, BLACK
-
130454802-070 PANEL, ROCKER, LH, BLACKPANEL, ROCKER, LH, BLACK
-
140454863-070 COVER, FLOOR, CONSOLE, BLACKCOVER, FLOOR, CONSOLE, BLACK
-
150453687 O-RINGO-RING
-
160452660 STRAP, BATTERY, RUBBERSTRAP, BATTERY, RUBBER
-
170452216 BOLTBOLT
-
180454635 PANEL, DIVIDER, REAR, BLACKPANEL, DIVIDER, REAR, BLACK
-
190450040 SCREWSCREW
-
200454283-133 PANEL, SIDE, BOX, REAR, LH, WHITEPANEL, SIDE, BOX, REAR, LH, WHITE
-
210454916-070 ASM., BOX, REAR, W/DECALS, BLACKASM., BOX, REAR, W/DECALS, BLACK
-
220454399 U-NUTU-NUT
-
230454799 PANEL, ACCESSPANEL, ACCESS
-
240454284-133 PANEL, SIDE, BOX, REAR, RH, WHITEPANEL, SIDE, BOX, REAR, RH, WHITE
-
250454294-070 BUMPER, REAR, BLACKBUMPER, REAR, BLACK
