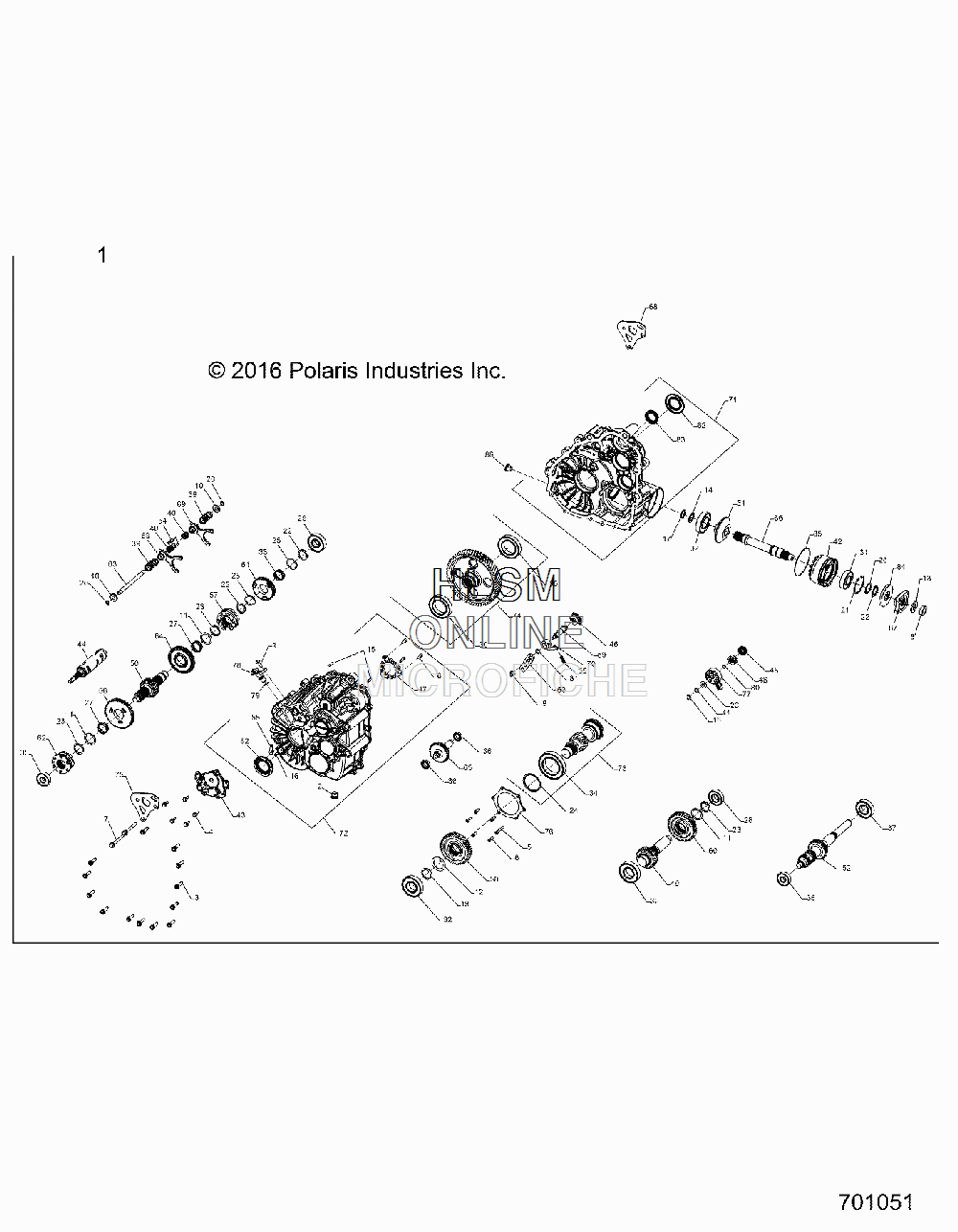

GEARCASE - MAIN - INTERNAL COMPONENTS для Polaris RZR XP TURBO EPS SUNSET RED [Z16VDE92AS] - 2016 года выпуска
-
№АртикулНазвание
-
11333610 ASM-GEARCASE,COMPLETE [INCL. ALL]ASM-GEARCASE,COMPLETE [INCL. ALL]
-
11333372 ASM-GEARCASE,COMPLETE [INCL. ALL]ASM-GEARCASE,COMPLETE [INCL. ALL]
-
23234756 PLUG M18 X 1.5, MAGNETICPLUG M18 X 1.5, MAGNETIC
-
33234898 SCREW, HEX FLANGE HEAD M8 X 1.25 X 30SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
-
43235206 SCREW, HEX FLANGE HEAD M6 X 1 X 20SCREW, HEX FLANGE HEAD M6 X 1 X 20
-
53235208 SCREW, SOCKET HEAD CAP, M6 X 1 X 40SCREW, SOCKET HEAD CAP, M6 X 1 X 40
-
63235332 SCREW, SOCKET HEAD CAP, M6 X 1 X 18SCREW, SOCKET HEAD CAP, M6 X 1 X 18
-
73235802 SCREW HEX FLANGE M8 X 1.25 X 70SCREW HEX FLANGE M8 X 1.25 X 70
-
83235803 NUT, JAM M20 X 1.5NUT, JAM M20 X 1.5
-
93235210 NUT, LOCK HEX FLANGE NYLON M8 X 1.25NUT, LOCK HEX FLANGE NYLON M8 X 1.25
-
103234091 WASHER CUPWASHER CUP
-
113235211 WASHER 32.3 X 42 X 1.5WASHER 32.3 X 42 X 1.5
-
123235212 WASHER 35.6 X 50 X 1.5WASHER 35.6 X 50 X 1.5
-
133235804 WASHER, LOCKING 21.4 X 39 X 3.4WASHER, LOCKING 21.4 X 39 X 3.4
-
143235805 WASHER 25.26 X 34 X 2WASHER 25.26 X 34 X 2
-
153234330 PIN, DOWEL 6 X 20PIN, DOWEL 6 X 20
-
167043746 PIN, SPRING SLOTTED 6 X 12PIN, SPRING SLOTTED 6 X 12
-
173233106 RING, RETAINING BASIC EXTERNAL 0.984RING, RETAINING BASIC EXTERNAL 0.984
-
183233834 RING SNAPRING SNAP
-
193233364 RING, RETAINING SHAFT, DIA. 1.375RING, RETAINING SHAFT, DIA. 1.375
-
203234090 RING, RETAINING BASIC EXTERNAL 0.428RING, RETAINING BASIC EXTERNAL 0.428
-
213234741 RING, RETAINING BASIC INTERNAL, 62MMRING, RETAINING BASIC INTERNAL, 62MM
-
223234205 RING, RETAININGRING, RETAINING
-
233235214 RING, EXTERNAL SNAP 32 X 2.4RING, EXTERNAL SNAP 32 X 2.4
-
243235216 RING, RETAINING VSH-237RING, RETAINING VSH-237
-
253233378 WASHER, THRUST 1.187 X 1.5 X 0.06WASHER, THRUST 1.187 X 1.5 X 0.06
-
263234642 WASHER, THRUST 0.446 X 0.88 X 0.025WASHER, THRUST 0.446 X 0.88 X 0.025
-
273233014 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
283233019 BEARING, BALL 6205 C3 25X52X15BEARING, BALL 6205 C3 25X52X15
-
293233020 BEARING, BALL 6305 C3, 25 X 62 X 17BEARING, BALL 6305 C3, 25 X 62 X 17
-
303233268 BEARING, BALL 6010 C3 50X80X16BEARING, BALL 6010 C3 50X80X16
-
313233790 BEARING, BALL 6206 C3 30X62X16BEARING, BALL 6206 C3 30X62X16
-
323234065 BEARING, BALL 6207 C3 35X72X17BEARING, BALL 6207 C3 35X72X17
-
333233384 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
343235218 BEARING, BALL 6012 C3 60 X 95 X 18BEARING, BALL 6012 C3 60 X 95 X 18
-
353234652 BEARING, BALL 6303 17 X 47 X 14BEARING, BALL 6303 17 X 47 X 14
-
363235807 BEARING, BALL 6903 17 X 30 X 7BEARING, BALL 6903 17 X 30 X 7
-
373235496 BEARING, BALL 6206RSH2 STD 30X62X16BEARING, BALL 6206RSH2 STD 30X62X16
-
383235942 SPRING, COMPRESSION 0.36 OD X 1.125SPRING, COMPRESSION 0.36 OD X 1.125
-
393234078 SPRING, COMPRESSION 0.92 O.D. X 2SPRING, COMPRESSION 0.92 O.D. X 2
-
403234089 SPRING, COMPRESSION 0.46 I.D. X 0.73SPRING, COMPRESSION 0.46 I.D. X 0.73
-
413235327 SPRING, WASHERSPRING, WASHER
-
423235947 TUBE, SNORKEL MACHTUBE, SNORKEL MACH
-
423235808 TUBE,SNORKLE MACH [USE W/1333372]TUBE,SNORKLE MACH [USE W/1333372]
-
433235809 COVER, SECTOR GEARS MACHCOVER, SECTOR GEARS MACH
-
443235463 DRUM, SHIFT MACHDRUM, SHIFT MACH
-
453233839 GEAR, SECTOR 16TGEAR, SECTOR 16T
-
463233832 GEAR, SECTOR 31TGEAR, SECTOR 31T
-
473235456 PLATE, PARK 12-FACEPLATE, PARK 12-FACE
-
483235603 STAR, DETENTSTAR, DETENT
-
493235223 SHAFT, IDLER 29TSHAFT, IDLER 29T
-
503235380 SHAFT, REVERSE 27TSHAFT, REVERSE 27T
-
513235812 GEAR, 19T SNORKELGEAR, 19T SNORKEL
-
523235846 SHAFT, INPUT 43T/24T/25TSHAFT, INPUT 43T/24T/25T
-
533235227 BELLCRANK 92 DEGREEBELLCRANK 92 DEGREE
-
543234073 COLLAR, SHIFTCOLLAR, SHIFT
-
553234230 TUBE, VENT 90 -1/4" HOSETUBE, VENT 90 -1/4" HOSE
-
563235232 GEAR, LOW 67TGEAR, LOW 67T
-
573235233 ENGAGEMENT DOG, 6-FACEENGAGEMENT DOG, 6-FACE
-
583235236 GEAR, 46T STAGE 3GEAR, 46T STAGE 3
-
593235238 SHAFT SHIFTSHAFT SHIFT
-
603235381 GEAR, 46T STAGE 2GEAR, 46T STAGE 2
-
613235411 GEAR, 52TGEAR, 52T
-
623235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
633235542 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
643235813 GEAR, REVERSE 61TGEAR, REVERSE 61T
-
653235814 GEAR, IDLER 43TGEAR, IDLER 43T
-
663235815 SHAFT, FRONT OUTPUTSHAFT, FRONT OUTPUT
-
673235816 COUPLERCOUPLER
-
683235817 WELDMENT, REAR MOUNT BRACKETWELDMENT, REAR MOUNT BRACKET
-
693235454 SUBASSEMBLY SHIFT FORKSUBASSEMBLY SHIFT FORK
-
703235452 SUBASSEMBLY, PAWL DETENT, ROLLERSUBASSEMBLY, PAWL DETENT, ROLLER
-
713235949 SUBASSEMBLY, LH CASESUBASSEMBLY, LH CASE
-
723235950 SUBASSEMBLY, RH CASESUBASSEMBLY, RH CASE
-
733235820 SUBASSEMBLY, PINIONSUBASSEMBLY, PINION
-
743235847 SUBASSEMBLY, OUTPUTSUBASSEMBLY, OUTPUT
-
753235822 BRACKET, REAR MOUNTBRACKET, REAR MOUNT
-
763235823 COVER, BEARING CENTER DRIVECOVER, BEARING CENTER DRIVE
-
777661999 SWITCH, ROTARY 2 PIN RESISTIVESWITCH, ROTARY 2 PIN RESISTIVE
-
784013908 SENSOR SPEEDSENSOR SPEED
-
793234302 O-RINGO-RING
-
803233836 O-RING VITONO-RING VITON
-
813233828 O-RING VITONO-RING VITON
-
823235052 SEAL, TRIPLE LIP, VITON 40 X 70 X 7SEAL, TRIPLE LIP, VITON 40 X 70 X 7
-
833235848 SEAL, TRIPLE LIP 1.180X1.850X0.315 VITONSEAL, TRIPLE LIP 1.180X1.850X0.315 VITON
-
843235824 SEAL, TRIPLE LIP 30 X 75 X 8SEAL, TRIPLE LIP 30 X 75 X 8
-
853235948 O-RING 3.609 I.D. X 0.139O-RING 3.609 I.D. X 0.139
-
853235825 O-RING 3.609IDX.139 [USE W/1333372]O-RING 3.609IDX.139 [USE W/1333372]
-
863234755 PLUG M18 X 1.5PLUG M18 X 1.5
