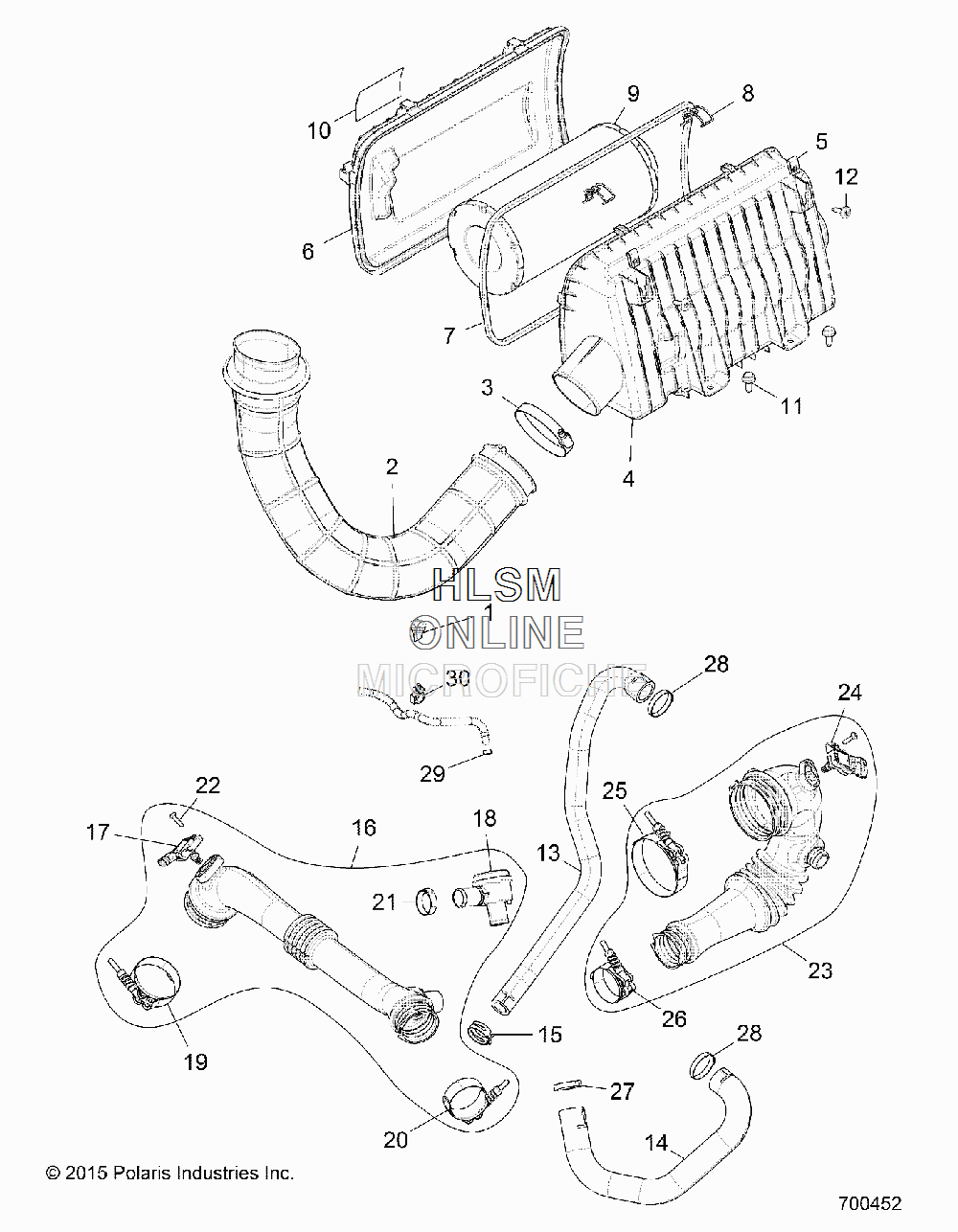

AIR INTAKE SYSTEM для Polaris RZR XP TURBO EPS WHITE LIGHTING [Z16VDE92AW] - 2016 года выпуска
-
№АртикулНазвание
-
15414472 PLUG-DRAINPLUG-DRAIN
-
25414691 HOSE-AIRBOX,INHOSE-AIRBOX,IN
-
37080907 CLAMP-HOSE,3.75,SSCLAMP-HOSE,3.75,SS
-
41240747 ASM-AIRBOX HOUSING [INCL 5]ASM-AIRBOX HOUSING [INCL 5]
-
57547674 NUT-M6-1.0,U-TYPE (2.5-3.8)NUT-M6-1.0,U-TYPE (2.5-3.8)
-
61240748 ASM-AIRBOX COVER [INCL 7,8]ASM-AIRBOX COVER [INCL 7,8]
-
75813929 SEAL-AIRBOXSEAL-AIRBOX
-
87081872 CLIP-AIRBOXCLIP-AIRBOX
-
91240957 ASM-FILTERASM-FILTER
-
107182652 DECAL-CAUT.AIR BOXDECAL-CAUT.AIR BOX
-
117518555 BOLT-M8X1.25X20,HXFLGBOLT-M8X1.25X20,HXFLG
-
127519650 SCR-TXTH-M6X1.0X25 RIESCR-TXTH-M6X1.0X25 RIE
-
135415437 HOSE-VENT,ENGHOSE-VENT,ENG
-
145415474 HOSE-VENT,BOVHOSE-VENT,BOV
-
157080842 SPRINGBAND-CLAMP 29/12,BLKSPRINGBAND-CLAMP 29/12,BLK
-
161240931 ASM-DUCT,CHARGE AIR [INCL 17-21, 1 QTY OF 22]ASM-DUCT,CHARGE AIR [INCL 17-21, 1 QTY OF 22]
-
172413095 SENSOR-TMAP,3BARSENSOR-TMAP,3BAR
-
183022784 VALVE-DUMP,TURBOVALVE-DUMP,TURBO
-
197082091 CLAMP-HOSE T-BOLT,66.3 DIACLAMP-HOSE T-BOLT,66.3 DIA
-
207082092 CLAMP-HOSE T-BOLT,56 DIACLAMP-HOSE T-BOLT,56 DIA
-
217082095 CLAMP-OETIKER,16704932-32CLAMP-OETIKER,16704932-32
-
227519952 SCR-PLASTITE,5.0MMX20-PN-T25SCR-PLASTITE,5.0MMX20-PN-T25
-
231240933 ASM-DUCT,INTAKE AIR [INCL 24-26, 1 QYT OF 22]ASM-DUCT,INTAKE AIR [INCL 24-26, 1 QYT OF 22]
-
242411528 SENSOR-TMAP DSS3-TFSENSOR-TMAP DSS3-TF
-
257082093 CLAMP-HOSE T-BOLT,87.3 DIACLAMP-HOSE T-BOLT,87.3 DIA
-
267082094 CLAMP-HOSE T-BOLT,52.3 DIACLAMP-HOSE T-BOLT,52.3 DIA
-
277082107 CLAMP-OETIKER, 16704965-36.1CLAMP-OETIKER, 16704965-36.1
-
287082108 CLAMP-OETIKER,16702031-38.5CLAMP-OETIKER,16702031-38.5
-
297082109 CLAMP-OETIKER,16700005-10.0CLAMP-OETIKER,16700005-10.0
-
307670116 CLIP-ROUTING,.472 B.D.,HINGEDCLIP-ROUTING,.472 B.D.,HINGED
