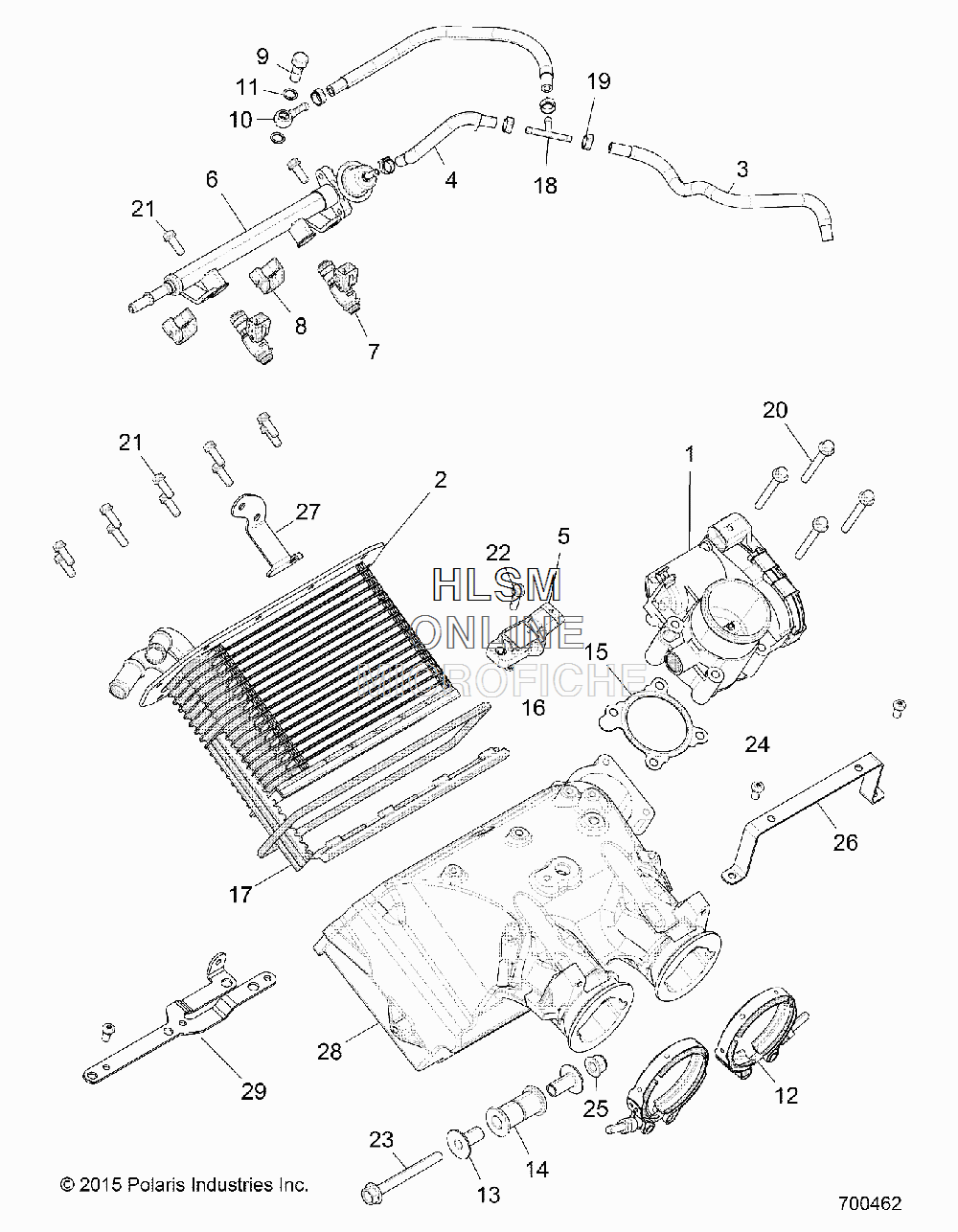

AIR INTAKE MANIFOLD для Polaris RZR XP TURBO MD WHITE LIGHTING [Z16VDE92NH] - 2016 года выпуска
-
№АртикулНазвание
-
11204455 THROTTLE-ETC, 46MMTHROTTLE-ETC, 46MM
-
21240930 CORE-LCACCORE-LCAC
-
31241000 ASM-HOSE REFERENCE, 25 CMASM-HOSE REFERENCE, 25 CM
-
41241001 ASM-HOSE REFERENCE, 10 CMASM-HOSE REFERENCE, 10 CM
-
52413095 SENSOR-TMAP, 3BARSENSOR-TMAP, 3BAR
-
62521494 ASM-RAIL, FUEL,4BAR,REFASM-RAIL, FUEL,4BAR,REF
-
72521514 INJECTOR-FUEL, 375G,3.8BARINJECTOR-FUEL, 375G,3.8BAR
-
82521515 CLIP-INJECTOR, MMCLIP-INJECTOR, MM
-
92521519 BOLT-BANJO, M8X1BOLT-BANJO, M8X1
-
102521520 FITTING-BANJO, M8FITTING-BANJO, M8
-
112521527 WASHER-M8, ALWASHER-M8, AL
-
123022888 CLAMP-VBAND, INTAKECLAMP-VBAND, INTAKE
-
133022994 LIMITER-COMPRESSIONLIMITER-COMPRESSION
-
145415637 ISOLATORISOLATOR
-
155813735 GASKET-ETCGASKET-ETC
-
165814277 SEAL-LCAC, TOPSEAL-LCAC, TOP
-
175814370 SEAL-LCAC, SIDE-BTMSEAL-LCAC, SIDE-BTM
-
187052446 FITTING-T, 3/16,POLYEFITTING-T, 3/16,POLYE
-
197082109 CLAMP-OETIKER, 16700005-10.0CLAMP-OETIKER, 16700005-10.0
-
207517932 SCR-M6X1.0X50.0 HX/FL-Y/DSCR-M6X1.0X50.0 HX/FL-Y/D
-
217518548 SCR-HXFL-M6X1.0X16 8.8 ZY3SCR-HXFL-M6X1.0X16 8.8 ZY3
-
227518576 SCR-HXFL-M6X1.0X20 8.8 ZY3SCR-HXFL-M6X1.0X20 8.8 ZY3
-
237518955 SCR-M8X1.25X75 8.8 HX/FL ZODSCR-M8X1.25X75 8.8 HX/FL ZOD
-
247519063 SCR-TXBH-M6X1.0X12 8.8 ZPB D20SCR-TXBH-M6X1.0X12 8.8 ZPB D20
-
257547332 NUT-M8X1.25, FLG,NYLOC-OLIVE DNUT-M8X1.25, FLG,NYLOC-OLIVE D
-
265260975-329 BRKT-MNT, INJECTOR HARNESS,BLKBRKT-MNT, INJECTOR HARNESS,BLK
-
275261651-329 BRKT-MOUNT, FUEL LINE,BLKBRKT-MOUNT, FUEL LINE,BLK
-
285140096 MANIFOLD-MACH, VBANDMANIFOLD-MACH, VBAND
-
295262111 BRACKET, HARNESSBRACKET, HARNESS
