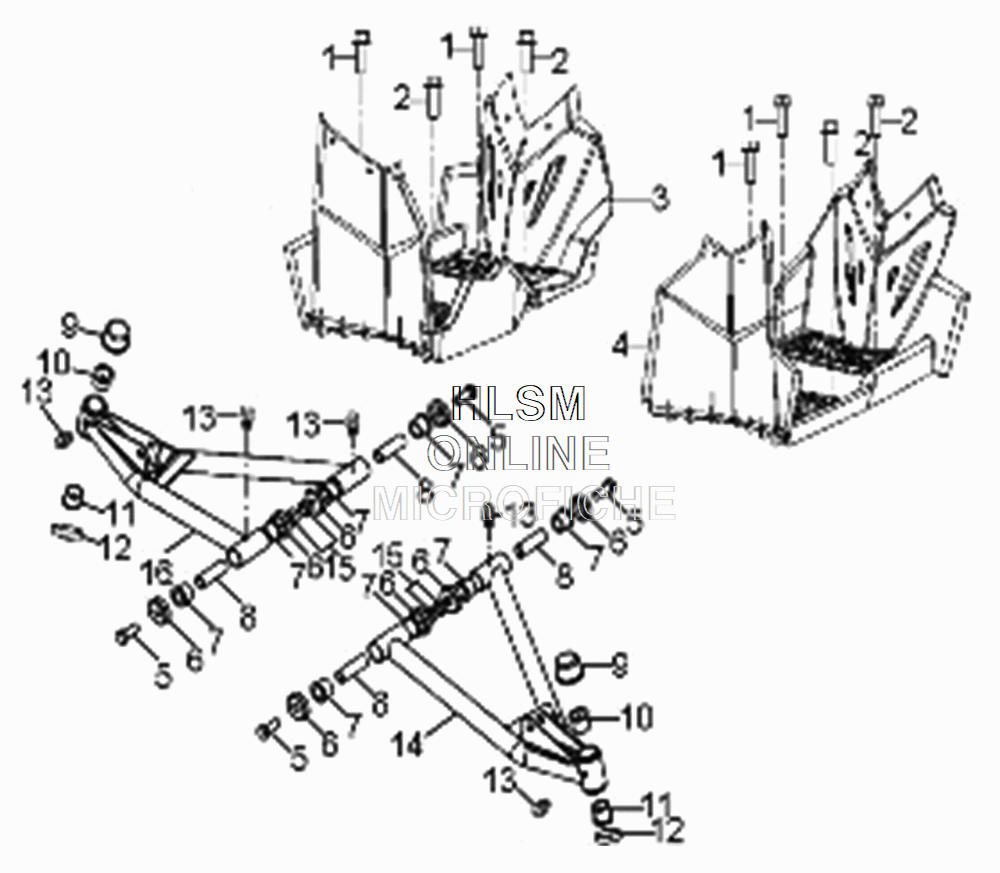

A-ARMS AND FOOTREST для Polaris SPORTSMAN 110 [A16YAF11AA] - 2016 года выпуска
-
№АртикулНазвание
-
10452216 BOLTBOLT
-
20453681 BOLTBOLT
-
30453713-070 FOOTWELL, RH, BLACKFOOTWELL, RH, BLACK
-
40454765-070 FOOTWELL, LH, BLACKFOOTWELL, LH, BLACK
-
50453682 BOLTBOLT
-
60451762 CAP, RUBBERCAP, RUBBER
-
70453683 BUSHINGBUSHING
-
80453497 SPACERSPACER
-
90450316 COVER, WATERPROOFCOVER, WATERPROOF
-
100450313 BUSHING, GREASE RETAINER, UPPERBUSHING, GREASE RETAINER, UPPER
-
110450314 BUSHING, GREASE RETAINER, LOWERBUSHING, GREASE RETAINER, LOWER
-
120450317 RUBBER, DUSTPROOFRUBBER, DUSTPROOF
-
130450320 VALVE, GREASEVALVE, GREASE
-
140453684-067 ASM., A-ARM, LH, BLACKASM., A-ARM, LH, BLACK
-
150450249 NUTNUT
-
160453685-067 ASM., A-ARM, RH, BLACKASM., A-ARM, RH, BLACK
