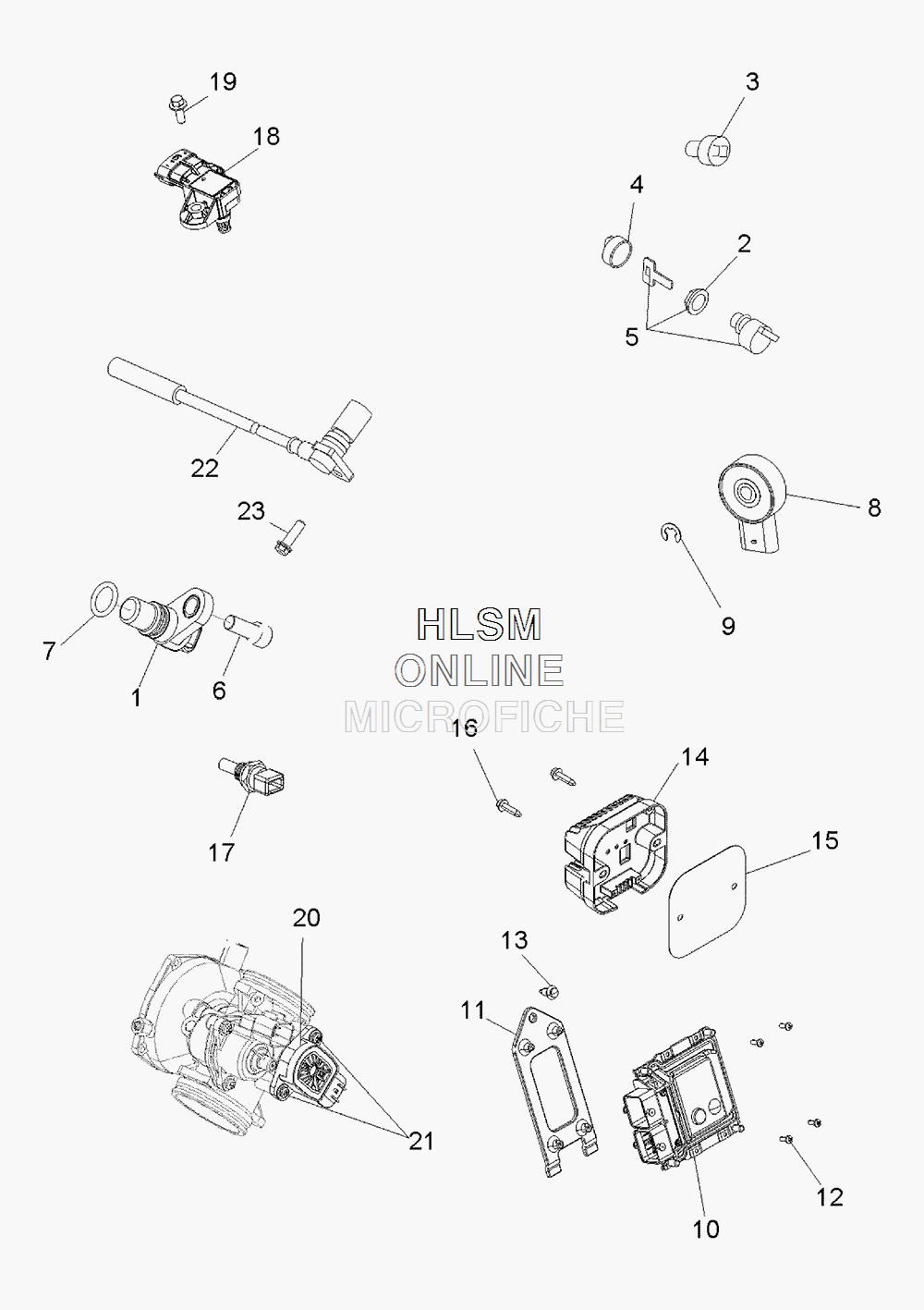

ELECTRICAL COMPONENTS для Polaris SPORTSMAN® 450 HO (VELOCITY BLUE) [A16SEA45A5] - 2016 года выпуска
-
№АртикулНазвание
-
14013908 SENSOR, SPEEDSENSOR, SPEED
-
25433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
34015069 SWITCH-BRK,1/8''-27 NPTF,SEALED ((BRAKE LIGHTS))SWITCH-BRK,1/8''-27 NPTF,SEALED ((BRAKE LIGHTS))
-
45433534 COVER, KEYCOVER, KEY
-
54012165 SWITCH, KEY, 3 POSITION ((INCL. 5,7,KEY))SWITCH, KEY, 3 POSITION ((INCL. 5,7,KEY))
-
54010278 BLANK, KEY, SERIES 2000, 2100, 6700, 6800 (SEE NOTE)BLANK, KEY, SERIES 2000, 2100, 6700, 6800 (SEE NOTE)
-
54010321 BLANK, KEY, SERIES 2200, 2300, 2700, 2800 (SEE NOTE)BLANK, KEY, SERIES 2200, 2300, 2700, 2800 (SEE NOTE)
-
63234247 SCREWSCREW
-
73234302 O-RINGO-RING
-
87661999 SWITCH, ROTARY, 2 PIN RESISTIVE ((GEAR POSITION))SWITCH, ROTARY, 2 PIN RESISTIVE ((GEAR POSITION))
-
93233834 RING, RETAININGRING, RETAINING
-
104014125 ECM-NO START,ME17ECM-NO START,ME17
-
115438708-070 MOUNT, ECM, REAR, BLACKMOUNT, ECM, REAR, BLACK
-
127519091 SCREWSCREW
-
137661855 RIVETRIVET
-
144015230 REG-3PH,50A,SERIES,HISPD,TCAPREG-3PH,50A,SERIES,HISPD,TCAP
-
155253294 COVER, VOLTAGE REGULATORCOVER, VOLTAGE REGULATOR
-
167515179 SCREWSCREW
-
174010644 SENSOR, THERMISTERSENSOR, THERMISTER
-
182411528 SENSOR, TMAPSENSOR, TMAP
-
197516603 BOLTBOLT
-
203131705 ASM., SENSORASM., SENSOR
-
213131628 SCREWSCREW
-
222411719 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
227080367 CLAMP, CABLECLAMP, CABLE
-
227542343 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
237518576 SCREWSCREW
