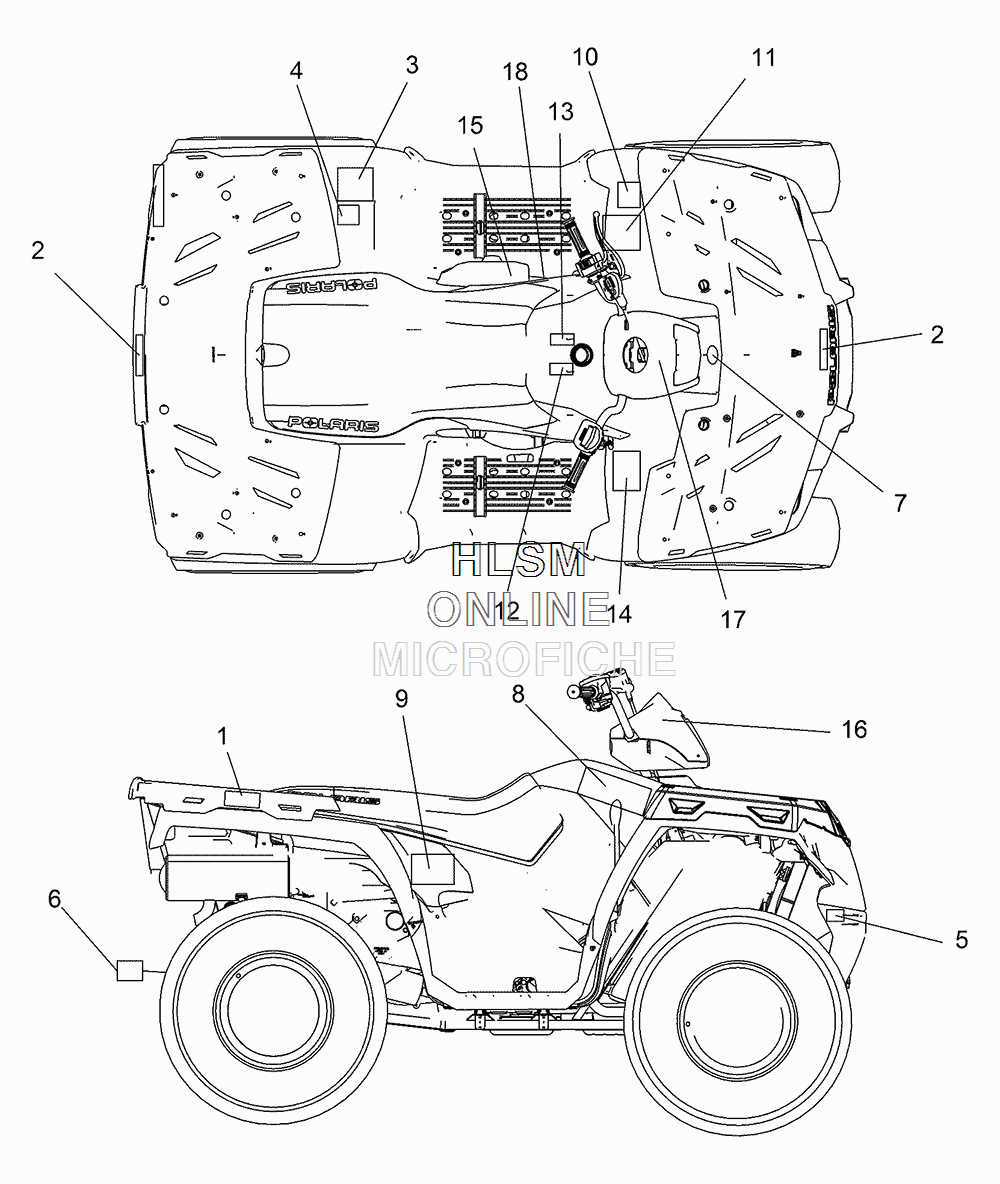

DECALS для Polaris SPORTSMAN® 570 EPS (POLARIS PURSUIT CAMO) [A16SEE57A9] - 2016 года выпуска
-
№АртикулНазвание
-
17174412 DECAL, REFLECTOR, REDDECAL, REFLECTOR, RED
-
27172572 DECAL, WARNING, FRONT AND REAR RACKDECAL, WARNING, FRONT AND REAR RACK
-
37183316 DECAL, WARNING, TIRE/LOAD, 7, 7, 485DECAL, WARNING, TIRE/LOAD, 7, 7, 485
-
47175378 DECAL, WARNING, NO PASSENGERDECAL, WARNING, NO PASSENGER
-
52670134 ASM, REFLECTOR, AMBERASM, REFLECTOR, AMBER
-
67174159 DECAL, HITCH, 1225 LBS.DECAL, HITCH, 1225 LBS.
-
77078465 LOGO, POLARIS STARLOGO, POLARIS STAR
-
87182865 DECAL, SIDE, ''SPORTSMAN 570'', LHDECAL, SIDE, ''SPORTSMAN 570'', LH
-
87182866 DECAL, SIDE, ''SPORTSMAN 570'', RHDECAL, SIDE, ''SPORTSMAN 570'', RH
-
87179679 DECAL, SIDE, SPORTSMN 570, GOLD, LEFT HAND ((A9 ONLY))DECAL, SIDE, SPORTSMN 570, GOLD, LEFT HAND ((A9 ONLY))
-
87179680 DECAL, SIDE, SPORTSMN 570, GOLD, RIGHT HAND ((A9 ONLY))DECAL, SIDE, SPORTSMN 570, GOLD, RIGHT HAND ((A9 ONLY))
-
97179943 DECAL, SIDE, ''AWD'', LHDECAL, SIDE, ''AWD'', LH
-
97179944 DECAL, SIDE, ''AWD'', RHDECAL, SIDE, ''AWD'', RH
-
97179945 DECAL, REAR, AWD, GOLD, LEFT HAND ((A9 ONLY))DECAL, REAR, AWD, GOLD, LEFT HAND ((A9 ONLY))
-
97179946 DECAL, REAR, AWD, GOLD, RIGHT HAND ((A9 ONLY))DECAL, REAR, AWD, GOLD, RIGHT HAND ((A9 ONLY))
-
107175374 DECAL, WARNING, AGE, Y16+DECAL, WARNING, AGE, Y16+
-
117175376 DECAL, WARNING, GENERAL, 1-UP ATVDECAL, WARNING, GENERAL, 1-UP ATV
-
127175485 DECAL, CAUTION, 4X4, AWDDECAL, CAUTION, 4X4, AWD
-
137175486 DECAL, WARNING, OVERRIDEDECAL, WARNING, OVERRIDE
-
147175511 DECAL, WARNING, DISC.DECAL, WARNING, DISC.
-
157180088 DECAL, WARNING, CLUTCH COVERDECAL, WARNING, CLUTCH COVER
-
167180176 DECAL, POD, DOHCDECAL, POD, DOHC
-
167180177 DECAL, POD, DOHC, GOLD ((A9 ONLY))DECAL, POD, DOHC, GOLD ((A9 ONLY))
-
177175528 DECAL-EPS ((EPS ONLY))DECAL-EPS ((EPS ONLY))
-
187180934 DECAL-CLUTCH COVER,EBS ((EPS ONLY))DECAL-CLUTCH COVER,EBS ((EPS ONLY))
Все узлы модели:
- A-ARMS- MID DRIVE
- AIR INTAKE SYSTEM
- BATTERY
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - PEDAL W/MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE LINES
- BUMPER - FRONT
- CAB - FRONT W/ SIDE PANELS
- CAB - FRONT W/ STORAGE
- CAB - REAR - SEAT W/FOOTWELLS
- CAM CHAIN W/ SPROCKET
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH COVER
- CONTROLS- THROTTLE ASSY/CABLE
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON AND BALANCE SHAFT
- CYLINDER
- CYLINDER HEAD - CAM - VALVES
- • DECALS
- DRIVESHAFT - FRONT
- DRIVESHAFT - REAR
- ELECTRICAL - BULBS
- ELECTRICAL - WIRING HARNESS- MAIN
- ELECTRICAL COMPONENTS
- ENGINE - LONG BLOCK
- ENGINE - MOUNTING
- EXHAUST SYSTEM
- FRAME
- FUEL TANK
- GAUGES AND INDICATOR
- GEAR SELECTOR
- GEARCASE
- GEARCASE - FRONT
- GEARCASE - FRONT - MOUNTING
- GEARCASE - MAIN - MOUNTING
- HANDLEBAR - CONTROL ASSY.
- HEADLIGHT
- HEADLIGHT POD
- IGNITION COIL W/ WIRE AND SPARK PLUG
- MANUAL - OWNERS
- OIL FILTER AND DIPSTICK
- OIL PUMP
- PROP SHAFT - FRONT
- RACK - REAR
- STARTING MOTOR
- STATOR COVER AND FLYWHEEL
- STEERING ASM. - EPS
- STEERING POST
- STORAGE BOX - REAR
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- SUSPENSION - TORSION BAR
- TAILLIGHT
- THERMOSTAT W/ COVER
- THROTTLE BODY W/ FUEL RAIL
- TOOL KIT
- VALVE COVER
- WATER PUMP IMPELLER W/ COVER
- WHEEL - FRONT W/BRAKE DISK
- WHEEL - REAR W/BRAKE DISK
