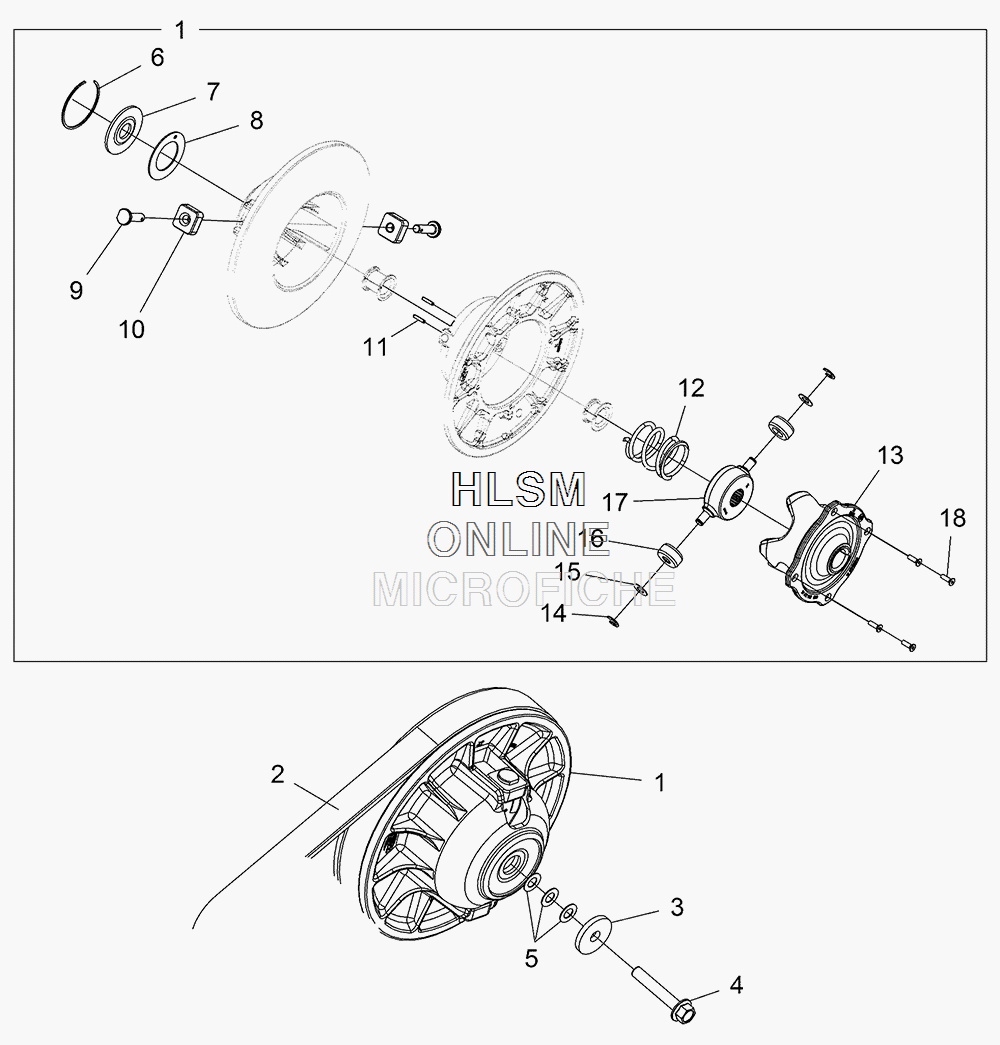

CLUTCH - SECONDARY для Polaris SPORTSMAN® 570 EPS (SAGE GREEN) [A16SEE57A1] - 2016 года выпуска
-
№АртикулНазвание
-
11323296 ASM-CLUTCH,DRIVEN,BOSS,TIEDASM-CLUTCH,DRIVEN,BOSS,TIED
-
23211113 BELT-DRIVE,EBSBELT-DRIVE,EBS
-
35137414 WASHER-1.50 X 0.433 X.187 FL-YWASHER-1.50 X 0.433 X.187 FL-Y
-
47519210 SCR-HXFL-M10X1.25X60,ZODSCR-HXFL-M10X1.25X60,ZOD
-
57556580 WASHER-0.75X.400X.03,FL-YWASHER-0.75X.400X.03,FL-Y
-
63235859 RING, RETAININGRING, RETAINING
-
73235860 WASHER, OFFSETWASHER, OFFSET
-
83235861 SHIM, 2.040 OD X 1.63 IDSHIM, 2.040 OD X 1.63 ID
-
93234201 PIN, ROLLERPIN, ROLLER
-
103514926 PUCK, SQUARE TIEDPUCK, SQUARE TIED
-
113234202 PIN, SLOTTEDPIN, SLOTTED
-
127044509 SPRINGSPRING
-
133235784 CAMCAM
-
147710523 RING, ERING, E
-
157556226 WASHERWASHER
-
163514929 ROLLERROLLER
-
173235862 SPIDERSPIDER
-
183234754 SCREWSCREW
