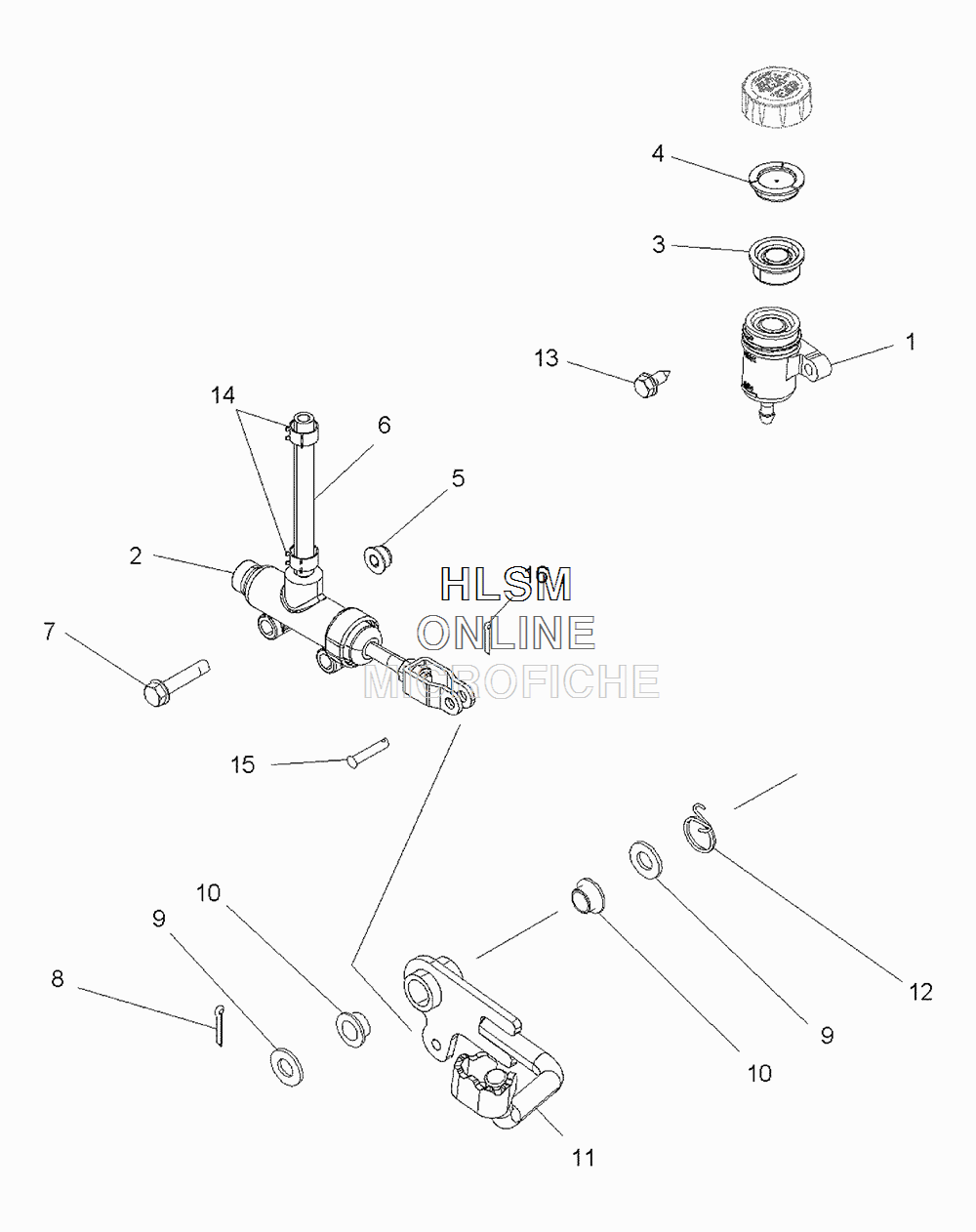

BRAKE - PEDAL W/MASTER CYLINDER для Polaris SPORTSMAN® 570 SP (TITANIUM MATTE METALLIC) [A16SHE57AM] - 2016 года выпуска
-
№АртикулНазвание
-
11911224 ASM., RESERVOIR, BRAKE, REAR ((INCL. CAP, 3, 4))ASM., RESERVOIR, BRAKE, REAR ((INCL. CAP, 3, 4))
-
21912301 ASM., MASTER CYLINDER, FOOT ((INCL. HOSE, CLAMPS))ASM., MASTER CYLINDER, FOOT ((INCL. HOSE, CLAMPS))
-
35413262 DIAPHRAGM, RESERVOIR, BRAKEDIAPHRAGM, RESERVOIR, BRAKE
-
45437041 RING, RESERVOIR, BRAKERING, RESERVOIR, BRAKE
-
57542153 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
61911267-660 HOSE, RESERVOIRHOSE, RESERVOIR
-
77512126 BOLTBOLT
-
87661401 PIN, COTTERPIN, COTTER
-
97555919 WASHERWASHER
-
105433189 BUSHING, PIVOT, PEDALBUSHING, PIVOT, PEDAL
-
111911657-067 PEDAL, BRAKE, BLACKPEDAL, BRAKE, BLACK
-
127041750 SPRING, TORSIONSPRING, TORSION
-
137517312 SCREWSCREW
-
147080003 CLAMP, HOSECLAMP, HOSE
-
157661830 PIN, CLEVISPIN, CLEVIS
-
167661900 PIN, COTTERPIN, COTTER
