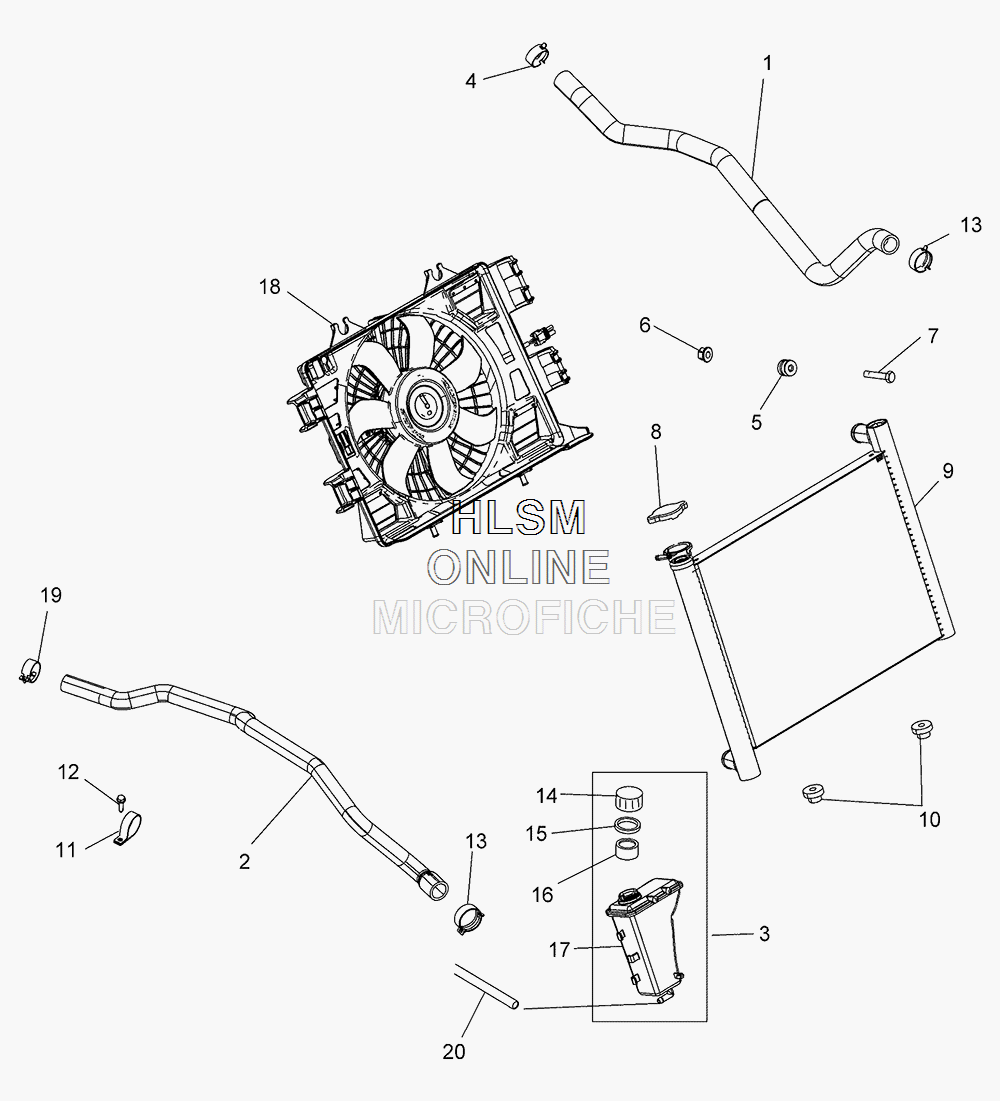

COOLING SYSTEM для Polaris SPORTSMAN® Touring XP 1000 LIMITED (PEARL WHITE) [A16SYE95AP] - 2016 года выпуска
-
№АртикулНазвание
-
15414505 HOSE, RADIATOR, ENGINE OUT ((AP))HOSE, RADIATOR, ENGINE OUT ((AP))
-
25414391 HOSE, RADIATOR, ENGINE INHOSE, RADIATOR, ENGINE IN
-
31240406 ASM., BOTTLE, COOLANT RECOVERY ((INCL. 14-17,20))ASM., BOTTLE, COOLANT RECOVERY ((INCL. 14-17,20))
-
47080844 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
55413509 ASM., GROMMET AND INSERTASM., GROMMET AND INSERT
-
67547274 NUT, NYLOKNUT, NYLOK
-
77519249 BOLT, CARRIAGEBOLT, CARRIAGE
-
81240466 CAP, PRESSURECAP, PRESSURE
-
91240702 ASM., RADIATOR ((INCL. 3,5,8-10, 18))ASM., RADIATOR ((INCL. 3,5,8-10, 18))
-
91240706 RADIATORRADIATOR
-
105413510 GROMMET, RADIATOR MOUNT, LOWERGROMMET, RADIATOR MOUNT, LOWER
-
117080851 CLAMP, HOSECLAMP, HOSE
-
127518513 SCREWSCREW
-
137080843 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
145430743 CAP, OVERFLOW BOTTLE, DRILLEDCAP, OVERFLOW BOTTLE, DRILLED
-
155810279 GASKET, OVERFLOW CAPGASKET, OVERFLOW CAP
-
165433774 PLUG, CAPPLUG, CAP
-
175437257 BOTTLE, COOLANT RECOVERYBOTTLE, COOLANT RECOVERY
-
182412286 FANFAN
-
197081192 CLAMP, HOSE, WORM DRIVECLAMP, HOSE, WORM DRIVE
-
208450128-27 LINE, COOLANTLINE, COOLANT
