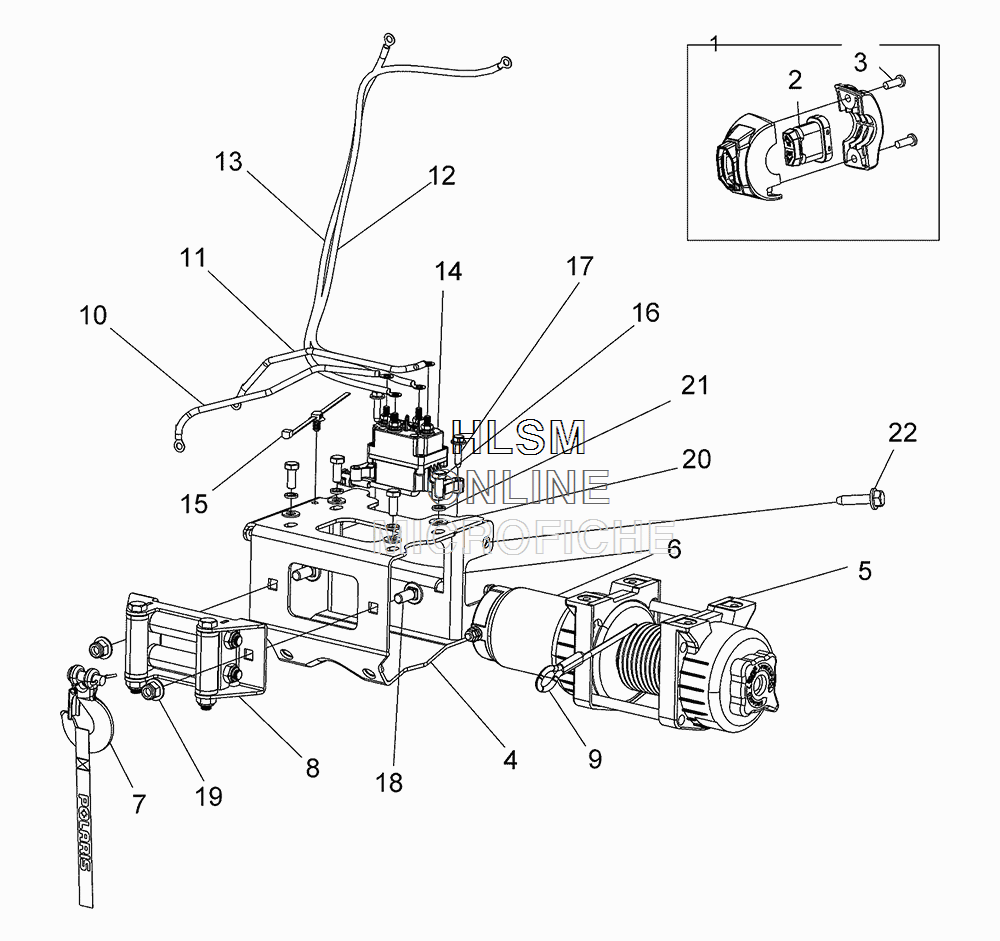

WINCH для Polaris SPORTSMAN XP® 1000 (HUNTER EDITION) [A16SXD95A9] - 2016 года выпуска
-
№АртикулНазвание
-
12205636 KIT, WINCH, SWITCHKIT, WINCH, SWITCH
-
22412948 SWITCH, WINCH, ATVSWITCH, WINCH, ATV
-
37518238 SCREWSCREW
-
41020934-521 BRACKET, WINCH, BLACK ENGINE WRINKLEBRACKET, WINCH, BLACK ENGINE WRINKLE
-
52204631 WINCH, POLARIS, 2.5WINCH, POLARIS, 2.5
-
62205834 KIT, SERVICE, WINCH + BRACKET, 25KIT, SERVICE, WINCH + BRACKET, 25
-
72411836 HOOK, LATCHHOOK, LATCH
-
82411848 ROLLER, FAIRLEADROLLER, FAIRLEAD
-
92878890 CABLE, WINCH, STEELCABLE, WINCH, STEEL
-
104013468-300 CABLE, WINCH, YELLOW, 6 GACABLE, WINCH, YELLOW, 6 GA
-
114013469-300 CABLE, WINCH, BLUE, 6 GACABLE, WINCH, BLUE, 6 GA
-
124013470-610 CABLE, POWER, WINCH, BLACK, 6 GACABLE, POWER, WINCH, BLACK, 6 GA
-
134013471-610 CABLE, POWER, WINCH, RED, 6 GACABLE, POWER, WINCH, RED, 6 GA
-
144015095 CONTACTOR, WINCHCONTACTOR, WINCH
-
157081496 CLIP, ROUTINGCLIP, ROUTING
-
167518097 SCREWSCREW
-
177519342 SCREWSCREW
-
187519372 SCREWSCREW
-
197547423 NUT, NYLOCKNUT, NYLOCK
-
207555770 WASHERWASHER
-
217556111 WASHER, LOCKWASHER, LOCK
-
227518514 BOLTBOLT
