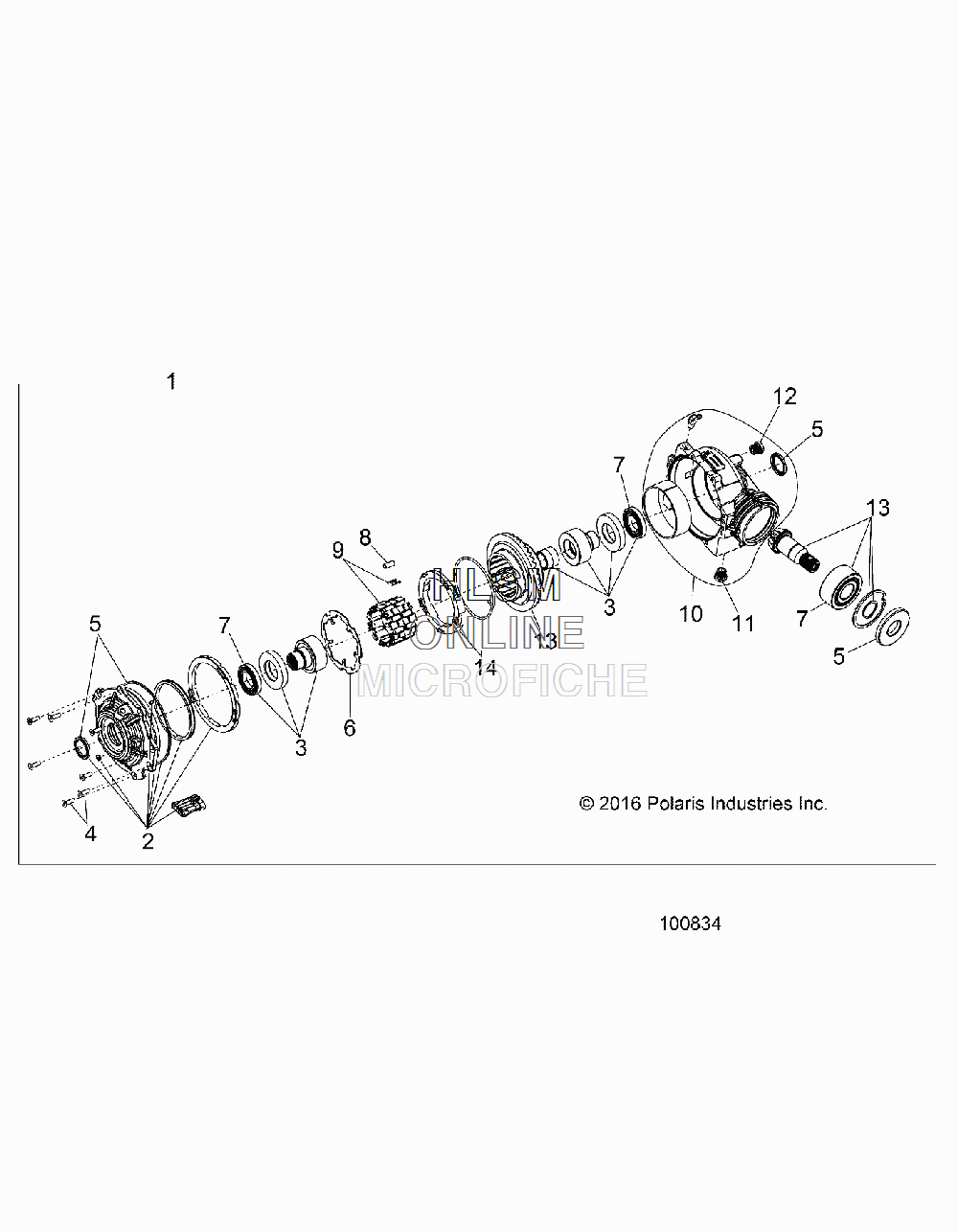

GEARCASE - INTERNAL COMPONENTS - FRONT для Polaris ACE 500 SOHC [A17DAA50A7] - 2017 года выпуска

№

Артикул

Название
1

1333750 ASM., GEARCASE, FRONT

ASM., GEARCASE, FRONT

260 ₽
2

3235168 ASM., COVER OUTPUT W/O-RING, DOWEL PIN, OIL SEAL, COVER, CONNECTOR ASSY, BACKLASH SPACER, 4WD COIL, GROMMET & HEAT SHRINK TUBING

ASM., COVER OUTPUT W/O-RING, DOWEL PIN, OIL SEAL, COVER, CONNECTOR ASSY, BACKLASH SPACER, 4WD COIL, GROMMET & HEAT SHRINK TUBING

91 520 ₽
3

3235169 KIT, HUB ASSY W/BUSHING, HUB SUB. ASSY & NYLON SPACER

KIT, HUB ASSY W/BUSHING, HUB SUB. ASSY & NYLON SPACER

83 200 ₽
4

3235170 KIT, FASTENER W/ALL FASTENERS

KIT, FASTENER W/ALL FASTENERS

4 370 ₽
5

3235171 KIT, SEAL REPAIR W/ALL SEALS

KIT, SEAL REPAIR W/ALL SEALS

16 640 ₽
6

3235485 PLATE, ARMATURE

PLATE, ARMATURE

21 840 ₽
7

3235174 BEARING, PINION W/ALL BEARINGS

BEARING, PINION W/ALL BEARINGS

18 720 ₽
8

3235624 KIT, ROLLER W/COMPLETE SET OF ROLLER

KIT, ROLLER W/COMPLETE SET OF ROLLER

1 870 ₽
9

3235917 ASSY, ROLL CAGE, ZINC CAGE AND CLIPS

ASSY, ROLL CAGE, ZINC CAGE AND CLIPS

33 660 ₽
10

3235440 KIT, GEARCASE ASSY W/HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG & DRAIN PLUG

KIT, GEARCASE ASSY W/HOSE FITTING, BUSHING, SEAL, GEARCASE, FILL PLUG & DRAIN PLUG

118 460 ₽
11

2203738 PLUG, DRAIN

PLUG, DRAIN

5 830 ₽
12

2203739 PLUG, FILL

PLUG, FILL

5 830 ₽
13

3235711 KIT, RING & PINION W/RING GEAR ASSY, PINION, BEARING, INTERNAL RING & SHAFT RING

KIT, RING & PINION W/RING GEAR ASSY, PINION, BEARING, INTERNAL RING & SHAFT RING

129 230 ₽
14

3235712 KIT, SPRING W/TORSION SPRING & SPRINT RETAINER ASSY

KIT, SPRING W/TORSION SPRING & SPRINT RETAINER ASSY

6 870 ₽
