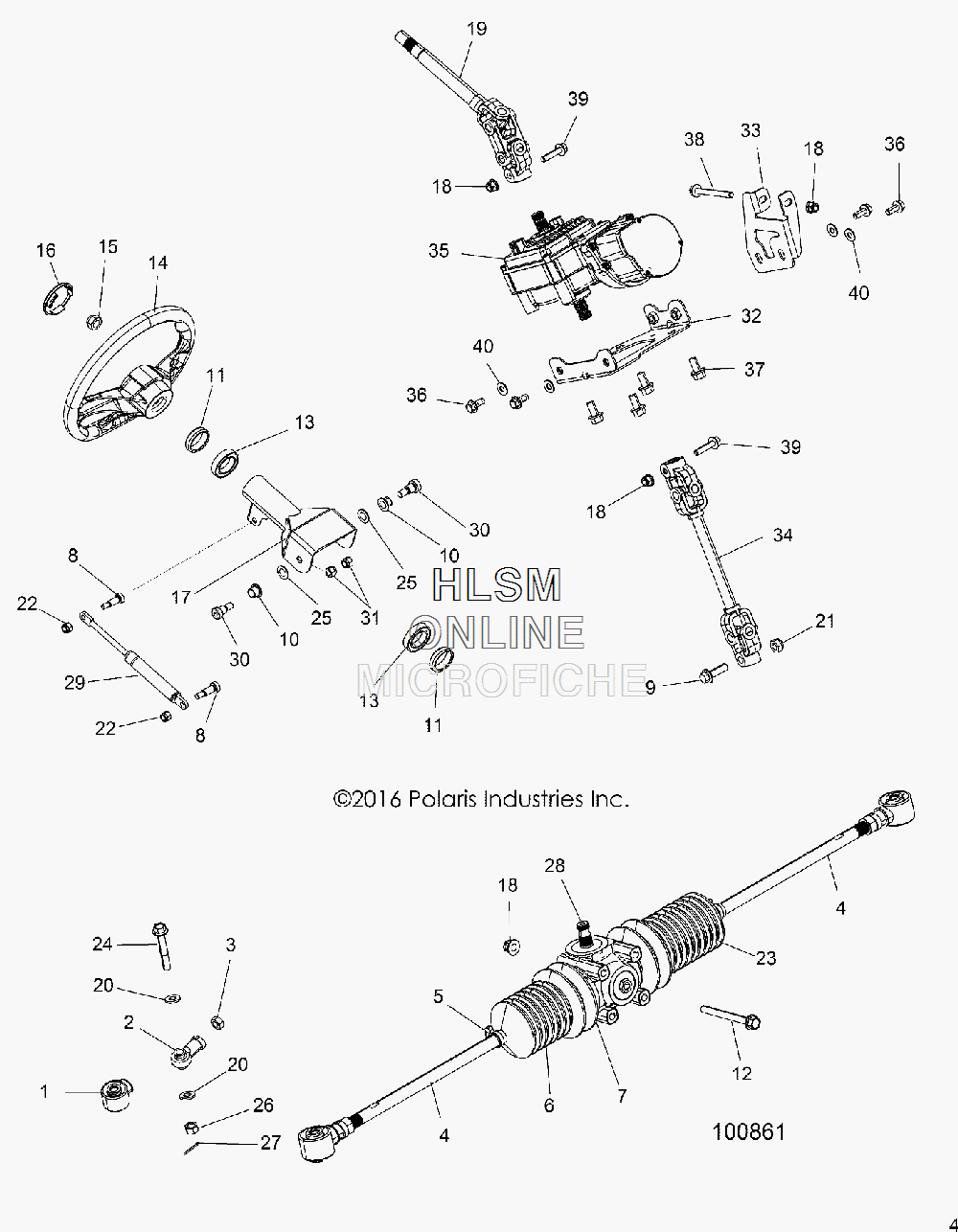

STEERING ASM. для Polaris ACE 570 HD EFI [A17DAH57A5] - 2017 года выпуска
-
№АртикулНазвание
-
27061189 ROD ENDROD END
-
32205058 NUT, JAM, LHNUT, JAM, LH
-
57080978 CLAMP, BOOT, SMALLCLAMP, BOOT, SMALL
-
65412012 BOOT, STEERING RACKBOOT, STEERING RACK
-
77080979 CLAMP, BOOT, LARGECLAMP, BOOT, LARGE
-
87518786 BOLT, SHOULDERBOLT, SHOULDER
-
97518644 SCREWSCREW
-
105439154 BUSHING, TILT STEERINGBUSHING, TILT STEERING
-
117556675 BUSHING, STEERINGBUSHING, STEERING
-
127519217 SCREWSCREW
-
133514686 BEARING, STEERINGBEARING, STEERING
-
141824014 WHEEL, STEERINGWHEEL, STEERING
-
157547506 NUTNUT
-
165450255-070 CAP-STEERING WHEELCAP-STEERING WHEEL
-
171022896-458 ASM-PIVOT TUBE,M.BLK [INCL. 13]ASM-PIVOT TUBE,M.BLK [INCL. 13]
-
187547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
191824286 SHAFT, STEERING, EPS, UPPERSHAFT, STEERING, EPS, UPPER
-
207556099 WASHER, FLATWASHER, FLAT
-
217547385 NUT, NYLOKNUT, NYLOK
-
227546703 NUT, NYLOKNUT, NYLOK
-
235412012 BOOT, STEERING RACKBOOT, STEERING RACK
-
247519854 BOLTBOLT
-
257555919 WASHERWASHER
-
267547333 NUT, FLANGENUT, FLANGE
-
277661203 PIN, COTTERPIN, COTTER
-
281824540 ASM-GEARBOX,STEERING,17T [INCL. 2-7,23]ASM-GEARBOX,STEERING,17T [INCL. 2-7,23]
-
297044699 ASM., SHOCK, OIL LOCKINGASM., SHOCK, OIL LOCKING
-
307519355 SCREWSCREW
-
317547442 NUT, NYLOKNUT, NYLOK
-
321020912-329 BRACKET, BASE, EPSBRACKET, BASE, EPS
-
335260034-329 BRACKET, EPS, LHBRACKET, EPS, LH
-
341824549 SHAFT-STEERING,EPS,LOWER,17TSHAFT-STEERING,EPS,LOWER,17T
-
352413701 ASM-POWER STEERINGASM-POWER STEERING
-
367518450 BOLTBOLT
-
377518558 BOLTBOLT
-
387518955 SCREWSCREW
-
397519052 SCREWSCREW
-
407555960 WASHERWASHER
