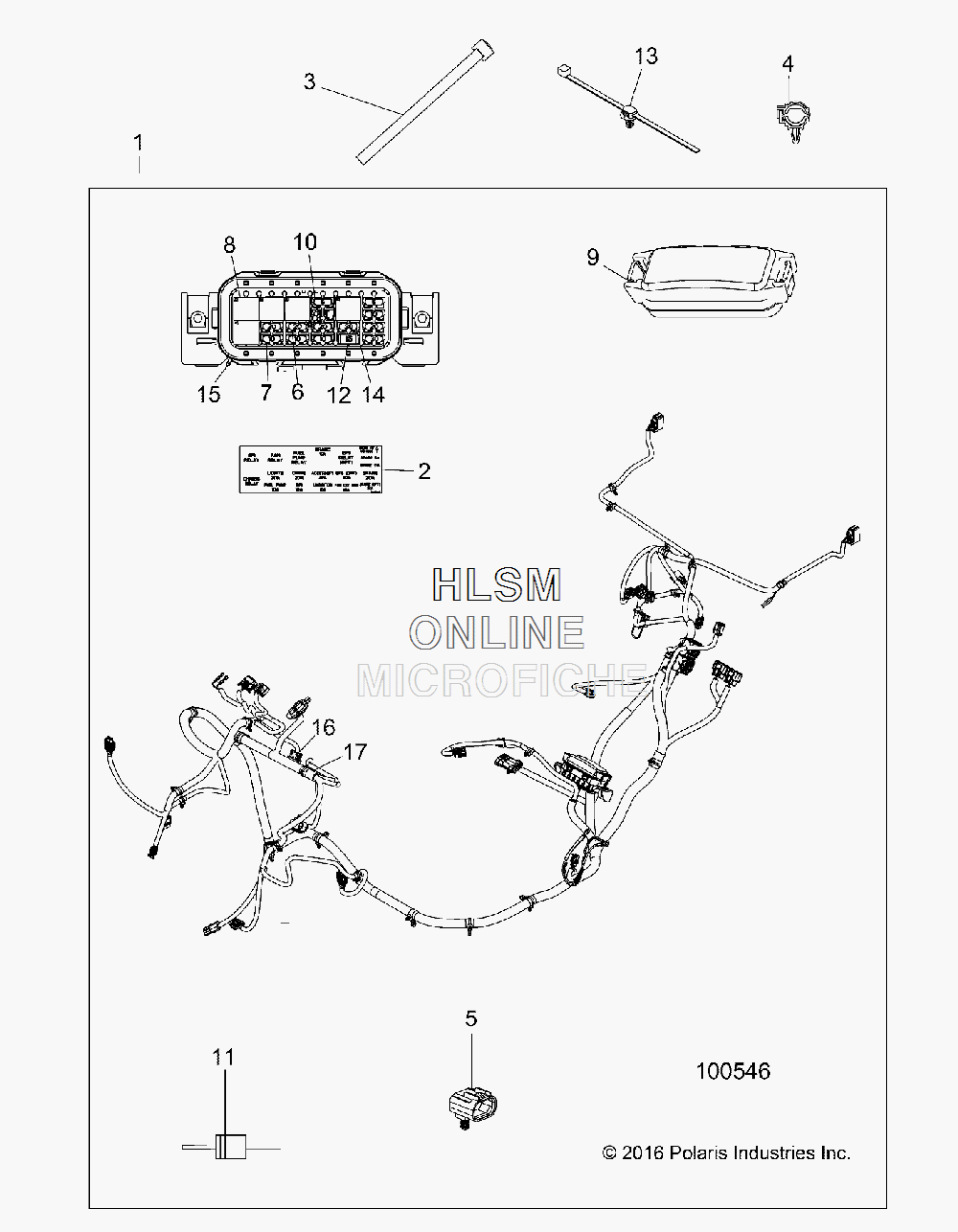

WIRE HARNESS для Polaris ACE 570 SP [A17DAE57AM] - 2017 года выпуска
-
№АртикулНазвание
-
12413028 HARNESS-CHASSIS,ACE ETC PS [TO DATE 10/17/16]HARNESS-CHASSIS,ACE ETC PS [TO DATE 10/17/16]
-
12413861 HARNESS-CHASSIS,ACE ETC PS [FROM DATE 10/17/16 AND ABOVE]HARNESS-CHASSIS,ACE ETC PS [FROM DATE 10/17/16 AND ABOVE]
-
27182082 LABEL-FUSE BOXLABEL-FUSE BOX
-
37080138 CABLE TIE 7"CABLE TIE 7"
-
37080761 STRAP-PANDUIT,14"STRAP-PANDUIT,14"
-
44020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
54012170 COVER, DIAGNOSTIC W/CLIPCOVER, DIAGNOSTIC W/CLIP
-
62434017 FUSE, PARK, 20 AMPFUSE, PARK, 20 AMP
-
72434016 FUSE, IGNITION, 10 AMPFUSE, IGNITION, 10 AMP
-
84011283 RELAY, SEALEDRELAY, SEALED
-
94015011 COVER, FUSEBOXCOVER, FUSEBOX
-
104011652 FUSE, 5AFUSE, 5A
-
112411035 DIODE, 6 AMP W/TERMINALSDIODE, 6 AMP W/TERMINALS
-
124011406 BREAKER, 15 AMPBREAKER, 15 AMP
-
137081496 CLIP, ROUTINGCLIP, ROUTING
-
142434015 FUSE, MAIN, 30 AMPFUSE, MAIN, 30 AMP
-
154015056 FUSEBOXFUSEBOX
-
164014236 CAP, EPS POWERCAP, EPS POWER
-
174014235 CAP, EPS SIGNALCAP, EPS SIGNAL
