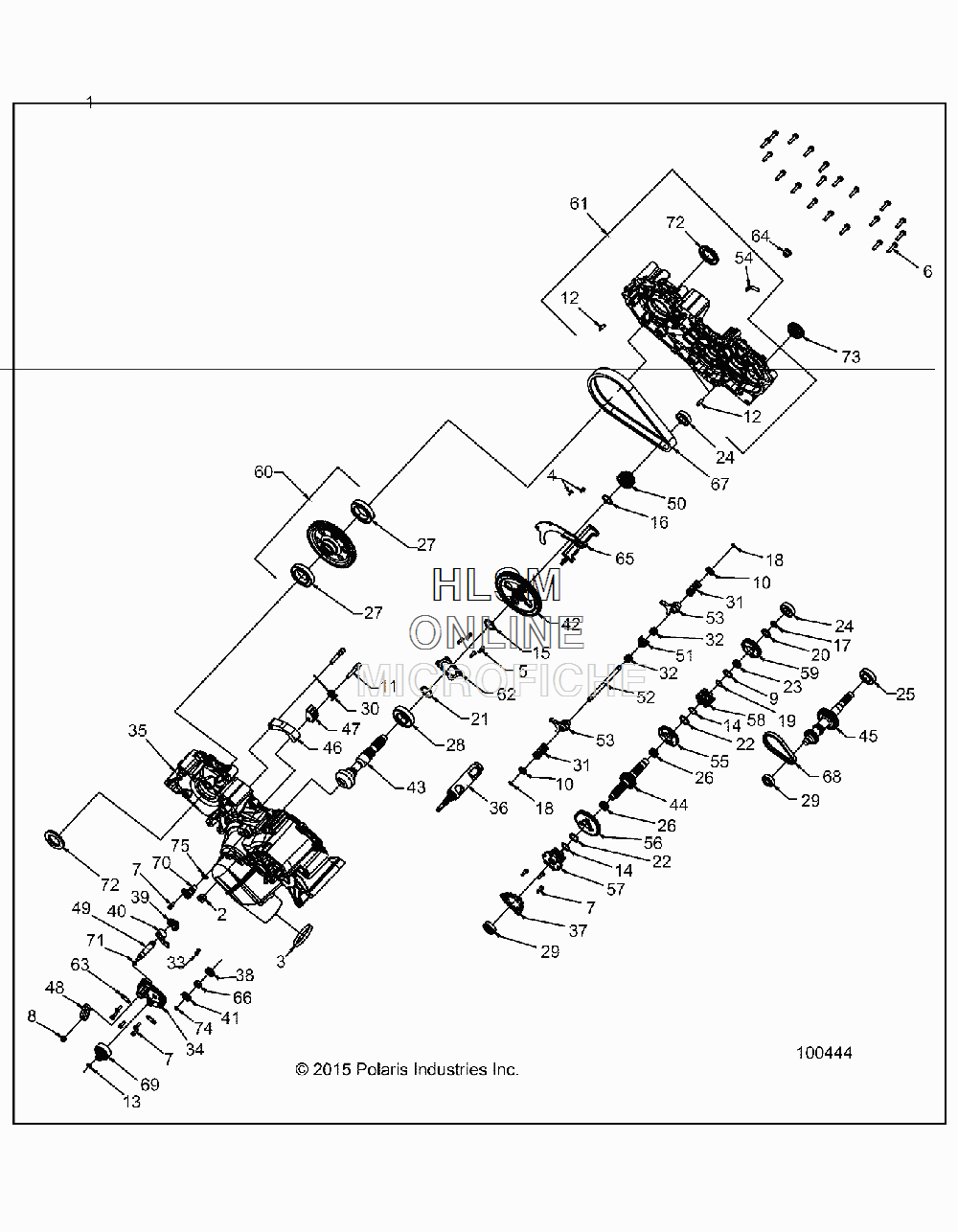

GEARCASE для Polaris FARMHAND 450 HD 2X4 [17SAH50A5] - 2017 года выпуска
-
№АртикулНазвание
-
11333609 ASM-TRANSMISSION,570,2X4,SNGLASM-TRANSMISSION,570,2X4,SNGL
-
23234529 PLUG, 3/4-16, HOLLOW HEXPLUG, 3/4-16, HOLLOW HEX
-
33022301 PLUG, EXPANSION 80MM X 10MMPLUG, EXPANSION 80MM X 10MM
-
43233749 SCREW, TAPPING TORX, PH 8-32 X.50SCREW, TAPPING TORX, PH 8-32 X.50
-
53234086 SCREW, TORX, PAN HD 1/4-20 X .75SCREW, TORX, PAN HD 1/4-20 X .75
-
63234114 SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25
-
73234247 SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75
-
83233961 NUT, LOCK HEX FLANGE, NYLON 5/16-24NUT, LOCK HEX FLANGE, NYLON 5/16-24
-
93233855 WASHER, 1.250X.876X.05WASHER, 1.250X.876X.05
-
103234091 WASHER, CUPWASHER, CUP
-
113233432 PIN, TENSIONERPIN, TENSIONER
-
123234244 PIN, 5/16 X 1.00PIN, 5/16 X 1.00
-
133233834 RING, SNAPRING, SNAP
-
143233306 RING, RETAININGRING, RETAINING
-
153233364 RING, RETAINING, SHAFT, DIA. 1.375RING, RETAINING, SHAFT, DIA. 1.375
-
163233699 RING RTNG, IRR 7200-118RING RTNG, IRR 7200-118
-
173234067 RING, RETAINING BASIC, EXTERNAL, .787 SHAFTRING, RETAINING BASIC, EXTERNAL, .787 SHAFT
-
183234090 RING, RETAINING BASIC, EXTERNAL .428RING, RETAINING BASIC, EXTERNAL .428
-
193234336 RING, RETAINING, BASIC EXTERNAL DIA .84RING, RETAINING, BASIC EXTERNAL DIA .84
-
203233176 WASHER THRUST , 1.270X.793X.065WASHER THRUST , 1.270X.793X.065
-
213234271 SHIM, 1.700X1.385SHIM, 1.700X1.385
-
223234248 WASHER, THRUST 1.300X.995X.065WASHER, THRUST 1.300X.995X.065
-
233233009 BEARING, NEEDLE, CAGE ASSYBEARING, NEEDLE, CAGE ASSY
-
243233018 BEARING, BALL 6204 C3 20X47X14BEARING, BALL 6204 C3 20X47X14
-
253233019 BEARING, BALL 6205 C3 25X52X15BEARING, BALL 6205 C3 25X52X15
-
263233103 BEARING, NEEDLE 25X29X10BEARING, NEEDLE 25X29X10
-
273233268 BEARING, BALL 6010 C3 50X80X10BEARING, BALL 6010 C3 50X80X10
-
283234065 BEARING, BALL 6207 C3 35X72X17BEARING, BALL 6207 C3 35X72X17
-
293234274 BEARING, BALL 6203 C3 17X40X12BEARING, BALL 6203 C3 17X40X12
-
303233431 TORSION SPRINGTORSION SPRING
-
313234078 SPRING, COMPRESSION .92 O.D. X 2.000SPRING, COMPRESSION .92 O.D. X 2.000
-
323234089 SPRING, COMPRESSION .46 I.D. X .73SPRING, COMPRESSION .46 I.D. X .73
-
333234578 SPRING, COMPRESSION, DETENTSPRING, COMPRESSION, DETENT
-
343234188 COVER, SECTOR GEARS, MACHCOVER, SECTOR GEARS, MACH
-
353235606 CASE, RH, MACHCASE, RH, MACH
-
363234360 DRUM, SHIFT MACHDRUM, SHIFT MACH
-
373233915 PLATE, PARK, 12-FACEPLATE, PARK, 12-FACE
-
383233839 GEAR, SECTOR 16TGEAR, SECTOR 16T
-
393233832 GEAR, SECTOR 31TGEAR, SECTOR 31T
-
403233829 PAWL, DETENTPAWL, DETENT
-
413233909 STAR, DETENTSTAR, DETENT
-
423234062 GEAR OUTPUT 91T, HCRGEAR OUTPUT 91T, HCR
-
433234263 PINION, 13T, CENTER DRIVEPINION, 13T, CENTER DRIVE
-
443234280 SHAFT, REVERSE 26TSHAFT, REVERSE 26T
-
453235526 SHAFT, 39T INPUT HELICALSHAFT, 39T INPUT HELICAL
-
463233433 SHOE, CHAIN TENSIONERSHOE, CHAIN TENSIONER
-
473233434 CAM, CHAIN, TENSIONERCAM, CHAIN, TENSIONER
-
483234584 BELLCRANK, .510 HOLE, 92 ~BELLCRANK, .510 HOLE, 92 ~
-
493233831 SHAFT, SHIFTSHAFT, SHIFT
-
503234060 SPROCKET, 19TSPROCKET, 19T
-
513234073 COLLAR, SHIFTCOLLAR, SHIFT
-
523234079 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
533234077 FORK, SHIFTFORK, SHIFT
-
543234230 TUBE, VENT 90~ 1/4' HOSETUBE, VENT 90~ 1/4' HOSE
-
553234290 SPROCKET 38T, 6-FACESPROCKET 38T, 6-FACE
-
563234291 GEAR, 33T, 6-FACEGEAR, 33T, 6-FACE
-
573234257 DOG, L/PDOG, L/P
-
583234258 ENGAGEMENT DOG, 6-FACEENGAGEMENT DOG, 6-FACE
-
593235255 GEAR, 35T HELICALGEAR, 35T HELICAL
-
603235604 SUB-ASSY SHAFT, 59T FINAL, OUTPUT WITH BEARINGSUB-ASSY SHAFT, 59T FINAL, OUTPUT WITH BEARING
-
613235605 SUBASSEMBLY, LH COVER, PDS EAGLESUBASSEMBLY, LH COVER, PDS EAGLE
-
623234063 COVER, BEARING, CENTER DRIVECOVER, BEARING, CENTER DRIVE
-
633235350 BRACKET, WIRE HARNESSBRACKET, WIRE HARNESS
-
643233794 PLUG, 3/4-16, HOLLOW HEXPLUG, 3/4-16, HOLLOW HEX
-
653234061 DEFLECTOR, OILDEFLECTOR, OIL
-
663235243 SPACERSPACER
-
673234057 CHAIN SILENT, 17 WIDE X 1.0 X 86PCHAIN SILENT, 17 WIDE X 1.0 X 86P
-
683234264 CHAIN, .25P X .40W X 50LCHAIN, .25P X .40W X 50L
-
697661999 SWITCH, ROTARY , 2 PIN RESISTIVESWITCH, ROTARY , 2 PIN RESISTIVE
-
704013908 SENSOR, SPEEDSENSOR, SPEED
-
713233869 O-RING, -014O-RING, -014
-
723234300 SEAL, TRIPLE LIP, 40X70X7SEAL, TRIPLE LIP, 40X70X7
-
733234851 SEAL, DUAL LIP, 25 X 47 VITONSEAL, DUAL LIP, 25 X 47 VITON
-
743233076 O-RING, 2-012O-RING, 2-012
-
753234302 O-RINGO-RING
