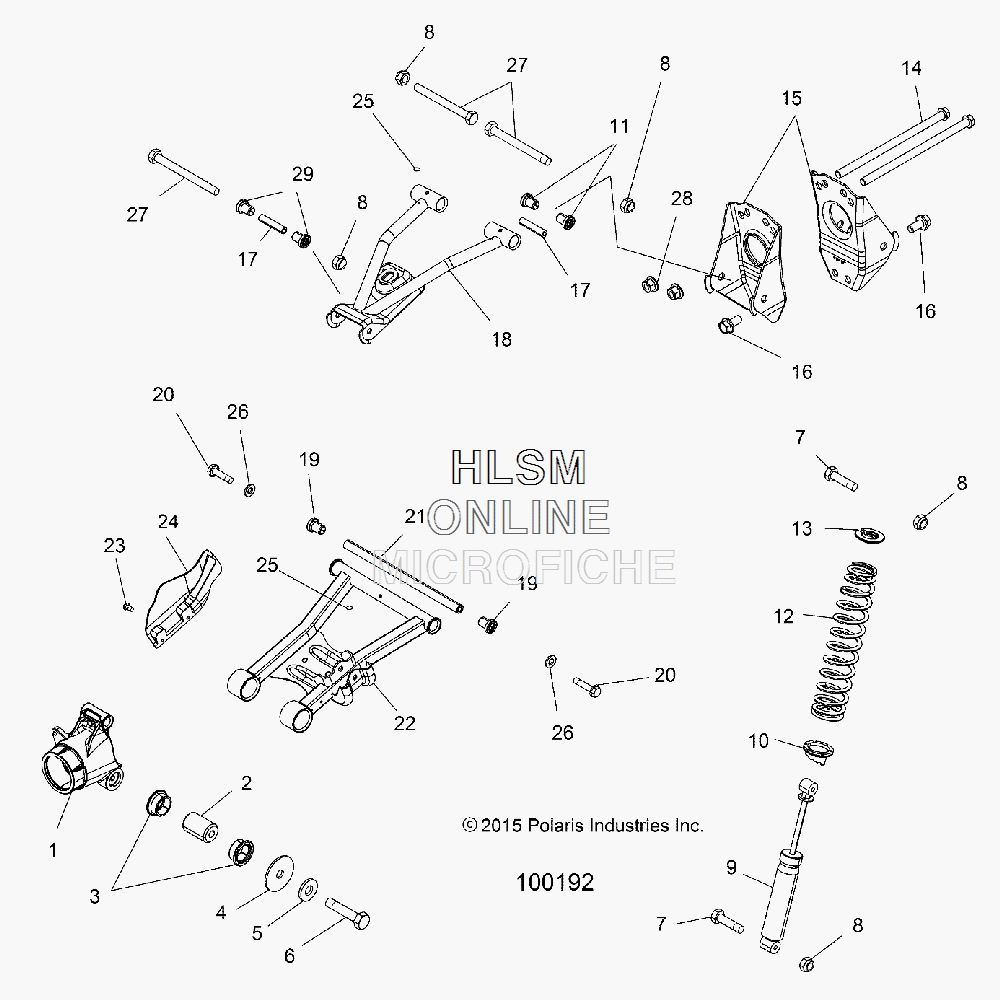

SUSPENSION - REAR для Polaris FARMHAND 450 HD 2X4 [17SAH50A5] - 2017 года выпуска
-
№АртикулНазвание
-
15135563 CARRIER, WHEEL BEARINGCARRIER, WHEEL BEARING
-
25632291 BUSHING, BEARING CARRIERBUSHING, BEARING CARRIER
-
35438902 BUSHING, CONTROL, LOWER, BLACKBUSHING, CONTROL, LOWER, BLACK
-
47555740 WASHER, FLATWASHER, FLAT
-
57552614 WASHER, LOCKWASHER, LOCK
-
67517873 BOLTBOLT
-
77515415 SCREWSCREW
-
87542439 NUT, NYLOKNUT, NYLOK
-
97043100 SHOCK, REARSHOCK, REAR
-
111543326 ASM-BUSHING,HD,W/SEAL,6.75 FLGASM-BUSHING,HD,W/SEAL,6.75 FLG
-
135251753 RETAINER, SPRINGRETAINER, SPRING
-
147518365 SCREWSCREW
-
155254267-329 BRACKET, CONTROL ARM, PIVOT, BLACKBRACKET, CONTROL ARM, PIVOT, BLACK
-
155254267-329 BRACKET, CONTROL ARM, PIVOT, BLACKBRACKET, CONTROL ARM, PIVOT, BLACK
-
167517632 SCREWSCREW
-
175020826 SHAFT, A-ARM, SHORTSHAFT, A-ARM, SHORT
-
181017747-067 ARM, CONTROL, UPPER, BLACK, LHARM, CONTROL, UPPER, BLACK, LH
-
181017748-067 ARM, CONTROL, UPPER, BLACK, RHARM, CONTROL, UPPER, BLACK, RH
-
191543326 ASM-BUSHING,HD,W/SEAL,6.75 FLGASM-BUSHING,HD,W/SEAL,6.75 FLG
-
207520340 SCREWSCREW
-
215139929 SHAFT-A-ARM,C-BORESHAFT-A-ARM,C-BORE
-
221015888-067 CONTROL, LOWER, BLACK, LHCONTROL, LOWER, BLACK, LH
-
221015889-067 CONTROL, LOWER, BLACK, RHCONTROL, LOWER, BLACK, RH
-
237512084 SCREWSCREW
-
245435008-070 SHIELD, CV REAR, BLACK, LHSHIELD, CV REAR, BLACK, LH
-
245435009-070 SHIELD, CV REAR, BLACK, RHSHIELD, CV REAR, BLACK, RH
-
257080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
267556153 WASHERWASHER
-
277515472 BOLTBOLT
-
287547180 NUT, FLANGENUT, FLANGE
-
295438895 BUSHING-A-ARM-SHORT,GRAYBUSHING-A-ARM-SHORT,GRAY
