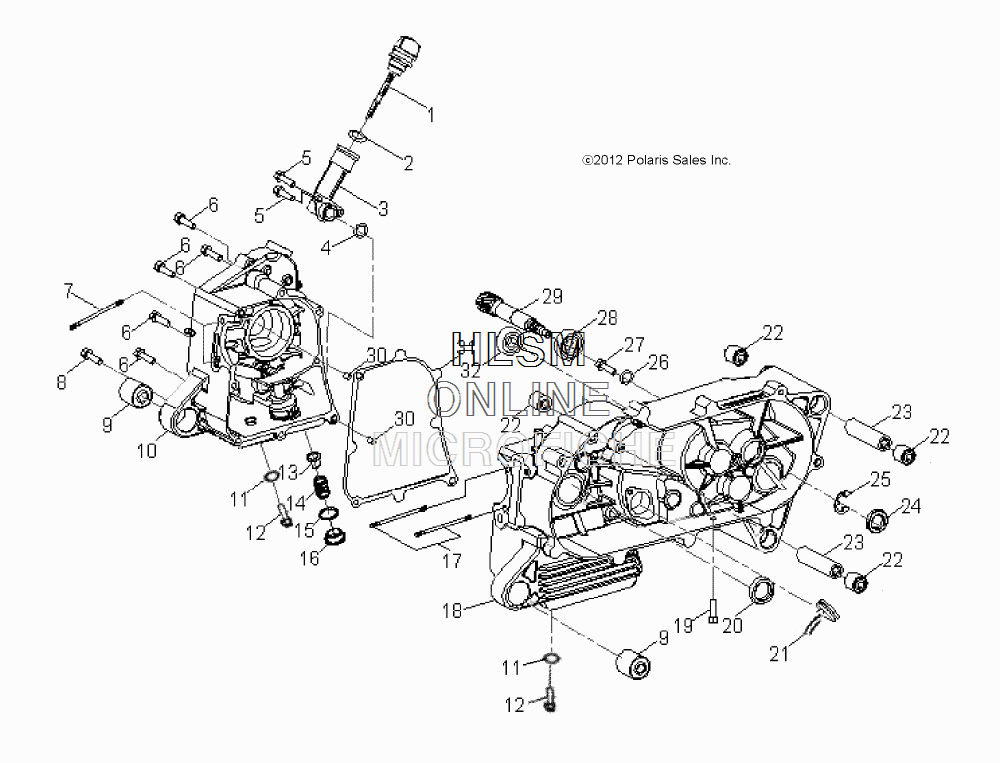

CRANKCASE для Polaris OUTLAW 50 PINK [A17YAK05A4] - 2017 года выпуска
-
№АртикулНазвание
-
-0454995 ASM., ENGINE, 4 STROKE, W/O CARBASM., ENGINE, 4 STROKE, W/O CARB
-
10453542 DIPSTICK, OILDIPSTICK, OIL
-
20455117 O-RINGO-RING
-
30453611 NECK, OIL FILLERNECK, OIL FILLER
-
40453827 O-RINGO-RING
-
50452413 BOLTBOLT
-
60453612 BOLTBOLT
-
70453844 STUDSTUD
-
80453614 BOLTBOLT
-
90450587 BUSHING, RUBBERBUSHING, RUBBER
-
100455175 CRANKCASE, RHCRANKCASE, RH
-
110452133 WASHER, FLATWASHER, FLAT
-
120452132 BOLTBOLT
-
130452369 SCREENSCREEN
-
140452370 SPRING, SCREENSPRING, SCREEN
-
150452371 O-RINGO-RING
-
160452368 CAP, OIL FILLCAP, OIL FILL
-
170453845 STUDSTUD
-
180455176 CRANKCASE, LHCRANKCASE, LH
-
190454069 BOLTBOLT
-
200453522 SEAL, OILSEAL, OIL
-
210453847 BUSHING, VENT, RUBBERBUSHING, VENT, RUBBER
-
220451139 BUSHING, RUBBERBUSHING, RUBBER
-
230453617 SPACER, COLLARSPACER, COLLAR
-
240450200 SEAL, OILSEAL, OIL
-
250450198 CIRCLIPCIRCLIP
-
260453460 WASHER, FLATWASHER, FLAT
-
270450158 BOLTBOLT
-
280450199 BEARINGBEARING
-
290453456 SHAFT, DRIVESHAFT, DRIVE
-
300452342 PIN, DOWELPIN, DOWEL
-
310453419 GASKETGASKET
-
320450254 BEARING, BALLBEARING, BALL
