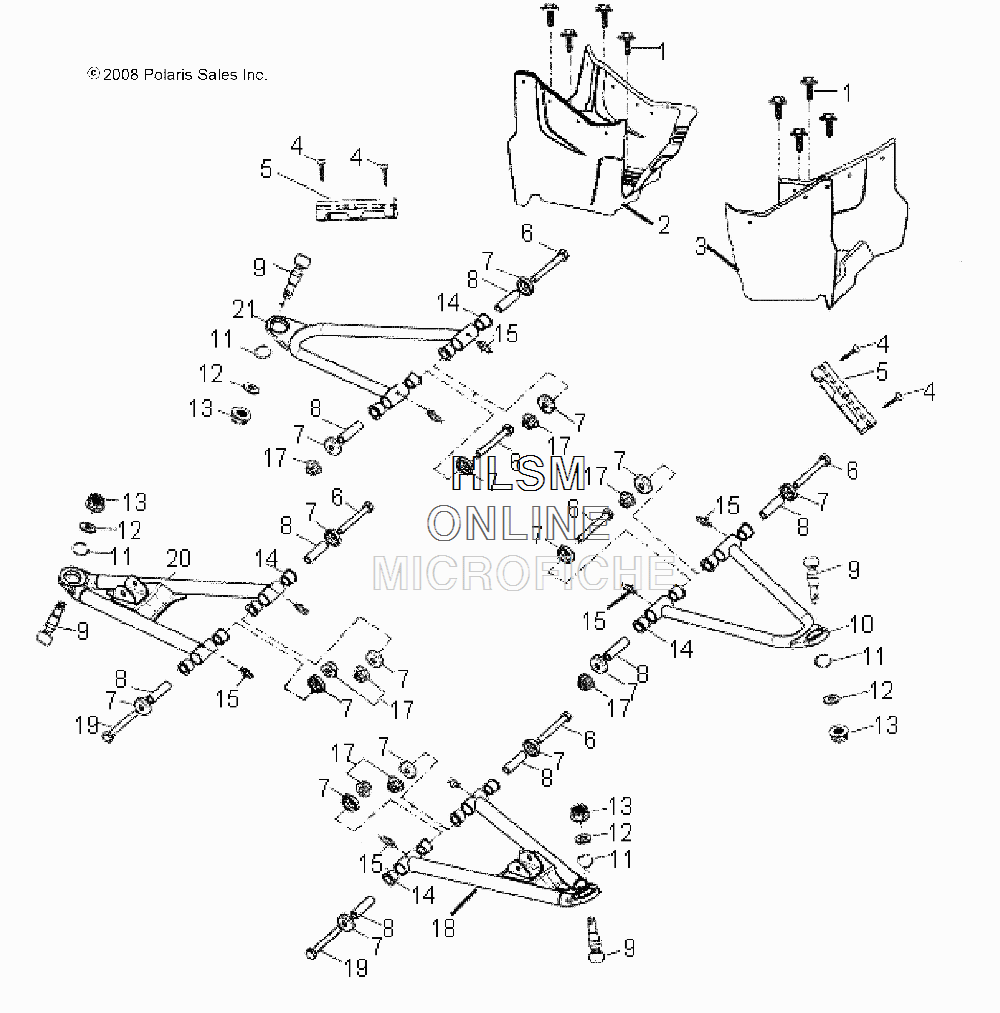

SUSPENSION - A-ARM W/FOOTREST для Polaris PHOENIX 200 AVALANCHE GRAY [A17YAP20A8/N8] - 2017 года выпуска
-
№АртикулНазвание
-
10452215 BOLTBOLT
-
20453106 FOOTWELL, RHFOOTWELL, RH
-
30453107 FOOTWELL, LHFOOTWELL, LH
-
40451703 SCREWSCREW
-
50453079 RETAINER, BRAKE LINE, FRONTRETAINER, BRAKE LINE, FRONT
-
60452626 BOLTBOLT
-
70451762 CAP, RUBBERCAP, RUBBER
-
80452625 SPACERSPACER
-
97081190 JOINT, BALLJOINT, BALL
-
100453987-067 A-ARM, UPPER, LH, BLACK [INCL. 14,15]A-ARM, UPPER, LH, BLACK [INCL. 14,15]
-
110453784 CLIP, CIRCLIP, CIR
-
120450286 WASHERWASHER
-
130453794 NUTNUT
-
140453683 BUSHINGBUSHING
-
150450320 VALVE, GREASEVALVE, GREASE
-
170450249 NUTNUT
-
180453989-067 A-ARM, LOWER, LH, BLACK [INCL. 14,15]A-ARM, LOWER, LH, BLACK [INCL. 14,15]
-
190451764 BOLTBOLT
-
200453990-067 A-ARM, LOWER, RH, BLACK [INCL. 14,15]A-ARM, LOWER, RH, BLACK [INCL. 14,15]
-
210453988-067 A-ARM, UPPER, RH, BLACK [INCL. 14,15]A-ARM, UPPER, RH, BLACK [INCL. 14,15]
