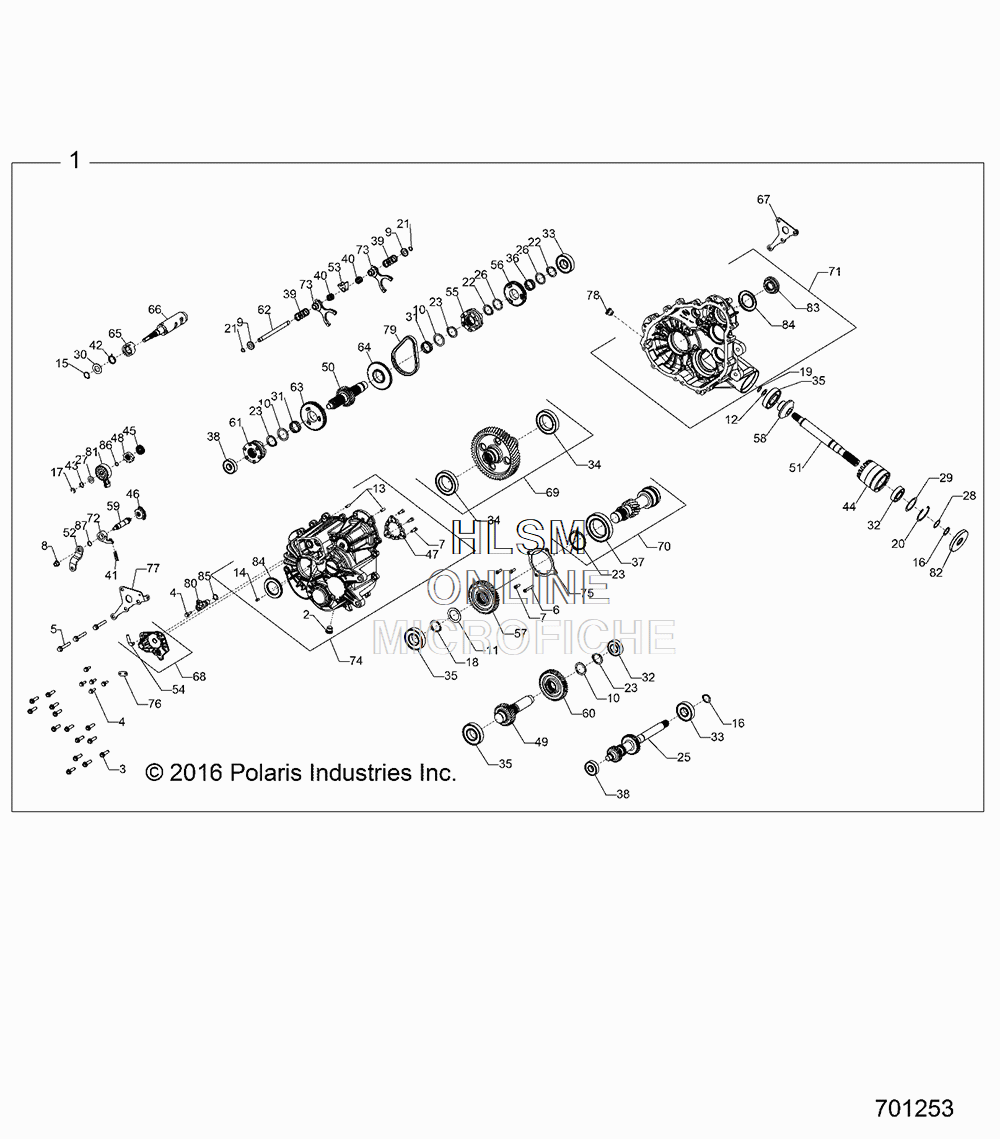

MAIN GEARCASE для Polaris RAZOR 570 (WHITE LIGHTNING) [Z17VHA57A2] - 2017 года выпуска
-
№АртикулНазвание
-
11333664 ASM-GEARCASE (INCL. ALL)ASM-GEARCASE (INCL. ALL)
-
23234756 PLUG M18 X 1.5, MAGNETICPLUG M18 X 1.5, MAGNETIC
-
33234898 SCREW, HEX FLANGE HEAD M8 X 1.25 X 30SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
-
43235206 SCREW, HEX FLANGE HEAD M6 X 1 X 20SCREW, HEX FLANGE HEAD M6 X 1 X 20
-
53235207 SCREW HEX FLANGE M8 X 50SCREW HEX FLANGE M8 X 50
-
63235208 SCREW, SOCKET HEAD CAP, M6 X 1 X 40SCREW, SOCKET HEAD CAP, M6 X 1 X 40
-
73235332 SCREW, SOCKET HEAD CAP, M6 X 1 X 18SCREW, SOCKET HEAD CAP, M6 X 1 X 18
-
83235210 NUT, LOCK HEX FLANGE NYLON M8 X 1.25NUT, LOCK HEX FLANGE NYLON M8 X 1.25
-
93234091 WASHER CUPWASHER CUP
-
103235211 WASHER 32.3 X 42 X 1.5WASHER 32.3 X 42 X 1.5
-
113235212 WASHER 35.6 X 50 X 1.5WASHER 35.6 X 50 X 1.5
-
123235213 WASHER 17.3 X 25 X 1.5WASHER 17.3 X 25 X 1.5
-
133234330 PIN, DOWEL 6 X 20PIN, DOWEL 6 X 20
-
147043746 PIN, SPRING SLOTTED 6 X 12PIN, SPRING SLOTTED 6 X 12
-
153233045 RING, RETAINING BASIC EXTERNAL 0.75RING, RETAINING BASIC EXTERNAL 0.75
-
163233106 RING, RETAINING BASIC EXTERNAL 0.984RING, RETAINING BASIC EXTERNAL 0.984
-
173233834 RING SNAPRING SNAP
-
183233364 RING, RETAINING SHAFT, DIA. 1.375RING, RETAINING SHAFT, DIA. 1.375
-
193234318 RING, RETAINING EXTERNAL SHR-66RING, RETAINING EXTERNAL SHR-66
-
203234269 RING, RETAINING BASIC INTERNAL 2.047RING, RETAINING BASIC INTERNAL 2.047
-
213234090 RING, RETAINING BASIC EXTERNAL 0.428RING, RETAINING BASIC EXTERNAL 0.428
-
223234205 RING, RETAININGRING, RETAINING
-
233235214 RING, EXTERNAL SNAP 32 X 2.4RING, EXTERNAL SNAP 32 X 2.4
-
253235710 INPUT,SHAFT BOSS L/W UTILITYINPUT,SHAFT BOSS L/W UTILITY
-
263233378 WASHER, THRUST 1.187 X 1.5 X 0.06WASHER, THRUST 1.187 X 1.5 X 0.06
-
273234642 WASHER, THRUST 0.446 X 0.88 X 0.025WASHER, THRUST 0.446 X 0.88 X 0.025
-
283234272 SHIM 1.18 OD X 0.995 IDSHIM 1.18 OD X 0.995 ID
-
293234273 SHIM 2.04 OD X 1.63 IDSHIM 2.04 OD X 1.63 ID
-
303235883 SPACER 19.4 X 34 X 2SPACER 19.4 X 34 X 2
-
313233014 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
323233019 BEARING, BALL 6205 C3 25X52X15BEARING, BALL 6205 C3 25X52X15
-
333233020 BEARING, BALL 6305 C3, 25 X 62 X 17BEARING, BALL 6305 C3, 25 X 62 X 17
-
343233268 BEARING, BALL 6010 C3 50X80X16BEARING, BALL 6010 C3 50X80X16
-
353234065 BEARING, BALL 6207 C3 35X72X17BEARING, BALL 6207 C3 35X72X17
-
363233384 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
373235218 BEARING, BALL 6012 C3 60 X 95 X 18BEARING, BALL 6012 C3 60 X 95 X 18
-
383234652 BEARING, BALL 6303 17 X 47 X 14BEARING, BALL 6303 17 X 47 X 14
-
393234078 SPRING, COMPRESSION 0.92 O.D. X 2SPRING, COMPRESSION 0.92 O.D. X 2
-
403234089 SPRING, COMPRESSION 0.46 I.D. X 0.73SPRING, COMPRESSION 0.46 I.D. X 0.73
-
413234578 SPRING, COMPRESSION DETENTSPRING, COMPRESSION DETENT
-
423235885 SPRING TORSIONSPRING TORSION
-
433235327 SPRING, WASHERSPRING, WASHER
-
443234278 TUBE, SNORKEL MACHTUBE, SNORKEL MACH
-
453233839 GEAR, SECTOR 16TGEAR, SECTOR 16T
-
463233832 GEAR, SECTOR 31TGEAR, SECTOR 31T
-
473235456 PLATE, PARK 12-FACEPLATE, PARK 12-FACE
-
483235982 STAR, DETENTSTAR, DETENT
-
493235223 SHAFT, IDLER 29TSHAFT, IDLER 29T
-
503235380 SHAFT, REVERSE 27TSHAFT, REVERSE 27T
-
513235394 SHAFT, FRONT OUTPUTSHAFT, FRONT OUTPUT
-
523235386 BELLCRANK TXCBELLCRANK TXC
-
533234073 COLLAR, SHIFTCOLLAR, SHIFT
-
543234230 TUBE, VENT 90 -1/4" HOSETUBE, VENT 90 -1/4" HOSE
-
553235233 ENGAGEMENT DOG, 6-FACEENGAGEMENT DOG, 6-FACE
-
563235234 GEAR, 53TGEAR, 53T
-
573235236 GEAR, 46T STAGE 3GEAR, 46T STAGE 3
-
583235237 GEAR, 13T SNORKELGEAR, 13T SNORKEL
-
593235238 SHAFT SHIFTSHAFT SHIFT
-
603235381 GEAR, 46T STAGE 2GEAR, 46T STAGE 2
-
613235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
623235542 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
633235561 GEAR, LOW 61TGEAR, LOW 61T
-
643235755 SPROCKET 48T 6-FACESPROCKET 48T 6-FACE
-
653235983 PARK CAMPARK CAM
-
663235984 DRUM, SHIFT MACHDRUM, SHIFT MACH
-
673235239 WELDMENT REAR MOUNT BRACKETWELDMENT REAR MOUNT BRACKET
-
683235713 SUBASSEMBLY, SECTOR COVER (INCLUDES ALL HARDWARE)SUBASSEMBLY, SECTOR COVER (INCLUDES ALL HARDWARE)
-
693235335 SUBASSEMBLY, 53T GEAR, (INCLUDES BEARINGS)SUBASSEMBLY, 53T GEAR, (INCLUDES BEARINGS)
-
703235336 SUBASSEMBLY, PINION (INCLUDES ALL HARDWARE)SUBASSEMBLY, PINION (INCLUDES ALL HARDWARE)
-
713235382 SUBASSEMBLY LEFT HAND CASE (INCLUDES ALL HARDWARE)SUBASSEMBLY LEFT HAND CASE (INCLUDES ALL HARDWARE)
-
723235452 SUBASSEMBLY, PAWL DETENT, ROLLERSUBASSEMBLY, PAWL DETENT, ROLLER
-
733235920 SUBASSEMBLY, SHIFT FORKSUBASSEMBLY, SHIFT FORK
-
743235995 SUBASSEMBLY RIGHT HAND COVER (INCLUDES ALL HARDWARE)SUBASSEMBLY RIGHT HAND COVER (INCLUDES ALL HARDWARE)
-
753235241 COVER, BEARING CENTER DRIVECOVER, BEARING CENTER DRIVE
-
763235350 BRACKET WIRE HARNESSBRACKET WIRE HARNESS
-
773235351 BRACKET, REAR MOUNTBRACKET, REAR MOUNT
-
783234755 PLUG M18 X 1.5PLUG M18 X 1.5
-
793234737 CHAIN, SILENT, TYPE 101 .25P X .40W X 58LCHAIN, SILENT, TYPE 101 .25P X .40W X 58L
-
804013908 SENSOR SPEEDSENSOR SPEED
-
817662299 SWITCH, ROTARY 2 PIN RESISTIVESWITCH, ROTARY 2 PIN RESISTIVE
-
833234851 SEAL, DUAL LIP, 25 X 47 VITONSEAL, DUAL LIP, 25 X 47 VITON
-
843235052 SEAL, TRIPLE LIP, VITON, 40 X 70 X 7SEAL, TRIPLE LIP, VITON, 40 X 70 X 7
-
853234302 O-RING, -113O-RING, -113
-
863233836 O-RING, -12 VITONO-RING, -12 VITON
-
873233828 O-RING, -14 VITONO-RING, -14 VITON
