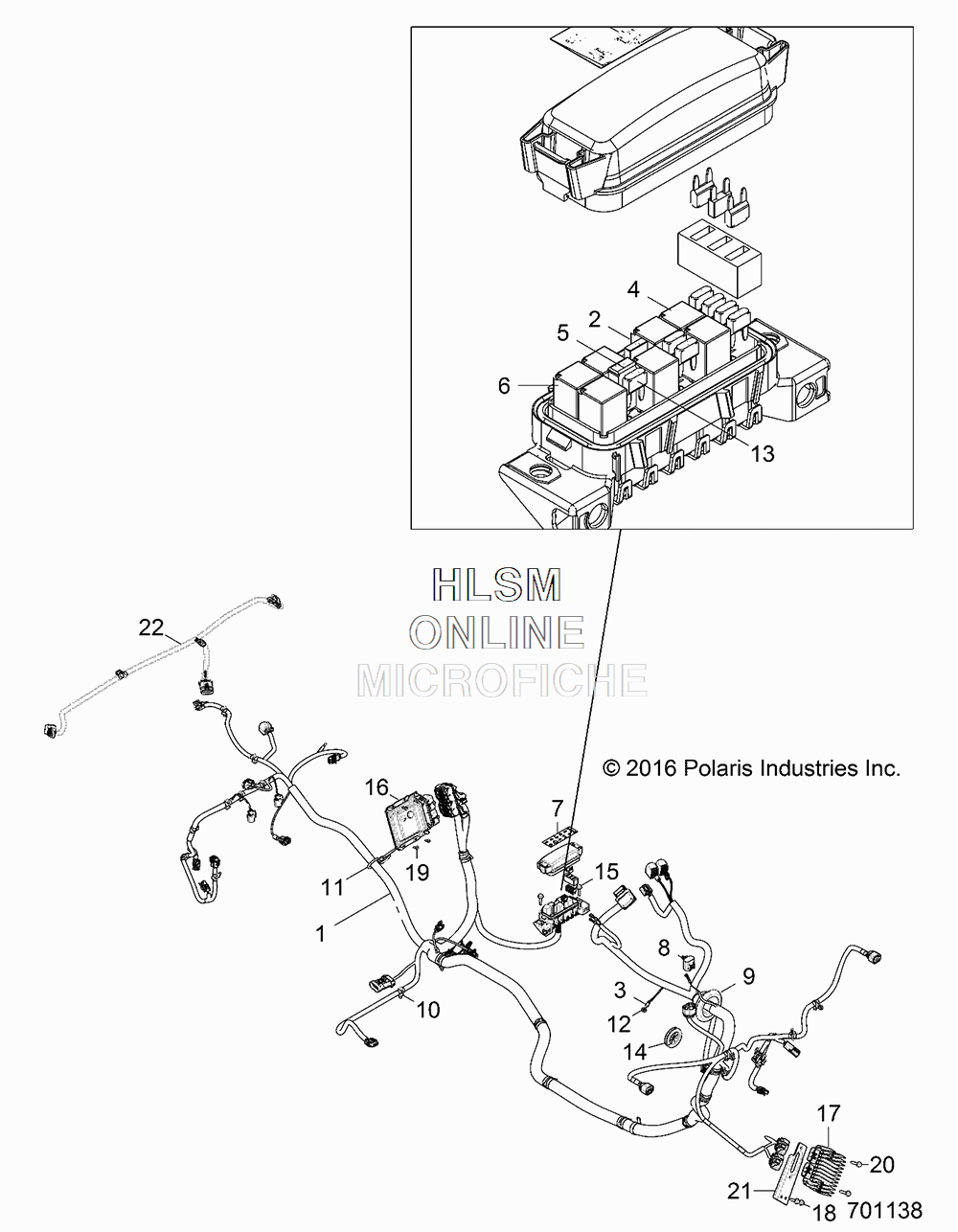

WIRE HARNESSES для Polaris RZR 900 60 IN. MD [PZ17VBE87N2] - 2017 года выпуска
-
№АртикулНазвание
-
12413491 HARNESS-CHASSIS, RZR, 900, EPS [INCL. 2-13]HARNESS-CHASSIS, RZR, 900, EPS [INCL. 2-13]
-
22410280 FUSE-MINI BLADE, 15 AMPFUSE-MINI BLADE, 15 AMP
-
32413217 LED-PANEL MNT, 12V, (BLUE)LED-PANEL MNT, 12V, (BLUE)
-
42434016 FUSE-IGNITION, 10 AMPFUSE-IGNITION, 10 AMP
-
54015771 BREAKER, CIRCUIT, 25 AMPBREAKER, CIRCUIT, 25 AMP
-
64011283 RELAY-SPST, SERIES 303, SEALEDRELAY-SPST, SERIES 303, SEALED
-
77184204 LABEL-FUSE BOXLABEL-FUSE BOX
-
84012170 COVER-DIAGNOSTIC, W/CLIPCOVER-DIAGNOSTIC, W/CLIP
-
95813954 GROMMET-65MM, (BLACK)GROMMET-65MM, (BLACK)
-
107081496 CLIP-ROUTINGCLIP-ROUTING
-
117081916 STRAP-PANDUIT, DOUBLE LOOP, 260 MMSTRAP-PANDUIT, DOUBLE LOOP, 260 MM
-
127082020 CLIP-ROUTING, DIN BOXCLIP-ROUTING, DIN BOX
-
134011653 FUSE-25A, MINI BLADEFUSE-25A, MINI BLADE
-
145414440 GROMMETGROMMET
-
157518533 BOLT, FLANGE, (BLACK)BOLT, FLANGE, (BLACK)
-
164014125 ECM, NO STARTECM, NO START
-
174014856 REGULATOR-3PH, 50A, SERIES, HISPDREGULATOR-3PH, 50A, SERIES, HISPD
-
187518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BLSCR-M6X1.0X20, HXHD, FLG, TDFM, BL
-
197519091 SCREWSCREW
-
207519342 SCR-TFHFL-M6X1.0X25, ZODSCR-TFHFL-M6X1.0X25, ZOD
-
215262740-329 BRKT-MOUNT, REGULATOR, (BLACK)BRKT-MOUNT, REGULATOR, (BLACK)
-
222412287 HARNESS, BOXHARNESS, BOX
