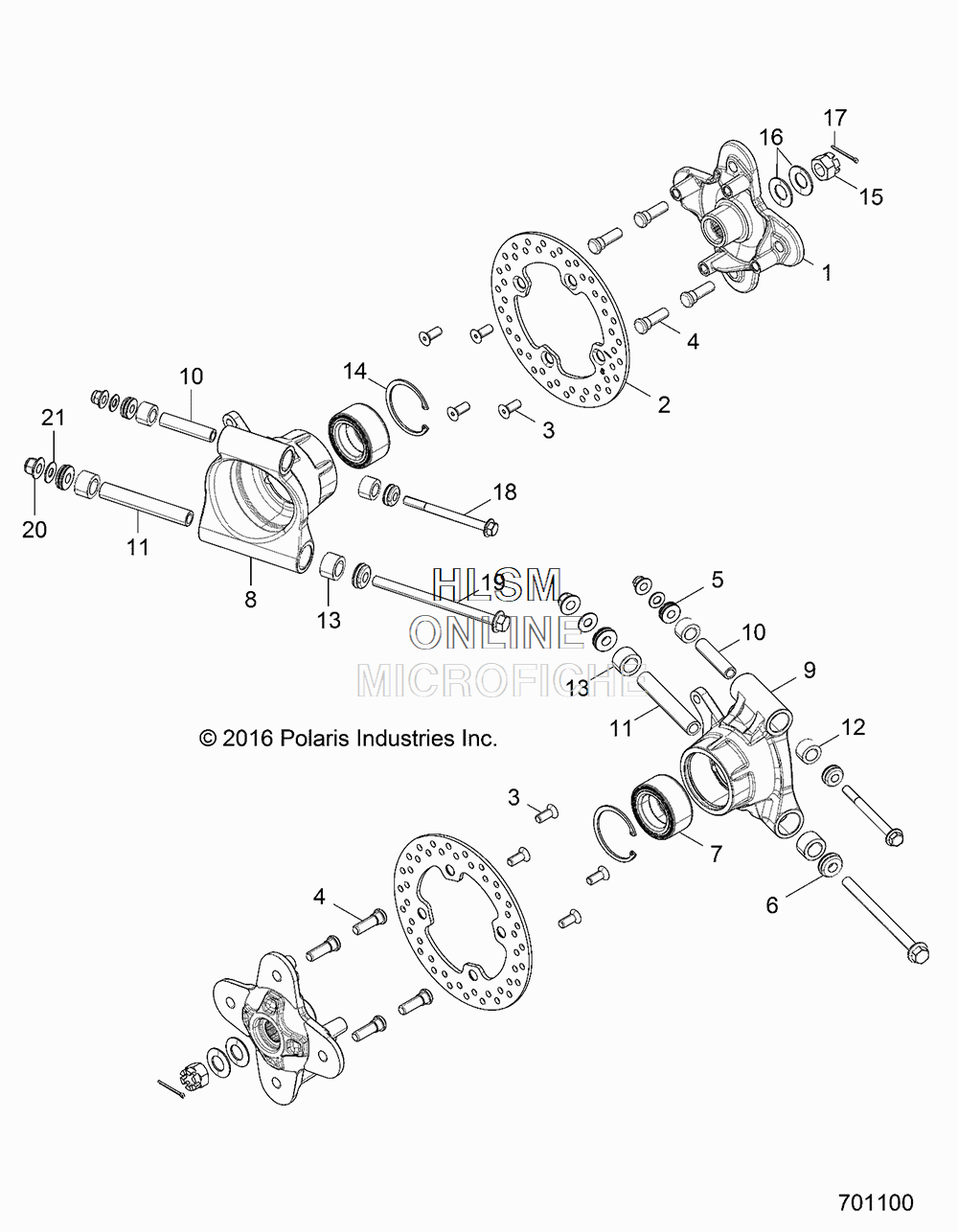

REAR CARRIER для Polaris RZR 900 TRACTOR (VELOCITY BLUE) [PZ17VBS87CB] - 2017 года выпуска
-
№АртикулНазвание
-
15139978-458 HUB-WHEEL,MACH,BLKHUB-WHEEL,MACH,BLK
-
25254999 DISC-BRAKE, FRONTDISC-BRAKE, FRONT
-
37518978 SCR-M10X1.5X20 8.8 TXCS FL ZODSCR-M10X1.5X20 8.8 TXCS FL ZOD
-
47519753 STUD-WHEEL,M12-1.5STUD-WHEEL,M12-1.5
-
51543611 ASM-PIVOT CAP,SEALED,M10ASM-PIVOT CAP,SEALED,M10
-
61543612 ASM-PIVOT CAP,SEALED,M12ASM-PIVOT CAP,SEALED,M12
-
73514822 BEARING-BALL,SEALED,44X72X33.1BEARING-BALL,SEALED,44X72X33.1
-
85139979 CARRIER-BEARING,WHEEL,LEFT HANDCARRIER-BEARING,WHEEL,LEFT HAND
-
95139980 CARRIER-BEARING,WHEEL,RIGHT HANDCARRIER-BEARING,WHEEL,RIGHT HAND
-
105139990 SHAFT-PIVOT,SHORT,M10SHAFT-PIVOT,SHORT,M10
-
115139991 SHAFT-PIVOT,LONG,M12SHAFT-PIVOT,LONG,M12
-
125452233 BUSHING-STANDARD,SUSP,M10BUSHING-STANDARD,SUSP,M10
-
135452271 BUSHING-STANDARD,SUSP,M12BUSHING-STANDARD,SUSP,M12
-
147710440 RING-RETAINING,2.875,INTERNALRING-RETAINING,2.875,INTERNAL
-
157547337 NUT-M18X1.5,CASTLE,ZINC/YELLOWNUT-M18X1.5,CASTLE,ZINC/YELLOW
-
167555796 WASHER-CONE.755X1.5X.072-.107PWASHER-CONE.755X1.5X.072-.107P
-
177661404 PIN-COTTER 1/8X1 1/2-YPIN-COTTER 1/8X1 1/2-Y
-
187519365 SCREW, HEX FLANGESCREW, HEX FLANGE
-
197520294 SCREW, HEX FLANGESCREW, HEX FLANGE
-
207547334 NUT-M12X1.5,FLG,NYLOC-OLIVE DNUT-M12X1.5,FLG,NYLOC-OLIVE D
-
217556212 WASHER-7/16 SAE,STF,THRU-HRD-YWASHER-7/16 SAE,STF,THRU-HRD-Y
