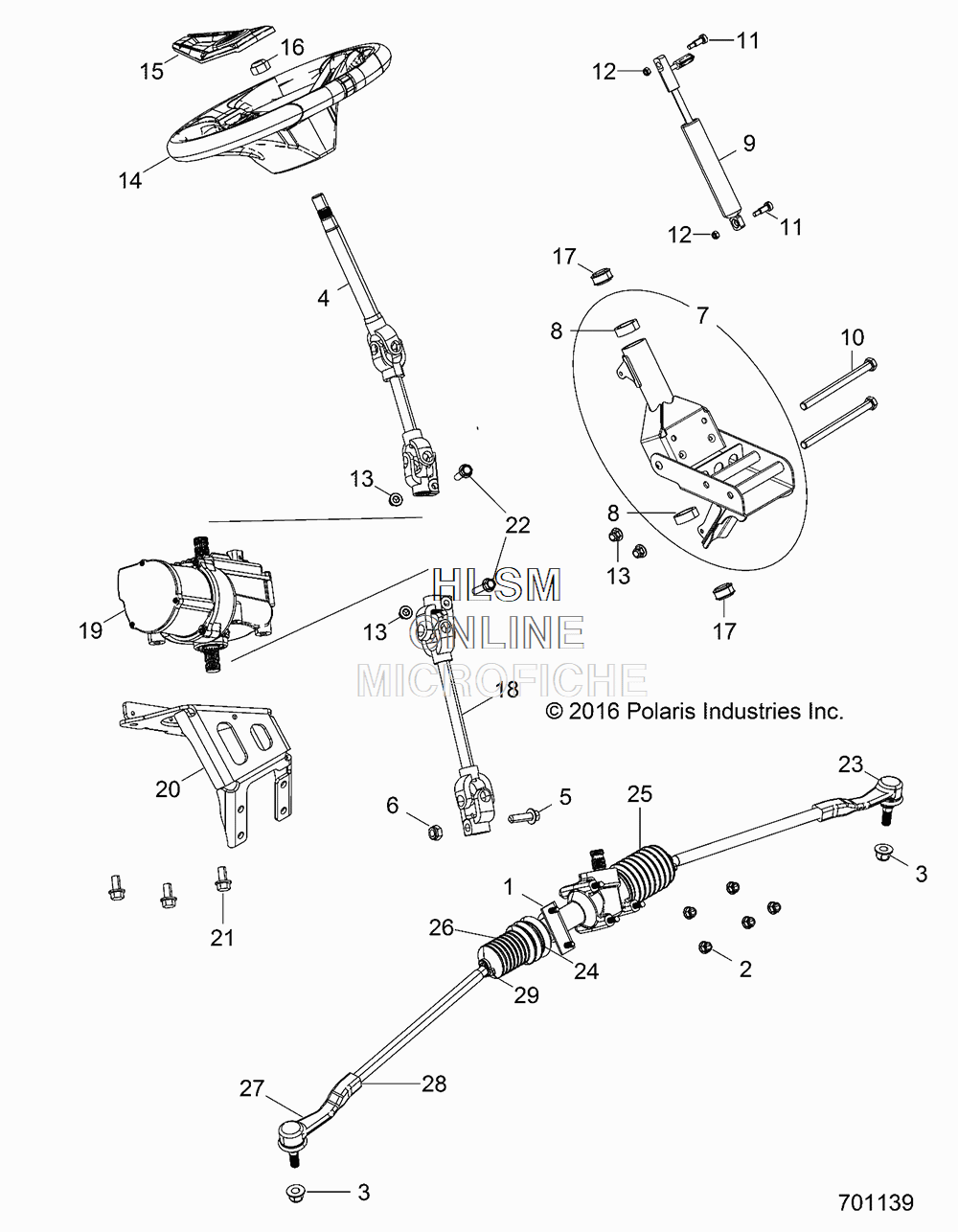

POWER STEERING ASSEMBLY. для Polaris RZR S 900 EPS (BLACK PEARL) [Z17VBE87AK] - 2017 года выпуска
-
№АртикулНазвание
-
11823994 ASM., GEAR BOX, STEERING [INCL. 23-29]ASM., GEAR BOX, STEERING [INCL. 23-29]
-
27547332 NUT, FLANGE, NYLOCKNUT, FLANGE, NYLOCK
-
37547334 NUT, FLANGE, NYLOCKNUT, FLANGE, NYLOCK
-
41823891 SHAFT, STEERING, UPPERSHAFT, STEERING, UPPER
-
57518644 SCREWSCREW
-
67547385 NUTNUT
-
71824420-458 ASM., TILT STEERING, RVTD, M10, (MATTE BLACK) [INCL 8]ASM., TILT STEERING, RVTD, M10, (MATTE BLACK) [INCL 8]
-
83514686 BEARING, STEERINGBEARING, STEERING
-
97044098 ASM., SHOCK, OIL LOCKINGASM., SHOCK, OIL LOCKING
-
107518665 BOLTBOLT
-
117519980 BOLT, SHOULDERBOLT, SHOULDER
-
127546703 NUTNUT
-
137547333 NUT, FLANGE, NYLOCKNUT, FLANGE, NYLOCK
-
141824212 WHEEL, STEERINGWHEEL, STEERING
-
155451356 CAP, STEERING WHEELCAP, STEERING WHEEL
-
167547506 NUTNUT
-
177556675 BUSHING, STEERINGBUSHING, STEERING
-
181824012 SHAFT, STEERING, LOWER, EPSSHAFT, STEERING, LOWER, EPS
-
192413483 ASM., POWER STEERING [AB][AK][AM]ASM., POWER STEERING [AB][AK][AM]
-
192413631 ASM., POWER STEERING [LK]ASM., POWER STEERING [LK]
-
205257531-329 MOUNT, EPS, (BLACK)MOUNT, EPS, (BLACK)
-
217518558 BOLTBOLT
-
227519052 SCREWSCREW
-
237061215 ROD, END, TAPERED, LEFT HANDROD, END, TAPERED, LEFT HAND
-
247080979 CLAMP, BOOT, LARGECLAMP, BOOT, LARGE
-
255412012 BOOT, DRIVERS SIDE, RACKBOOT, DRIVERS SIDE, RACK
-
265412013 BOOT, PASSENGER, SIDE RACKBOOT, PASSENGER, SIDE RACK
-
277061216 ROD, END, TAPERED, RIGHT HANDROD, END, TAPERED, RIGHT HAND
-
282205058 NUT, JAM, LEFT HAND THREADNUT, JAM, LEFT HAND THREAD
-
297080978 CLAMP, BOOT, SMALLCLAMP, BOOT, SMALL
