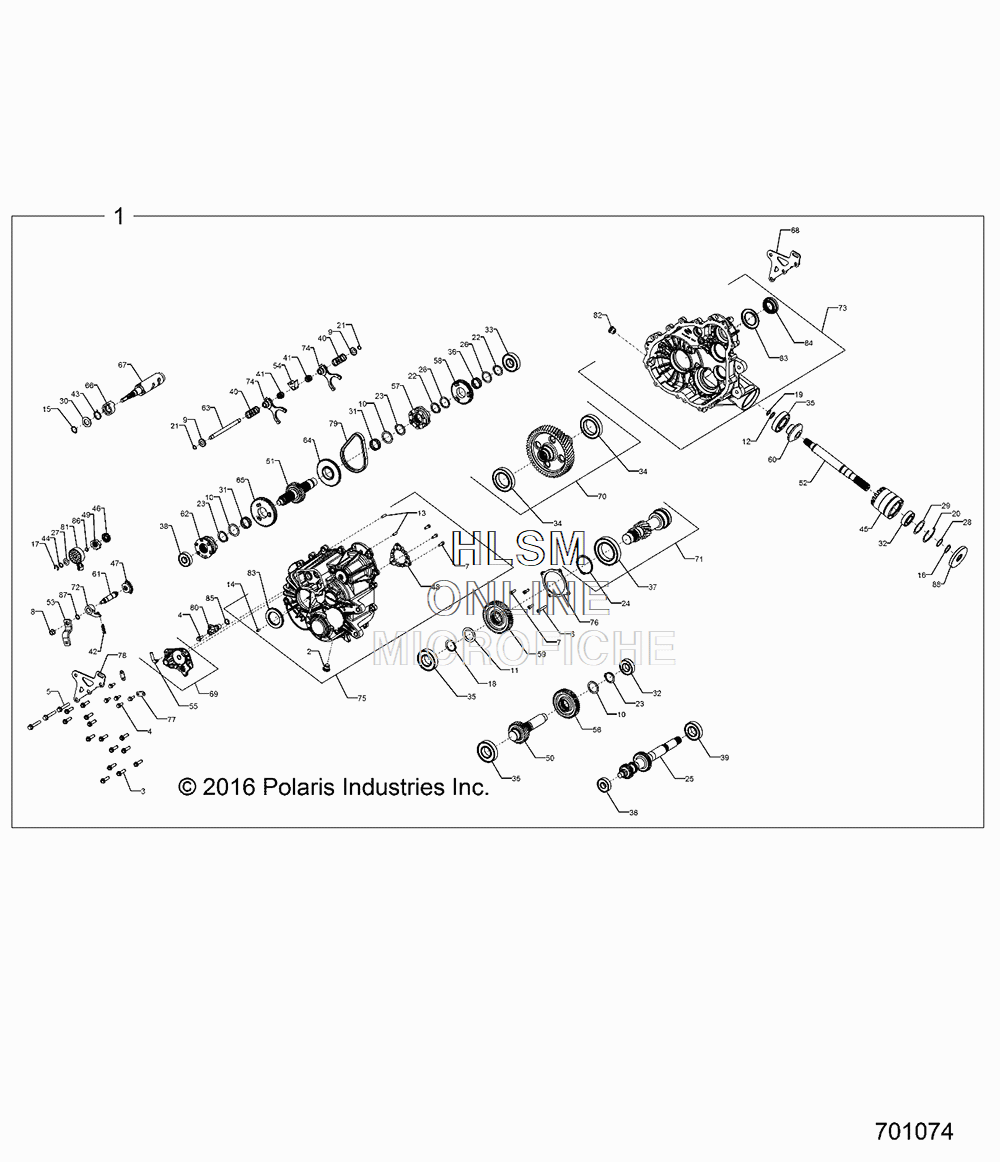

MAIN GEARCASE INTERNAL (2X4) для Polaris RZR S 900 EPS (TITANIUM METALLIC) [Z17VBE87AM] - 2017 года выпуска
-
№АртикулНазвание
-
11333696 ASM-GEARCASE, COMPLETE [INCL ALL]ASM-GEARCASE, COMPLETE [INCL ALL]
-
23234756 PLUG M18 X 1.5, MAGNETICPLUG M18 X 1.5, MAGNETIC
-
33234898 SCREW, HEX FLANGE HEAD M8 X 1.25 X 30SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
-
43235206 SCREW, HEX FLANGE HEAD M6 X 1 X 20SCREW, HEX FLANGE HEAD M6 X 1 X 20
-
53235207 SCREW HEX FLANGE M8 X 50SCREW HEX FLANGE M8 X 50
-
63235208 SCREW, SOCKET HEAD CAP, M6 X 1 X 40SCREW, SOCKET HEAD CAP, M6 X 1 X 40
-
73235332 SCREW, SOCKET HEAD CAP, M6 X 1 X 18SCREW, SOCKET HEAD CAP, M6 X 1 X 18
-
83235210 NUT, LOCK HEX FLANGE NYLON M8 X 1.25NUT, LOCK HEX FLANGE NYLON M8 X 1.25
-
93234091 WASHER CUPWASHER CUP
-
103235211 WASHER 32.3 X 42 X 1.5WASHER 32.3 X 42 X 1.5
-
113235212 WASHER 35.6 X 50 X 1.5WASHER 35.6 X 50 X 1.5
-
123235213 WASHER 17.3 X 25 X 1.5WASHER 17.3 X 25 X 1.5
-
133234330 PIN, DOWEL 6 X 20PIN, DOWEL 6 X 20
-
147043746 PIN, SPRING SLOTTED 6 X 12PIN, SPRING SLOTTED 6 X 12
-
153233045 RING, RETAINING BASIC EXTERNAL 0.75RING, RETAINING BASIC EXTERNAL 0.75
-
163233106 RING, RETAINING BASIC EXTERNAL 0.984RING, RETAINING BASIC EXTERNAL 0.984
-
173233834 RING SNAPRING SNAP
-
183233364 RING, RETAINING SHAFT, DIA. 1.375RING, RETAINING SHAFT, DIA. 1.375
-
193234318 RING, RETAINING EXTERNAL SHR-66RING, RETAINING EXTERNAL SHR-66
-
203234269 RING, RETAINING BASIC INTERNAL 2.047RING, RETAINING BASIC INTERNAL 2.047
-
213234090 RING, RETAINING BASIC EXTERNAL 0.428RING, RETAINING BASIC EXTERNAL 0.428
-
223234205 RING, RETAININGRING, RETAINING
-
233235214 RING, RETAINING BASIC, EXTERNAL MSR-32RING, RETAINING BASIC, EXTERNAL MSR-32
-
243235216 RING, RETAINING VSH-237RING, RETAINING VSH-237
-
253235763 SHAFT, INPUT 42T/20T/29TSHAFT, INPUT 42T/20T/29T
-
263233378 WASHER, THRUST 1.187 X 1.5 X 0.06WASHER, THRUST 1.187 X 1.5 X 0.06
-
273234642 WASHER, THRUST 0.446 X 0.88 X 0.025WASHER, THRUST 0.446 X 0.88 X 0.025
-
283234272 SHIM 1.18 OD X 0.995 IDSHIM 1.18 OD X 0.995 ID
-
293234273 SHIM 2.04 OD X 1.63 IDSHIM 2.04 OD X 1.63 ID
-
303235883 SPACER, 19.4 X 34 X 2SPACER, 19.4 X 34 X 2
-
313233014 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
323233019 BEARING, BALL 6205 C3 25X52X15BEARING, BALL 6205 C3 25X52X15
-
333233020 BEARING, BALL 6305 C3, 25 X 62 X 17BEARING, BALL 6305 C3, 25 X 62 X 17
-
343233268 BEARING, BALL 6010 C3 50X80X16BEARING, BALL 6010 C3 50X80X16
-
353234065 BEARING, BALL 6207 C3 35X72X17BEARING, BALL 6207 C3 35X72X17
-
363233384 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
373235218 BEARING, BALL 6012 C3 60 X 95 X 18BEARING, BALL 6012 C3 60 X 95 X 18
-
383234652 BEARING, BALL 6303 17 X 47 X 14BEARING, BALL 6303 17 X 47 X 14
-
393235496 BEARING, BALL 6206RSH2 STD 30X62X16BEARING, BALL 6206RSH2 STD 30X62X16
-
403234078 SPRING, COMPRESSION 0.92 O.D. X 2SPRING, COMPRESSION 0.92 O.D. X 2
-
413234089 SPRING, COMPRESSION 0.46 I.D. X 0.73SPRING, COMPRESSION 0.46 I.D. X 0.73
-
423234578 SPRING, COMPRESSION 0.36 O.D. X 1.125SPRING, COMPRESSION 0.36 O.D. X 1.125
-
433235885 SPRING, TORSIONSPRING, TORSION
-
443235327 SPRING, WASHERSPRING, WASHER
-
453234278 TUBE, SNORKEL MACHTUBE, SNORKEL MACH
-
463233839 GEAR, SECTOR 16TGEAR, SECTOR 16T
-
473233832 GEAR, SECTOR 31TGEAR, SECTOR 31T
-
483235456 PLATE, PARK 12-FACEPLATE, PARK 12-FACE
-
493235982 STAR, DETENTSTAR, DETENT
-
503235223 SHAFT, IDLER 29TSHAFT, IDLER 29T
-
513235224 SHAFT, REVERSE 29TSHAFT, REVERSE 29T
-
523235394 SHAFT, FRONT OUTPUTSHAFT, FRONT OUTPUT
-
533235581 BELLCRANKBELLCRANK
-
543234073 COLLAR, SHIFTCOLLAR, SHIFT
-
553234230 TUBE, VENT 90 -1/4" HOSETUBE, VENT 90 -1/4" HOSE
-
563235229 GEAR, 44T STAGE 2GEAR, 44T STAGE 2
-
573235233 ENGAGEMENT DOG, 6-FACEENGAGEMENT DOG, 6-FACE
-
583235234 GEAR, 53TGEAR, 53T
-
593235236 GEAR, 46T STAGE 3GEAR, 46T STAGE 3
-
603235237 GEAR, 13T SNORKELGEAR, 13T SNORKEL
-
613235238 SHAFT SHIFTSHAFT SHIFT
-
623235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
633235542 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
643235755 SPROCKET 48T 6-FACESPROCKET 48T 6-FACE
-
653235774 GEAR, LOW 64TGEAR, LOW 64T
-
663235983 PARK CAMPARK CAM
-
673235984 DRUM, SHIFT MACHDRUM, SHIFT MACH
-
683235399 WELDMENT REAR MOUNT BRACKETWELDMENT REAR MOUNT BRACKET
-
693235713 SUBASSEMBLY, SECTOR COVER [INCLUDES ALL HARDWARE]SUBASSEMBLY, SECTOR COVER [INCLUDES ALL HARDWARE]
-
703235335 SUBASSEMBLY OUTPUT [INCLUDES BEARINGS]SUBASSEMBLY OUTPUT [INCLUDES BEARINGS]
-
713235336 SUBASSEMBLY PINION [BEARING & RET. RING]SUBASSEMBLY PINION [BEARING & RET. RING]
-
723235452 SUBASSEMBLY, PAWL DETENT, ROLLERSUBASSEMBLY, PAWL DETENT, ROLLER
-
733235491 SUBASSEMBLY, LH CASE [INCLUDES ALL HARDWARE]SUBASSEMBLY, LH CASE [INCLUDES ALL HARDWARE]
-
743235920 SUBASSEMBLY, SHIFT FORKSUBASSEMBLY, SHIFT FORK
-
753235995 SUBASSEMBLY, RH COVER [INCLUDES ALL HARDWARE]SUBASSEMBLY, RH COVER [INCLUDES ALL HARDWARE]
-
763235241 COVER, BEARING CENTER DRIVECOVER, BEARING CENTER DRIVE
-
773235350 BRACKET WIRE HARNESSBRACKET WIRE HARNESS
-
783235398 BRACKET, REAR MOUNTBRACKET, REAR MOUNT
-
793234737 CHAIN, SILENT, TYPE 101 .25P X .40W X 58LCHAIN, SILENT, TYPE 101 .25P X .40W X 58L
-
804013908 SENSOR SPEEDSENSOR SPEED
-
817662299 SWITCH, ROTARY 2 PIN RESISTIVESWITCH, ROTARY 2 PIN RESISTIVE
-
823234755 PLUG M18 X 1.5PLUG M18 X 1.5
-
833235052 SEAL, TRIPLE LIP, VITON 40 X 70 X 7SEAL, TRIPLE LIP, VITON 40 X 70 X 7
-
843235495 SEAL, TRIPLE LIP VITON HELIX 30 X 47SEAL, TRIPLE LIP VITON HELIX 30 X 47
-
853234302 O-RINGO-RING
-
863233836 O-RING, -12 VITONO-RING, -12 VITON
-
873233828 O-RING, -14 VITONO-RING, -14 VITON
-
883234113 SEAL, TRIPLE LIP 25 X 80 X 10SEAL, TRIPLE LIP 25 X 80 X 10
