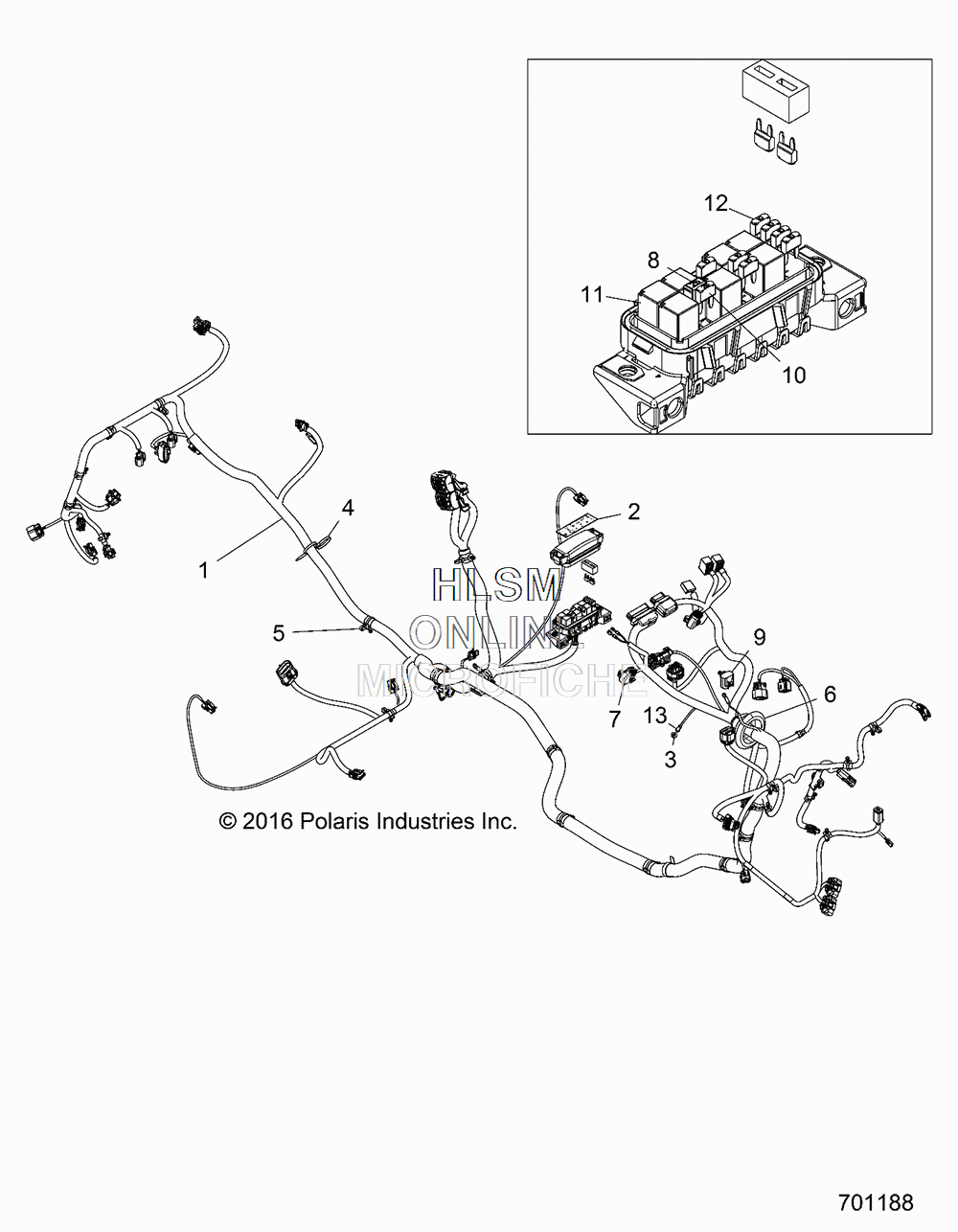

WIRE HARNESSES для Polaris RZR XP 1000 EPS LE (MATTE GOLD METALLIC) [Z17VDR99AZ] - 2017 года выпуска
-
№АртикулНазвание
-
12413442 HARNESS-CHASSIS, CRWL, RZR, 64 [INCL. ALL]HARNESS-CHASSIS, CRWL, RZR, 64 [INCL. ALL]
-
27184131 LABEL-FUSE BOXLABEL-FUSE BOX
-
37082020 CLIP-ROUTING, DIN BOXCLIP-ROUTING, DIN BOX
-
47081916 STRAP-PANDUIT, DOUBLE LOOP, 260 MMSTRAP-PANDUIT, DOUBLE LOOP, 260 MM
-
57081496 CLIP-ROUTINGCLIP-ROUTING
-
65813954 GROMMET-65MM, (BLACK)GROMMET-65MM, (BLACK)
-
74015771 BREAKER-CIRCUIT, 25 AMPBREAKER-CIRCUIT, 25 AMP
-
84012170 COVER-DIAGNOSTIC, W/CLIPCOVER-DIAGNOSTIC, W/CLIP
-
94011653 FUSE-25A, MINI BLADEFUSE-25A, MINI BLADE
-
104011283 RELAY-SPST, SERIES 303, SEALEDRELAY-SPST, SERIES 303, SEALED
-
112434016 FUSE-IGNITION, 10 AMPFUSE-IGNITION, 10 AMP
-
122413217 LED-PANEL MNT, 12V, (BLUE)LED-PANEL MNT, 12V, (BLUE)
