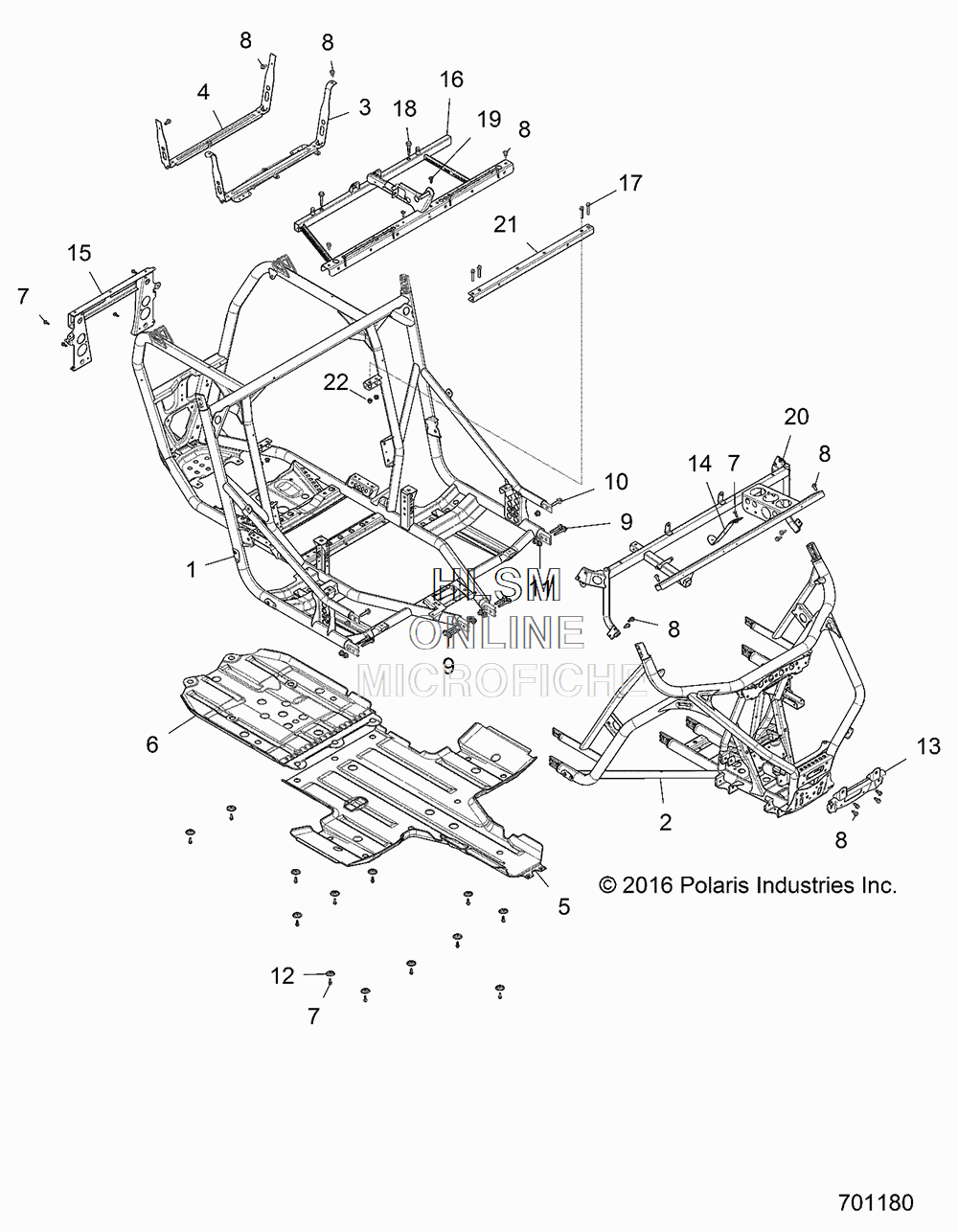

MAIN FRAME AND SKID PLATES для Polaris RZR XP 1000 EPS SPECIAL EDITION WITH RIDE COMMAND (VELOCITY BLUE) [Z17VDK99AK] - 2017 года выпуска
-
№АртикулНазвание
-
21022399-458 WELD-MAINFRAME, FRT, SWAY, (BLACK)WELD-MAINFRAME, FRT, SWAY, (BLACK)
-
35260947-329 BRACKET, BOX STRAP, (BLACK)BRACKET, BOX STRAP, (BLACK)
-
45260948-329 BRACKET, BOX SUPPORT REAR, (BLACK)BRACKET, BOX SUPPORT REAR, (BLACK)
-
55450239-070 PLATE, SKID, (BLACK)PLATE, SKID, (BLACK)
-
65452063-070 PLATE, SKID, REAR, (BLACK)PLATE, SKID, REAR, (BLACK)
-
77518529 SCREWSCREW
-
87518555 BOLTBOLT
-
97519285 SCREWSCREW
-
107519332 SCREWSCREW
-
117547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
127556065 WASHER, SKID PLATEWASHER, SKID PLATE
-
135259449-458 BRACKET, SUSPENSION MOUNT, FRONT, (MATTE BLACK)BRACKET, SUSPENSION MOUNT, FRONT, (MATTE BLACK)
-
145257304-329 BRACKET, DIN MOUNT, (BLACK)BRACKET, DIN MOUNT, (BLACK)
-
151019529-458 SUPPORT, REAR, (BLACK)SUPPORT, REAR, (BLACK)
-
161020571-329 BASE, SEAT, (BLACK)BASE, SEAT, (BLACK)
-
177516732 SCR-M8X1.25X45-HX/FL-YSCR-M8X1.25X45-HX/FL-Y
-
187518474 BOLTBOLT
-
197519650 SCREWSCREW
-
201020984-329 DASH, (BLACK)DASH, (BLACK)
-
215260539-329 BRKT-CLOSE OFF SUPPORT, (BLACK)BRKT-CLOSE OFF SUPPORT, (BLACK)
-
227547332 NUT-M8X1.25, FLG, NYLOC-OLIVE DNUT-M8X1.25, FLG, NYLOC-OLIVE D
