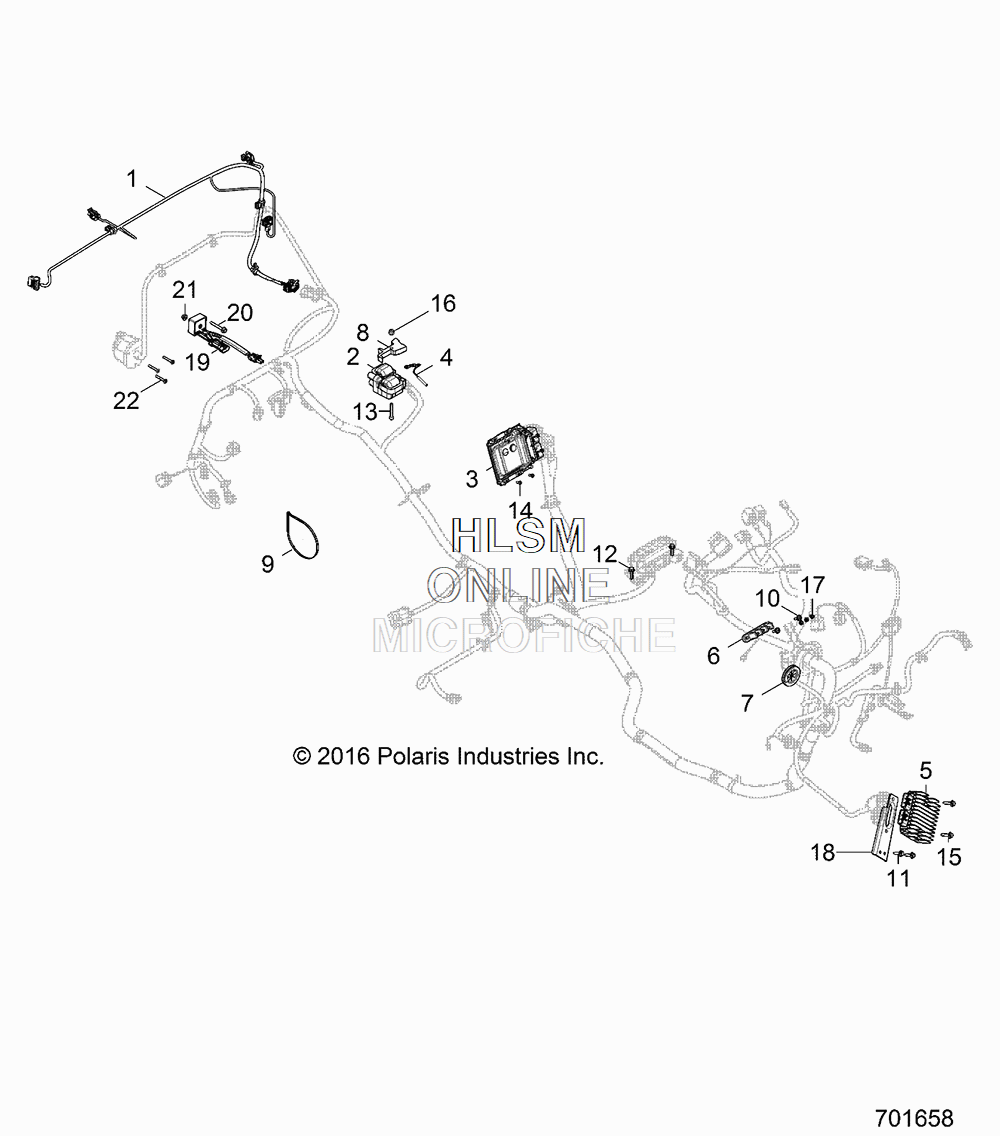

ELECTRICAL - REGULATOR- COIL- ECM для Polaris RZR XP 1000 TRACTOR EU [PZ17VDS99FM] - 2017 года выпуска
-
№АртикулНазвание
-
12413596 HARNESS-BOX,RZN,TR 64HARNESS-BOX,RZN,TR 64
-
24010425 COIL-EFICOIL-EFI
-
34014125 ECM-NO START,ME17ECM-NO START,ME17
-
44014422 JUMPER,COIL GROUNDJUMPER,COIL GROUND
-
54014856 REGULATOR-3PH,50A,SERIES,HISPDREGULATOR-3PH,50A,SERIES,HISPD
-
64015778 BLOCK-TERMINAL,3 POST,TALLBLOCK-TERMINAL,3 POST,TALL
-
75414440 GROMMET-ELECTRICAL,CABGROMMET-ELECTRICAL,CAB
-
85436577 SPACER-COIL MOUNTSPACER-COIL MOUNT
-
97080761 STRAP-PANDUIT,14"STRAP-PANDUIT,14"
-
107518196 SCR-10-24X3/4 PH/TX/TRI-SEMS YSCR-10-24X3/4 PH/TX/TRI-SEMS Y
-
117518529 SCR-M6X1.0X20,HXHD,FLG,TDFM,BLSCR-M6X1.0X20,HXHD,FLG,TDFM,BL
-
127518533 SCR-HXFL-M6X1.0X25 8.8 RIESCR-HXFL-M6X1.0X25 8.8 RIE
-
137518780 SCR-M6X1.0X40,HX/SOC/CP-BSCR-M6X1.0X40,HX/SOC/CP-B
-
147519091 SCR-#10X1/2-HI/LO-PN-T25,TRX-MSCR-#10X1/2-HI/LO-PN-T25,TRX-M
-
157519342 SCR-TFHFL-M6X1.0X25,ZODSCR-TFHFL-M6X1.0X25,ZOD
-
167547274 NUT-M6 FLANGE,NYLOCNUT-M6 FLANGE,NYLOC
-
177547341 NUTS-KEPS,10-32NUTS-KEPS,10-32
-
185262740-329 BRKT-MOUNT,REGULATOR,BLKBRKT-MOUNT,REGULATOR,BLK
-
194012829 RELAY, SOLID STATE,9A,LONG LDRELAY, SOLID STATE,9A,LONG LD
-
207519257 SCR-HXFL-M6X1.0X45 8.8 ZODSCR-HXFL-M6X1.0X45 8.8 ZOD
-
217547339 NUT-M6X1.0,FLG-NYLOC-OLIVE DNUT-M6X1.0,FLG-NYLOC-OLIVE D
-
227512025 SCR-10-24X1.25TFM PN TRX TRI-YSCR-10-24X1.25TFM PN TRX TRI-Y
