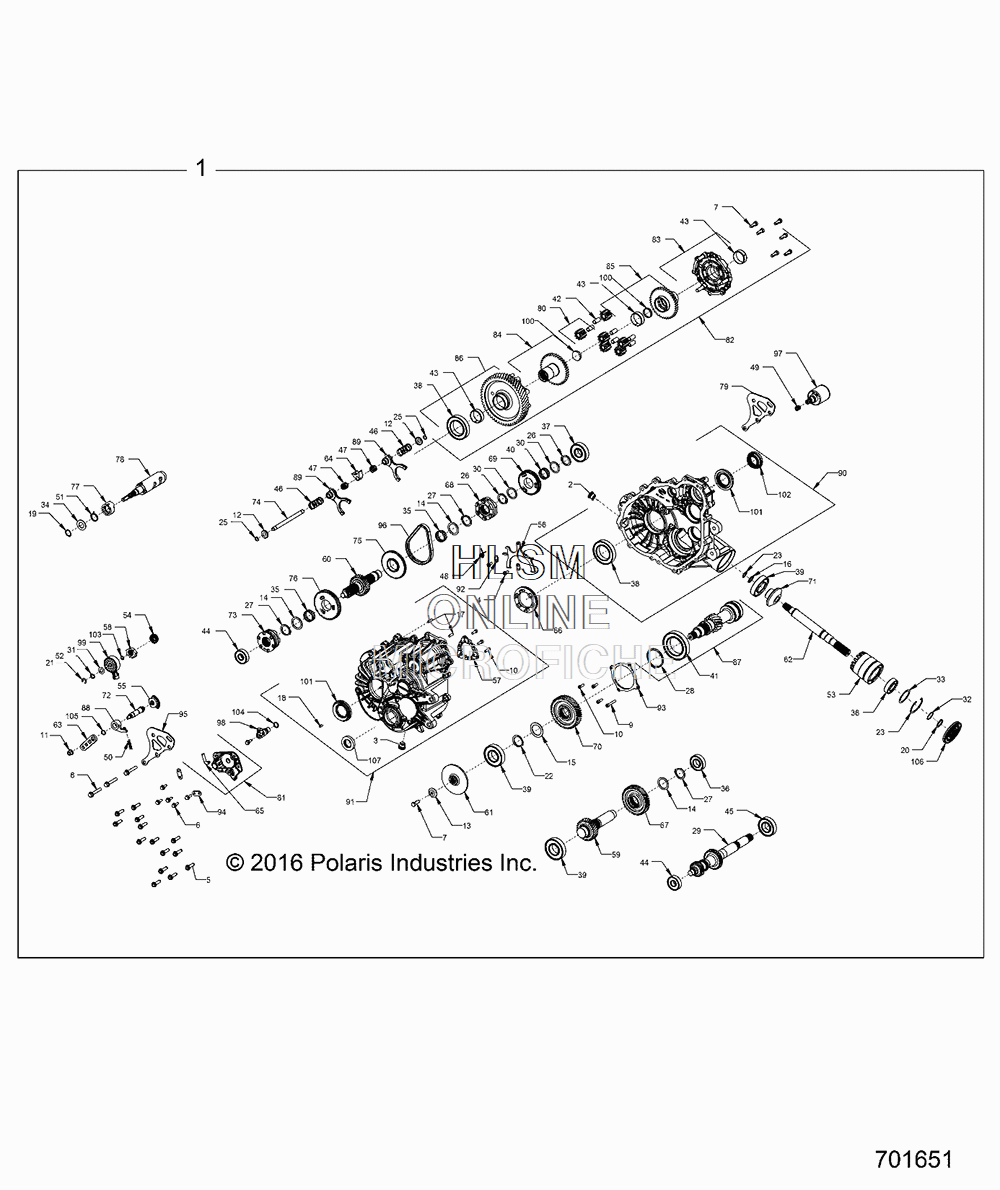

MAIN GEARCASE INTERNAL (2X4) для Polaris RZR XP 1000 TRACTOR [PZ17VDE99FM] - 2017 года выпуска

№

Артикул

Название
1

1333738 ASM-GEARCASE,COMPLETE,DIFF,PB [INCL ALL]

ASM-GEARCASE,COMPLETE,DIFF,PB [INCL ALL]

520 ₽
2

3234755 PLUG M18 X 1.5

PLUG M18 X 1.5

4 160 ₽
3

3234756 PLUG M18 X 1.5, MAGNETIC

PLUG M18 X 1.5, MAGNETIC

5 200 ₽
4

3234309 SCREW, TORX PAN HD M6 X 1 X 16

SCREW, TORX PAN HD M6 X 1 X 16

880 ₽
5

3234898 SCREW, HEX FLANGE HEAD M8 X 1.25 X 30

SCREW, HEX FLANGE HEAD M8 X 1.25 X 30

1 460 ₽
6

3235206 SCREW, HEX FLANGE HEAD M6 X 1 X 20

SCREW, HEX FLANGE HEAD M6 X 1 X 20

880 ₽
7

3235096 SCREW, CAP HH M8-1.25 X 25

SCREW, CAP HH M8-1.25 X 25

1 250 ₽
8

3235207 SCREW HEX FLANGE M8 X 50

SCREW HEX FLANGE M8 X 50

1 670 ₽
9

3235208 SCREW, SOCKET HEAD CAP, M6 X 1 X 40

SCREW, SOCKET HEAD CAP, M6 X 1 X 40

2 910 ₽
10

3235332 SCREW, SOCKET HEAD CAP, M6 X 1 X 18

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

1 040 ₽
11

3235210 NUT, LOCK HEX FLANGE NYLON M8 X 1.25

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

1 250 ₽
12

3234091 WASHER CUP

WASHER CUP

1 460 ₽
13

3234952 WASHER, FENDER 42506 X 1.25 X 0.0655

WASHER, FENDER 42506 X 1.25 X 0.0655

1 000 ₽
14

3235211 WASHER 32.3 X 42 X 1.5

WASHER 32.3 X 42 X 1.5

1 670 ₽
15

3235212 WASHER 35.6 X 50 X 1.5

WASHER 35.6 X 50 X 1.5

2 500 ₽
16

3235213 WASHER 17.3 X 25 X 1.5

WASHER 17.3 X 25 X 1.5

4 160 ₽
17

3234330 PIN, DOWEL 6 X 20

PIN, DOWEL 6 X 20

880 ₽
18

7043746 PIN, SPRING SLOTTED 6 X 12

PIN, SPRING SLOTTED 6 X 12

1 040 ₽
19

3233045 RING, RETAINING BASIC EXTERNAL 0.75

RING, RETAINING BASIC EXTERNAL 0.75

630 ₽
20

3233106 RING, RETAINING BASIC EXTERNAL 0.984

RING, RETAINING BASIC EXTERNAL 0.984

670 ₽
21

3233834 RING SNAP

RING SNAP

1 670 ₽
22

3233364 RING, RETAINING SHAFT, DIA. 1.375

RING, RETAINING SHAFT, DIA. 1.375

670 ₽
23

3234318 RING, RETAINING EXTERNAL SHR-66

RING, RETAINING EXTERNAL SHR-66

750 ₽
25

3234090 RING, RETAINING BASIC EXTERNAL 0.428

RING, RETAINING BASIC EXTERNAL 0.428

1 670 ₽
26

3234205 RING, RETAINING

RING, RETAINING

1 870 ₽
27

3235214 RING, EXTERNAL SNAP 32 X 2.4

RING, EXTERNAL SNAP 32 X 2.4

1 460 ₽
28

3235216 RING, RETAINING VSH-237

RING, RETAINING VSH-237

1 670 ₽
29

3235763 SHAFT, INPUT 42T/20T/29T

SHAFT, INPUT 42T/20T/29T

38 480 ₽
30

3233378 WASHER, THRUST 1.187 X 1.5 X 0.06

WASHER, THRUST 1.187 X 1.5 X 0.06

1 460 ₽
31

3234642 WASHER, THRUST 0.446 X 0.88 X 0.025

WASHER, THRUST 0.446 X 0.88 X 0.025

1 670 ₽
32

3234272 SHIM 1.18 OD X 0.995 ID

SHIM 1.18 OD X 0.995 ID

4 540 ₽
33

3234273 SHIM 2.04 OD X 1.63 ID

SHIM 2.04 OD X 1.63 ID

1 730 ₽
34

3235883 SPACER, 19.4 X 34 X 2

SPACER, 19.4 X 34 X 2

3 330 ₽
35

3233014 BEARING, NEEDLE CAGE ASSY

BEARING, NEEDLE CAGE ASSY

9 780 ₽
36

3233019 BEARING, BALL 6205 C3 25X52X15

BEARING, BALL 6205 C3 25X52X15

7 280 ₽
37

3233020 BEARING, BALL 6305 C3, 25 X 62 X 17

BEARING, BALL 6305 C3, 25 X 62 X 17

11 440 ₽
38

3233268 BEARING, BALL 6010 C3 50X80X16

BEARING, BALL 6010 C3 50X80X16

12 480 ₽
39

3234065 BEARING, BALL 6207 C3 35X72X17

BEARING, BALL 6207 C3 35X72X17

11 440 ₽
40

3233384 BEARING, NEEDLE CAGE ASSY

BEARING, NEEDLE CAGE ASSY

6 660 ₽
41

3235218 BEARING, BALL 6012 C3 60 X 95 X 18

BEARING, BALL 6012 C3 60 X 95 X 18

13 520 ₽
42

3234239 BEARING, PLAIN 10X12X25

BEARING, PLAIN 10X12X25

2 910 ₽
43

3234241 PLAIN, BEARING 40X44X15

PLAIN, BEARING 40X44X15

2 910 ₽
44

3234652 BEARING, BALL 6303 17 X 47 X 14

BEARING, BALL 6303 17 X 47 X 14

3 540 ₽
45

3235496 BEARING, BALL 6206RSH2 STD 30X62X16

BEARING, BALL 6206RSH2 STD 30X62X16

7 490 ₽
46

3234078 SPRING, COMPRESSION 0.92 O.D. X 2

SPRING, COMPRESSION 0.92 O.D. X 2

1 870 ₽
47

3234089 SPRING, COMPRESSION 0.46 I.D. X 0.73

SPRING, COMPRESSION 0.46 I.D. X 0.73

2 710 ₽
48

3234276 SPRING, TORSION RETURN

SPRING, TORSION RETURN

1 040 ₽
49

3234277 SPRING, COMPRESSION 0.54 OD X.44 ID X.050 WIRE

SPRING, COMPRESSION 0.54 OD X.44 ID X.050 WIRE

1 460 ₽
50

3234578 SPRING, COMPRESSION

SPRING, COMPRESSION

1 460 ₽
51

3235885 SPRING, TORSION

SPRING, TORSION

3 120 ₽
52

3235327 SPRING, WASHER

SPRING, WASHER

1 460 ₽
53

3234278 TUBE, SNORKEL MACH

TUBE, SNORKEL MACH

19 760 ₽
54

3233839 GEAR, SECTOR 16T

GEAR, SECTOR 16T

3 910 ₽
55

3233832 GEAR, SECTOR 31T

GEAR, SECTOR 31T

3 910 ₽
56

3235455 FORK, PIVOT SHIFT REAR DIFF

FORK, PIVOT SHIFT REAR DIFF

16 640 ₽
57

3235456 PLATE, PARK 12-FACE

PLATE, PARK 12-FACE

6 240 ₽
58

3235982 STAR, DETENT

STAR, DETENT

4 990 ₽
59

3235223 SHAFT, IDLER 29T

SHAFT, IDLER 29T

21 840 ₽
60

3235224 SHAFT, REVERSE 29T

SHAFT, REVERSE 29T

30 160 ₽
61

3235372 DISC, BRAKE

DISC, BRAKE

12 480 ₽
62

3235394 SHAFT, FRONT OUTPUT

SHAFT, FRONT OUTPUT

28 080 ₽
63

3235227 BELLCRANK 92 DEGREE

BELLCRANK 92 DEGREE

2 910 ₽
64

3234073 COLLAR, SHIFT

COLLAR, SHIFT

4 990 ₽
65

3234230 TUBE, VENT 90 -1/4" HOSE

TUBE, VENT 90 -1/4" HOSE

1 460 ₽
66

3234928 DOG, ENGAGEMENT

DOG, ENGAGEMENT

11 860 ₽
67

3235229 GEAR, 44T STAGE 2

GEAR, 44T STAGE 2

17 270 ₽
68

3235233 ENGAGEMENT DOG, 6-FACE

ENGAGEMENT DOG, 6-FACE

24 820 ₽
69

3235234 GEAR, 53T

GEAR, 53T

15 140 ₽
70

3235236 GEAR, 46T STAGE 3

GEAR, 46T STAGE 3

20 490 ₽
71

3235237 GEAR, 13T SNORKEL

GEAR, 13T SNORKEL

24 820 ₽
72

3235238 SHAFT SHIFT

SHAFT SHIFT

5 620 ₽
73

3235457 SHIFT DOG, PARK

SHIFT DOG, PARK

26 000 ₽
74

3235542 RAIL, SHIFT SHAFT

RAIL, SHIFT SHAFT

2 500 ₽
75

3235755 SPROCKET 48T 6-FACE

SPROCKET 48T 6-FACE

16 640 ₽
76

3235774 GEAR, LOW 64T

GEAR, LOW 64T

14 460 ₽
77

3235983 PARK CAM

PARK CAM

33 280 ₽
78

3235984 DRUM, SHIFT MACH

DRUM, SHIFT MACH

49 920 ₽
79

3235558 WELDMENT, REAR MOUNT BRACKET

WELDMENT, REAR MOUNT BRACKET

6 870 ₽
80

3234469 PLANET GEAR SUBASSEMBLY

PLANET GEAR SUBASSEMBLY

12 900 ₽
81

3235713 SUBASSEMBLY, SECTOR COVER (INCL ALL HARDWARE)

SUBASSEMBLY, SECTOR COVER (INCL ALL HARDWARE)

21 840 ₽
82

3235373 SUBASSEMBLY, AVALANCHE DIFFERENTIAL

SUBASSEMBLY, AVALANCHE DIFFERENTIAL

73 220 ₽
83

3235376 SUBASSY, DIFF COVER (INCLUDES PLUG,BUSHING)

SUBASSY, DIFF COVER (INCLUDES PLUG,BUSHING)

26 000 ₽
84

3235374 SUBASSEMBLY, 39T SIDE GEAR (INCLUDES PLUG)

SUBASSEMBLY, 39T SIDE GEAR (INCLUDES PLUG)

36 610 ₽
85

3235375 SUBASSY, 39T SIDE GEAR (INCL. PLUG, BUSHING)

SUBASSY, 39T SIDE GEAR (INCL. PLUG, BUSHING)

36 610 ₽
86

3235378 SUBASSY, GEAR 53T (INCL. PINS, BUSHING, BEARING)

SUBASSY, GEAR 53T (INCL. PINS, BUSHING, BEARING)

77 540 ₽
87

3235371 SUBASSEMBLY PINION

SUBASSEMBLY PINION

74 880 ₽
88

3235452 SUBASSEMBLY, PAWL DETENT, ROLLER

SUBASSEMBLY, PAWL DETENT, ROLLER

4 990 ₽
89

3235920 SUBASSEMBLY, SHIFT FORK

SUBASSEMBLY, SHIFT FORK

13 520 ₽
90

3235866 SUBASSEMBLY, LEFT HAND CASE

SUBASSEMBLY, LEFT HAND CASE

99 840 ₽
91

3236041 SUBASSEMBLY RIGHT HAND COVER

SUBASSEMBLY RIGHT HAND COVER

0 ₽
92

3234934 RETAINER, FORK

RETAINER, FORK

1 670 ₽
93

3235241 COVER, BEARING CENTER DRIVE

COVER, BEARING CENTER DRIVE

6 450 ₽
94

3235350 BRACKET WIRE HARNESS

BRACKET WIRE HARNESS

1 250 ₽
95

3235559 BRACKET, REAR MOUNT

BRACKET, REAR MOUNT

6 240 ₽
96

3234737 CHAIN, SILENT, TYPE 101 .25P X .40W X 58L

CHAIN, SILENT, TYPE 101 .25P X .40W X 58L

30 160 ₽
97

3235478 SOLENOID

SOLENOID

60 320 ₽
98

4013908 SENSOR SPEED

SENSOR SPEED

15 600 ₽
99

7662299 SWITCH, ROTARY 2 PIN RESISTIVE

SWITCH, ROTARY 2 PIN RESISTIVE

20 800 ₽
100

3234249 PLUG, EXPANSION 37987

PLUG, EXPANSION 37987

2 500 ₽
101

3235830 SEAL, DUAL LIP, VITON 40 X 70 X 7

SEAL, DUAL LIP, VITON 40 X 70 X 7

8 950 ₽
102

3235495 SEAL, TRIPLE LIP VITON HELIX 30 X47

SEAL, TRIPLE LIP VITON HELIX 30 X47

5 620 ₽
103

3233836 O-RING, -12 VITON

O-RING, -12 VITON

1 670 ₽
104

3234302 O-RING, -113

O-RING, -113

880 ₽
105

3233828 O-RING, -14 VITON

O-RING, -14 VITON

1 670 ₽
106

3235658 SEAL, TRIPLE LIP, VITON 25 X 80 X 10

SEAL, TRIPLE LIP, VITON 25 X 80 X 10

9 360 ₽
107

3234892 SEAL, TRIPLE LIP 0.984X1.850X0.315 VITON

SEAL, TRIPLE LIP 0.984X1.850X0.315 VITON

4 990 ₽
