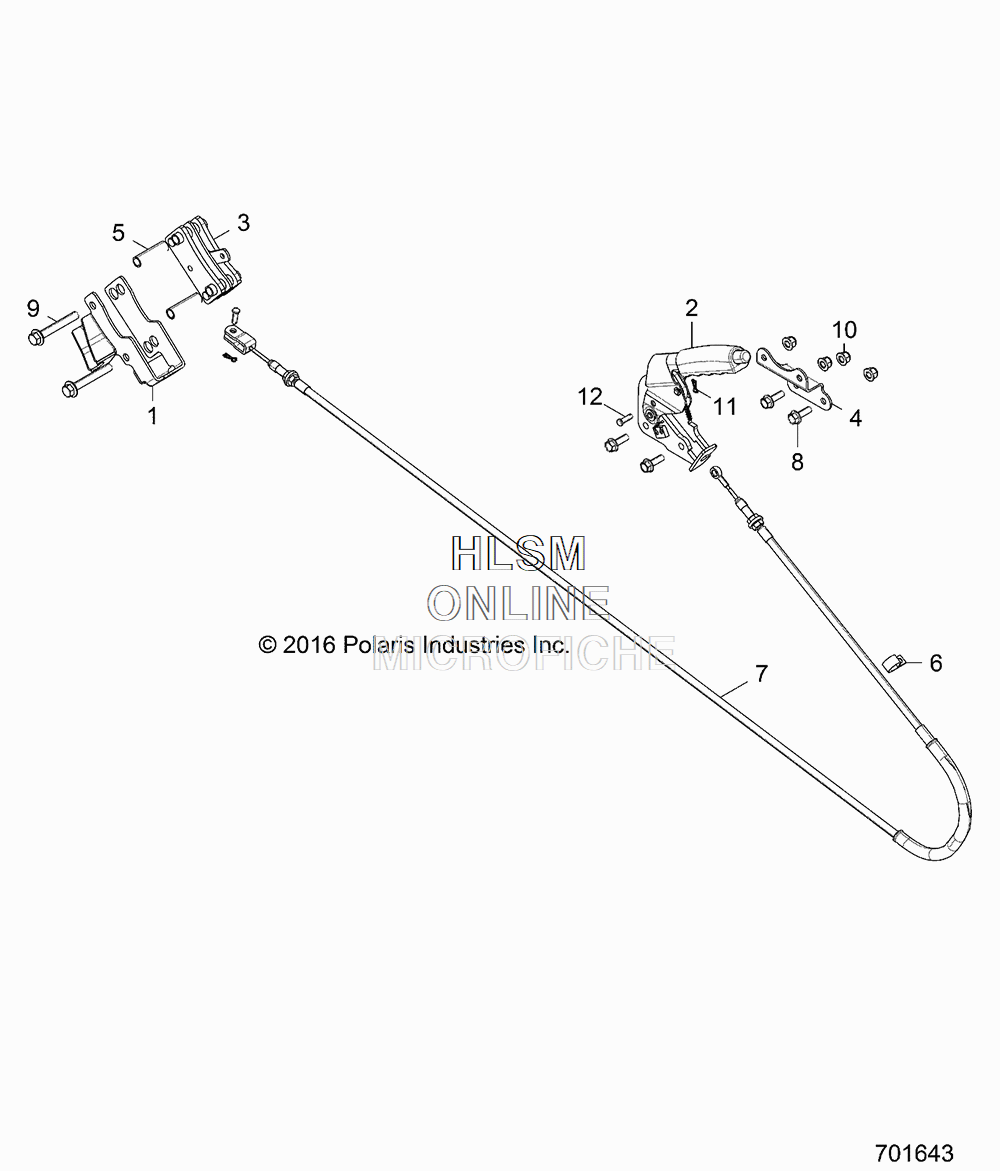

BRAKES - PARKING BRAKE для Polaris RZR XP 1000 TRACTOR ZUG [PZ17VDS99CM] - 2017 года выпуска
-
№АртикулНазвание
-
11019429 WELD-BRKT-SHIFT,PB,CWELD-BRKT-SHIFT,PB,C
-
21911573 ASM-LEVER,PARK BRAKEASM-LEVER,PARK BRAKE
-
31911972 ASM-CLPR,PB,AFT-SB230C,RVT,MNIASM-CLPR,PB,AFT-SB230C,RVT,MNI
-
45258940 BRKT-MNT,PARK BRAKE LEVERBRKT-MNT,PARK BRAKE LEVER
-
55336804 SPACER,PARKING BRAKE, 2"SPACER,PARKING BRAKE, 2"
-
67081116 CLAMP-RUBBER COATED,.75" IDCLAMP-RUBBER COATED,.75" ID
-
77081965 CABLE-PARKING BRAKE,TW,73"CABLE-PARKING BRAKE,TW,73"
-
87518514 SCR-HXFL-M8X1.25X25 8.8 ZODSCR-HXFL-M8X1.25X25 8.8 ZOD
-
97518561 BOLT-M10X1.25X70,HXFLG-OLIVE DBOLT-M10X1.25X70,HXFLG-OLIVE D
-
107547332 NUT-M8X1.25,FLG,NYLOC-OLIVE DNUT-M8X1.25,FLG,NYLOC-OLIVE D
-
117661140 PIN-CLIP,14MMPIN-CLIP,14MM
-
127661843 PIN-CLEVIS, 1/4 X 3/4 -YPIN-CLEVIS, 1/4 X 3/4 -Y
