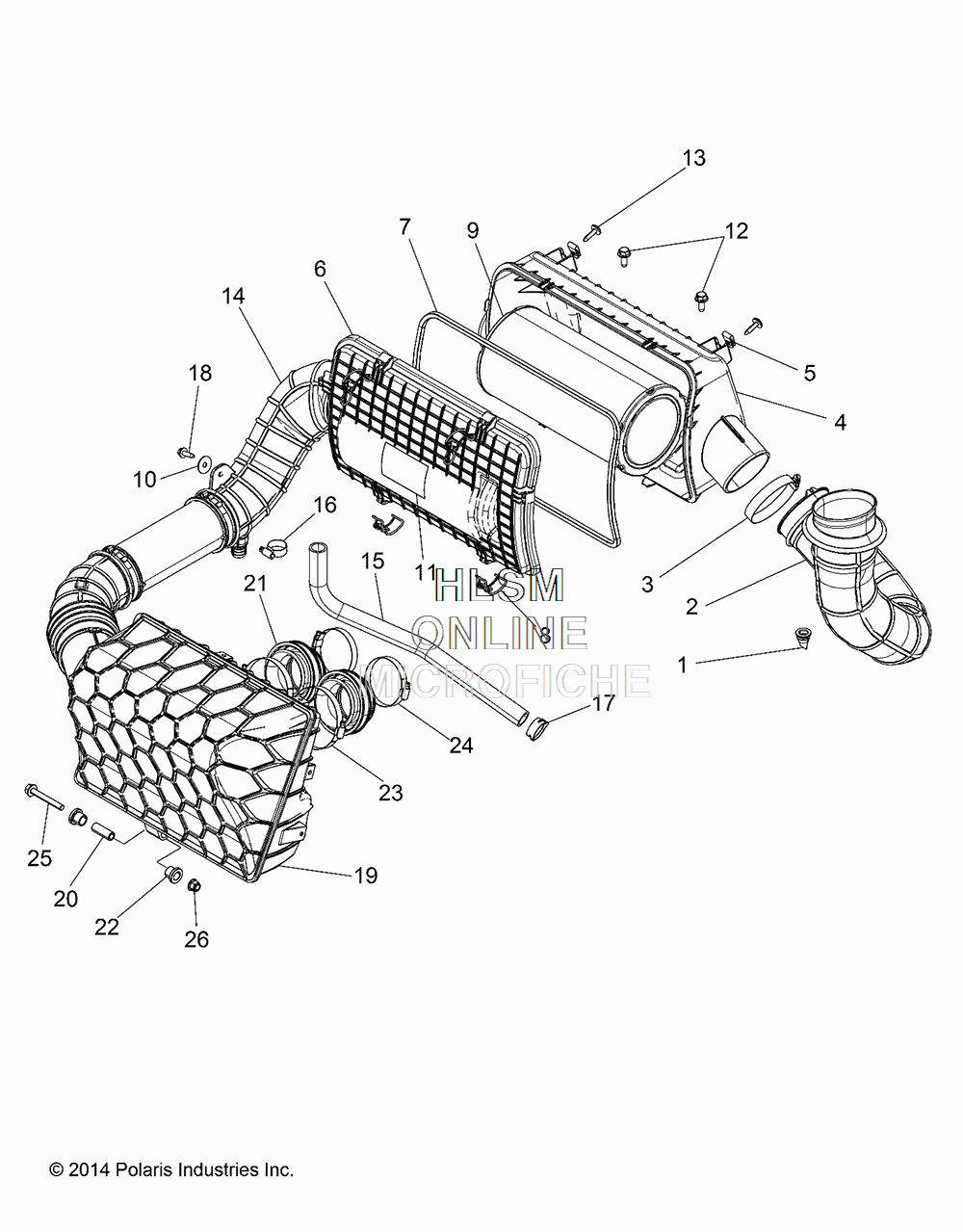

AIR INTAKE SYSTEM для Polaris RZR XP 4 1000 EPS (TITANIUM) [Z17VFE99AM] - 2017 года выпуска
-
№АртикулНазвание
-
15414472 PLUG, DRAINPLUG, DRAIN
-
25414691 HOSE, AIRBOX, INHOSE, AIRBOX, IN
-
37080907 CLAMP, HOSECLAMP, HOSE
-
41240747 ASM., AIRBOX HOUSING [INCL. 5]ASM., AIRBOX HOUSING [INCL. 5]
-
57547674 NUT, U-TYPENUT, U-TYPE
-
61240748 ASM., AIRBOX COVER [INCL. 7,8]ASM., AIRBOX COVER [INCL. 7,8]
-
75813929 SEAL, AIRBOXSEAL, AIRBOX
-
87081872 CLIP, AIRBOXCLIP, AIRBOX
-
91241084 ASM-FILTERASM-FILTER
-
107556329 WASHERWASHER
-
117182652 DECAL, CAUTION, AIR BOXDECAL, CAUTION, AIR BOX
-
127518555 BOLTBOLT
-
137519650 SCREWSCREW
-
141240770 ASM., INTAKE DUCTASM., INTAKE DUCT
-
155414671 HOSE, VENTHOSE, VENT
-
167080614 CLAMP, HOSE, WORM GEARCLAMP, HOSE, WORM GEAR
-
177080841 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
187518529 SCREWSCREW
-
191240749 INTAKE, ENGINE HOUSINGINTAKE, ENGINE HOUSING
-
205138987 SHAFT, COMPRESSION LIMITERSHAFT, COMPRESSION LIMITER
-
215414570 BOOT, THROTTLE BODYBOOT, THROTTLE BODY
-
225414719 BUSHING, MOUNTBUSHING, MOUNT
-
237080812 CLAMP, WORM DRIVECLAMP, WORM DRIVE
-
247081623 CLAMP, HOSECLAMP, HOSE
-
257519298 SCREWSCREW
-
267547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
