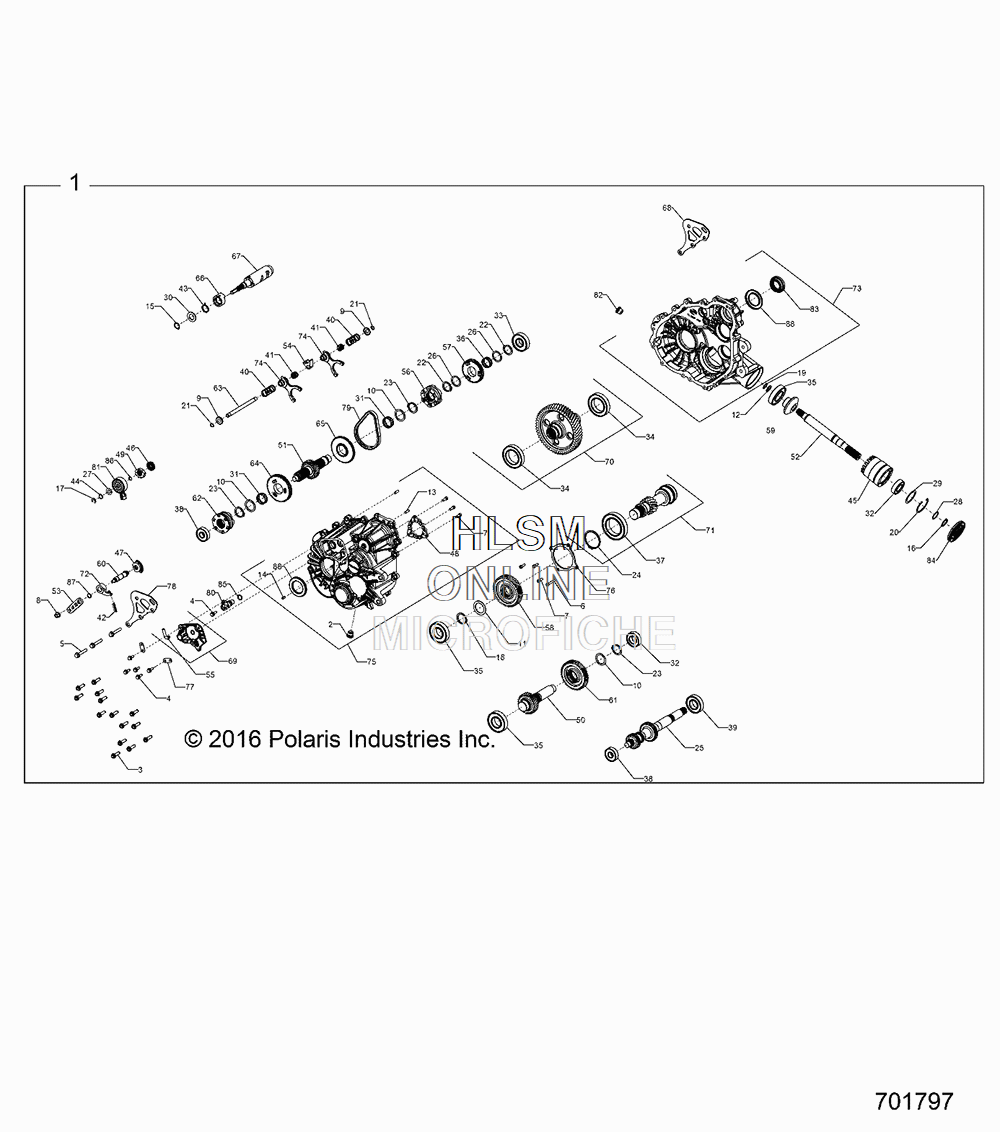

MAIN GEARCASE INTERNAL для Polaris RZR XP 4 1000 EPS (WHITE LIGHTNING) [Z17VFE99LW] - 2017 года выпуска
-
№АртикулНазвание
-
11333695 ASM-GEARCASE,COMPLETEASM-GEARCASE,COMPLETE
-
23234756 PLUG, M18 X 1.5, MAGNETICPLUG, M18 X 1.5, MAGNETIC
-
33234898 SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30SCREW, HEX FLANGE HEAD, M8 X 1.25 X 30
-
43235206 SCREW, HEX FLANGE HEAD, M6 X 1 X 20SCREW, HEX FLANGE HEAD, M6 X 1 X 20
-
53235207 SCREW, HEX FLANGE M8 X 50SCREW, HEX FLANGE M8 X 50
-
63235208 SCREW, SOCKET HEAD, CAP, M6 X 1 X 40SCREW, SOCKET HEAD, CAP, M6 X 1 X 40
-
73235332 SCREW, SOCKET HEAD, CAP, M6 X 1 X 18SCREW, SOCKET HEAD, CAP, M6 X 1 X 18
-
83235210 NUT, LOCK HEX FLANGE, NYLON M8 X 1.25NUT, LOCK HEX FLANGE, NYLON M8 X 1.25
-
93234091 WASHER, CUPWASHER, CUP
-
103235211 WASHER, 32.3 X 42 X 1.5WASHER, 32.3 X 42 X 1.5
-
113235212 WASHER, 35.6 X 50 X 1.5WASHER, 35.6 X 50 X 1.5
-
123235213 WASHER, 17.3 X 25 X 1.5WASHER, 17.3 X 25 X 1.5
-
133234330 PIN, DOWEL, 6 X 20PIN, DOWEL, 6 X 20
-
147043746 PIN, SPRING, SLOTTED 6 X 12PIN, SPRING, SLOTTED 6 X 12
-
153233045 RING, RETAINING BASIC, EXTERNAL 0.75RING, RETAINING BASIC, EXTERNAL 0.75
-
163233106 RING, RETAINING BASIC, EXTERNAL 0.984RING, RETAINING BASIC, EXTERNAL 0.984
-
173233834 RING, SNAPRING, SNAP
-
183233364 RING, RETAINING, SHAFT, DIA. 1.375RING, RETAINING, SHAFT, DIA. 1.375
-
193234318 RING, RETAINING, EXTERNAL SHR-66RING, RETAINING, EXTERNAL SHR-66
-
203234269 RING, RETAINING BASIC, INTERNAL 2.047RING, RETAINING BASIC, INTERNAL 2.047
-
213234090 RING, RETAINING BASIC, EXTERNAL 0.428RING, RETAINING BASIC, EXTERNAL 0.428
-
223234205 RING, RETAINING,RING, RETAINING,
-
233235214 RING, EXTERNAL SNAP, 32 X 2.4RING, EXTERNAL SNAP, 32 X 2.4
-
243235216 RING, RETAINING, VSH-237RING, RETAINING, VSH-237
-
253235838 SHAFT, INPUT, 42T/20T/31TSHAFT, INPUT, 42T/20T/31T
-
263233378 WASHER, THRUST, 1.187 X 1.5 X 0.06WASHER, THRUST, 1.187 X 1.5 X 0.06
-
273234642 WASHER, THRUST, 0.446 X 0.88 X 0.025WASHER, THRUST, 0.446 X 0.88 X 0.025
-
283234272 SHIM, 1.18 OD X 0.995 IDSHIM, 1.18 OD X 0.995 ID
-
293234273 SHIM, 2.04 OD X 1.63 IDSHIM, 2.04 OD X 1.63 ID
-
303235883 SPACER, 19.4 X 34 X 2SPACER, 19.4 X 34 X 2
-
313233014 BEARING, NEEDLE, CAGE ASSYBEARING, NEEDLE, CAGE ASSY
-
323233019 BEARING, BALL, 6205 C3 25X52X15BEARING, BALL, 6205 C3 25X52X15
-
333233020 BEARING, BALL, 6305 C3, 25 X 62 X 17BEARING, BALL, 6305 C3, 25 X 62 X 17
-
343233268 BEARING, BALL, 6010 C3 50X80X16BEARING, BALL, 6010 C3 50X80X16
-
353234065 BEARING, BALL, 6207 C3 35X72X17BEARING, BALL, 6207 C3 35X72X17
-
363233384 BEARING, NEEDLE, CAGE ASSYBEARING, NEEDLE, CAGE ASSY
-
373235218 BEARING, BALL 6012 C3, 60 X 95 X 18BEARING, BALL 6012 C3, 60 X 95 X 18
-
383234652 BEARING, BALL 6303, 17 X 47 X 14BEARING, BALL 6303, 17 X 47 X 14
-
393235496 BEARING, BALL, 6206RSH2 STD 30X62X16BEARING, BALL, 6206RSH2 STD 30X62X16
-
403234078 SPRING, COMPRESSION, 0.92 O.D. X 2SPRING, COMPRESSION, 0.92 O.D. X 2
-
413234089 SPRING, COMPRESSION, 0.46 I.D. X 0.73SPRING, COMPRESSION, 0.46 I.D. X 0.73
-
423234578 SPRING, COMPRESSIONSPRING, COMPRESSION
-
433235885 SPRING, TORSIONSPRING, TORSION
-
443235327 SPRING, WASHER,SPRING, WASHER,
-
453234278 TUBE, SNORKEL MACH,TUBE, SNORKEL MACH,
-
463233839 GEAR, SECTOR 16T,GEAR, SECTOR 16T,
-
473233832 GEAR, SECTOR, 31TGEAR, SECTOR, 31T
-
483235456 PLATE, PARK, 12-FACEPLATE, PARK, 12-FACE
-
493235982 STAR, DETENT,STAR, DETENT,
-
503235223 SHAFT, IDLER 29T,SHAFT, IDLER 29T,
-
513235380 SHAFT, REVERSE 27T,SHAFT, REVERSE 27T,
-
523235394 SHAFT, FRONT OUTPUT,SHAFT, FRONT OUTPUT,
-
533235227 BELLCRANK, 92 DEGREEBELLCRANK, 92 DEGREE
-
543234073 COLLAR, SHIFT,COLLAR, SHIFT,
-
553234230 TUBE, VENT, 90 -1/4" HOSETUBE, VENT, 90 -1/4" HOSE
-
563235233 ENGAGEMENT DOG,, 6-FACEENGAGEMENT DOG,, 6-FACE
-
573235234 GEAR, 53T,GEAR, 53T,
-
583235236 GEAR, 46T STAGE 3,GEAR, 46T STAGE 3,
-
593235237 GEAR, 13T SNORKEL,GEAR, 13T SNORKEL,
-
603235238 SHAFT, SHIFTSHAFT, SHIFT
-
613235381 GEAR, 46T STAGE 2GEAR, 46T STAGE 2
-
623235457 SHIFT DOG, PARK,SHIFT DOG, PARK,
-
633235542 RAIL, SHIFT SHAFT,RAIL, SHIFT SHAFT,
-
643235561 GEAR, LOW 61TGEAR, LOW 61T
-
653235755 SPROCKET 48T, 6-FACESPROCKET 48T, 6-FACE
-
663235983 PARK CAM,PARK CAM,
-
673235984 DRUM, SHIFT MACH,DRUM, SHIFT MACH,
-
683235558 WELDMENT,, REAR MOUNT BRACKETWELDMENT,, REAR MOUNT BRACKET
-
693235713 SUBASSEMBLY, SECTOR COVERSUBASSEMBLY, SECTOR COVER
-
703235335 SUBASSEMBLY, OUTPUTSUBASSEMBLY, OUTPUT
-
713235336 SUBASSEMBLY, PINIONSUBASSEMBLY, PINION
-
723235452 SUBASSEMBLY, PAWL, DETENT, ROLLERSUBASSEMBLY, PAWL, DETENT, ROLLER
-
733235514 SUBASSEMBLY, LEFT HAND CASESUBASSEMBLY, LEFT HAND CASE
-
743235920 SUBASSEMBLY, SHIFT FORKSUBASSEMBLY, SHIFT FORK
-
753235996 SUBASSEMBLY, RIGHT HAND COVERSUBASSEMBLY, RIGHT HAND COVER
-
763235241 COVER, BEARING, CENTER DRIVECOVER, BEARING, CENTER DRIVE
-
773235350 BRACKET, WIRE HARNESSBRACKET, WIRE HARNESS
-
783235559 BRACKET, REAR MOUNTBRACKET, REAR MOUNT
-
793234737 CHAIN, SILENT, TYPE 101, .25P X .40W X 58LCHAIN, SILENT, TYPE 101, .25P X .40W X 58L
-
804013908 SENSOR, SPEEDSENSOR, SPEED
-
817662299 SWITCH, ROTARY, 2 PIN RESISTIVESWITCH, ROTARY, 2 PIN RESISTIVE
-
823234755 PLUG, M18 X 1.5PLUG, M18 X 1.5
-
833235495 SEAL, TRIPLE LIP, VITON HELIX 30 X 47SEAL, TRIPLE LIP, VITON HELIX 30 X 47
-
843235658 SEAL, TRIPLE LIP, VITON 25 X 80 X 10SEAL, TRIPLE LIP, VITON 25 X 80 X 10
-
853234302 O-RING, -113O-RING, -113
-
863233836 O-RING, -12 VITONO-RING, -12 VITON
-
873233828 O-RING, -14 VITONO-RING, -14 VITON
-
883235052 SEAL, TRIPLE LIP, VITON, 40 X 70 X 7SEAL, TRIPLE LIP, VITON, 40 X 70 X 7
