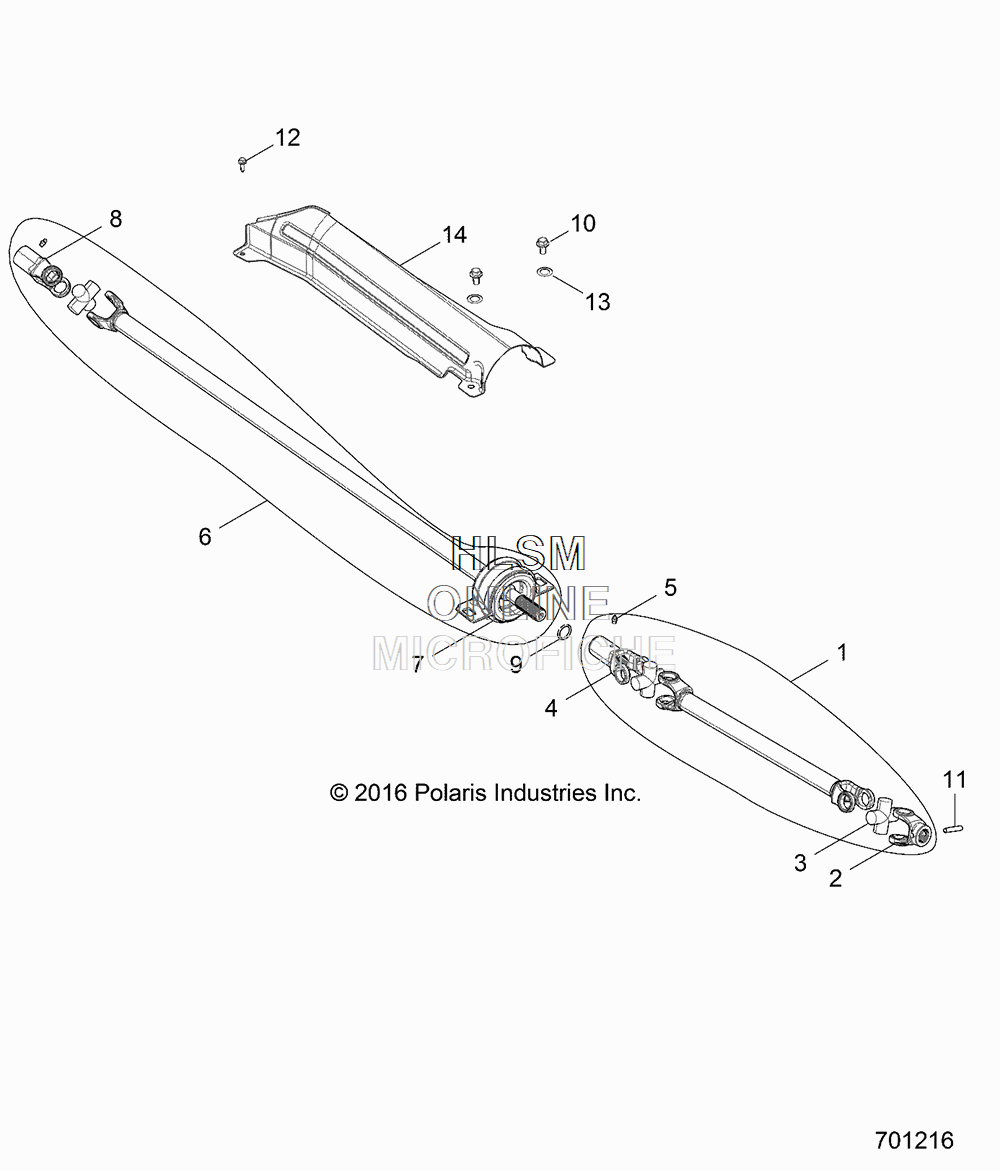

FRONT PROP SHAFT для Polaris RZR XP 4 1000 MD [Z17VFE99NM] - 2017 года выпуска
-
№АртикулНазвание
-
11333194 ASM., PROPSHAFT, FRONT [INCL. 2-5]ASM., PROPSHAFT, FRONT [INCL. 2-5]
-
57080424 FITTINGFITTING
-
61333424 ASM., PROPSHAFT, REAR [INCL. 7, 1 QTY OF 3, 1 QTY OF 5,8]ASM., PROPSHAFT, REAR [INCL. 7, 1 QTY OF 3, 1 QTY OF 5,8]
-
73514900 ASM., BEARING FLEXASM., BEARING FLEX
-
95411965 O-RINGO-RING
-
107518460 BOLT, W/PATCHBOLT, W/PATCH
-
117661913 PIN, SPRINGPIN, SPRING
-
127518529 SCR-M6X1.0X20,HXHD,FLG,TDFM,BLSCR-M6X1.0X20,HXHD,FLG,TDFM,BL
-
137555852 WASHER, FLATWASHER, FLAT
-
145261940-329 BRKT-TANK SUPPORT,INNER,BLKBRKT-TANK SUPPORT,INNER,BLK
