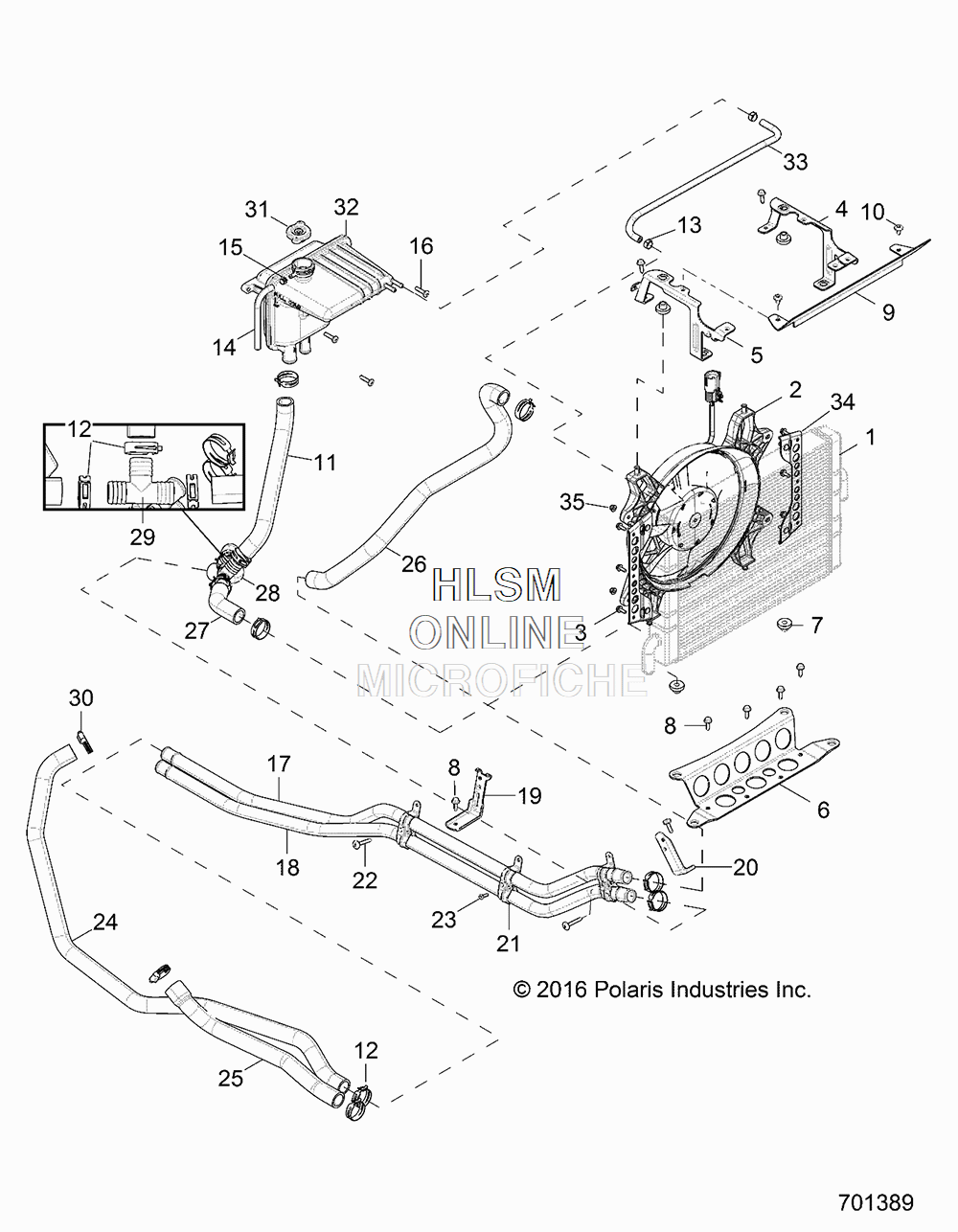

COOLING SYSTEM для Polaris RZR XP 4 TURBO EPS (CRUISER BLACK) [Z17VFE92AK] [Z17VDS92CM] - 2017 года выпуска
-
№АртикулНазвание
-
11241117 ASM-CORE,RADIATORASM-CORE,RADIATOR
-
22413548 ASM-FAN,BRUSHLESSASM-FAN,BRUSHLESS
-
37518591 SCR-HXFL-M6X1.0X16 8.8 ZPBSCR-HXFL-M6X1.0X16 8.8 ZPB
-
45263170-329 BRKT-MOUNT,RADIATOR,LEFT HAND,ECOATBRKT-MOUNT,RADIATOR,LEFT HAND,ECOAT
-
55263171-329 BRKT-MOUNT,RADIATOR,RIGHT HAND,ECOATBRKT-MOUNT,RADIATOR,RIGHT HAND,ECOAT
-
65260767-329 BRKT-MOUNT,RADIATOR,BLKBRKT-MOUNT,RADIATOR,BLK
-
77052028 GROMMET-FLANGED,.36X.56X1.06GROMMET-FLANGED,.36X.56X1.06
-
87518529 SCR-M6X1.0X20,HXHD,FLG,TDFM,BLSCR-M6X1.0X20,HXHD,FLG,TDFM,BL
-
95452630 SHROUD-RADIATOR,UPPERSHROUD-RADIATOR,UPPER
-
107518936 SCR-M6X1X16 TR/TX-MSCR-M6X1X16 TR/TX-M
-
115415443 HOSE-OUT,SURGE TANK TO TEEHOSE-OUT,SURGE TANK TO TEE
-
127080844 SPRINGBAND-CLAMP 35/12,BLKSPRINGBAND-CLAMP 35/12,BLK
-
137080003 HOSE CLAMP, REDHOSE CLAMP, RED
-
145813672 HOSE-IAC,SHORTHOSE-IAC,SHORT
-
157080236 CLAMP-HOSE,(7/16)CLAMP-HOSE,(7/16)
-
167518158 SCR-#14X1 HI/LO-PH-PN TRX-MSCR-#14X1 HI/LO-PH-PN TRX-M
-
175139908 TUBE-COOLANT,1"TUBE-COOLANT,1"
-
185139909 TUBE-COOLANT,1"TUBE-COOLANT,1"
-
195259433-329 BRKT-COOLANT TUBE,BLKBRKT-COOLANT TUBE,BLK
-
205260766-329 BRKT-COOLANT TUBE,BLKBRKT-COOLANT TUBE,BLK
-
215451221 BRACKET-COOLANT TUBEBRACKET-COOLANT TUBE
-
227519001 SCR-M6X1X40,TR/TX-BLKSCR-M6X1X40,TR/TX-BLK
-
237512026 SCR-#10X3/4-HI/LO-PN-T25,TRX-MSCR-#10X3/4-HI/LO-PN-T25,TRX-M
-
245414530 HOSE-ENG OUTLET,REARHOSE-ENG OUTLET,REAR
-
255414976 HOSE-ENG INLET,REARHOSE-ENG INLET,REAR
-
265416028 HOSE-RADIATOR,UPPERHOSE-RADIATOR,UPPER
-
275416030 HOSE-RADIATOR,LWR,FRONTHOSE-RADIATOR,LWR,FRONT
-
285415446 HOSE-RADIATOR,LWR,REARHOSE-RADIATOR,LWR,REAR
-
297052373 CONNECTOR-TEE,1",1",1" BARBEDCONNECTOR-TEE,1",1",1" BARBED
-
307081192 CLAMP-HOSE(WORM DR)25-40MMCLAMP-HOSE(WORM DR)25-40MM
-
311240300 CAP-PRESSURECAP-PRESSURE
-
321240943 WELD-SURGE TANK,DUALWELD-SURGE TANK,DUAL
-
338450120-61 1/4"SAEJ2002,EPDM HOSE,61 CM1/4"SAEJ2002,EPDM HOSE,61 CM
-
341241122-329 WELD-BRKT-MNT,FAN,ECOATWELD-BRKT-MNT,FAN,ECOAT
-
357547339 NUT-M6X1.0,FLG-NYLOC-OLIVE DNUT-M6X1.0,FLG-NYLOC-OLIVE D
