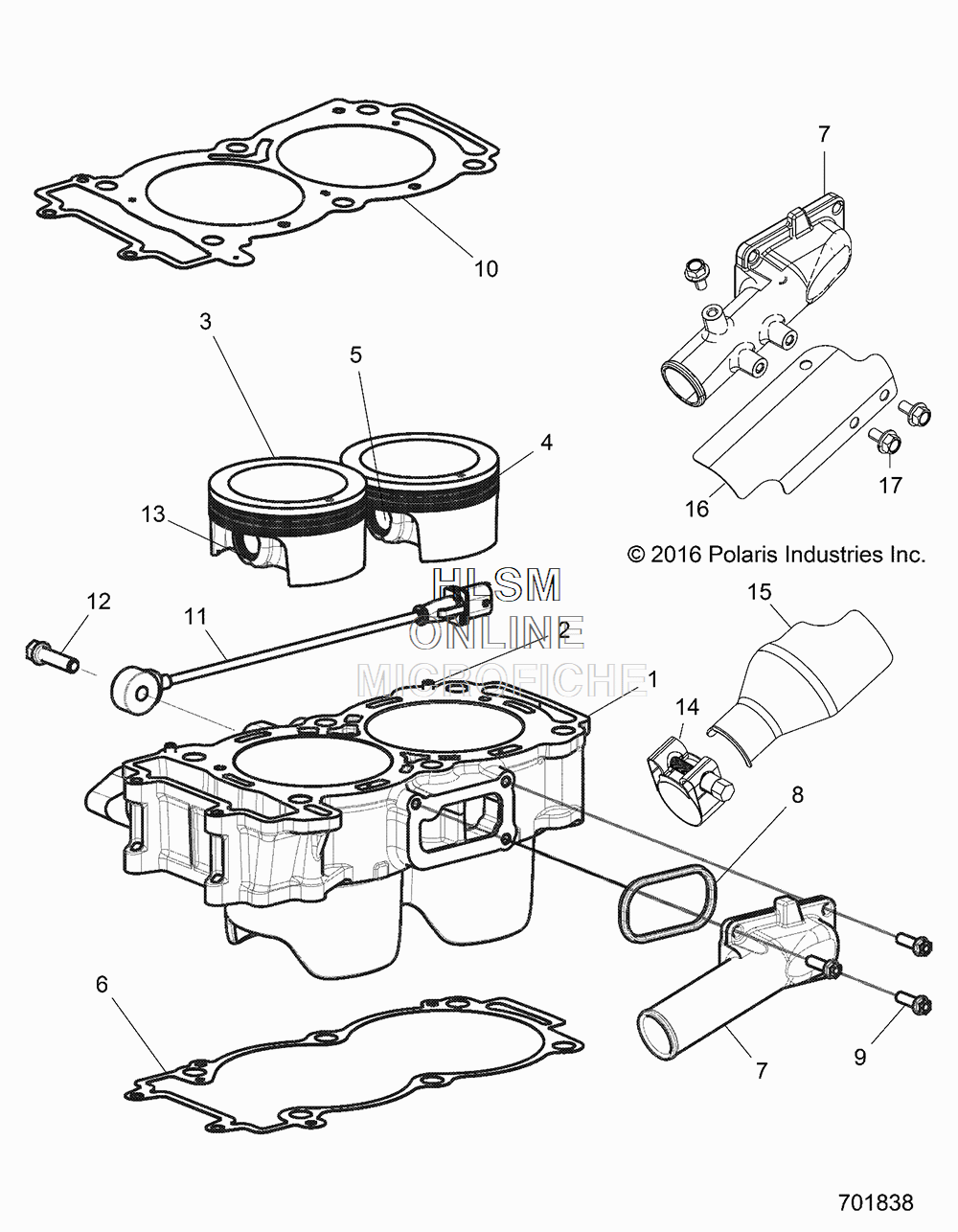

PISTON AND CYLINDER для Polaris RZR XP TURBO EPS CRUISER (BLACK) [Z17VDE92AK] - 2017 года выпуска
-
№АртикулНазвание
-
13023035 ASM., CYLINDER [INCL. 2]ASM., CYLINDER [INCL. 2]
-
25132835 PIN, DOWELPIN, DOWEL
-
32206216 ASM., PISTON [INCL. 4,5,13]ASM., PISTON [INCL. 4,5,13]
-
42206217 KIT, PISTON RINGS [INCL. SET FOR 1 PISTON]KIT, PISTON RINGS [INCL. SET FOR 1 PISTON]
-
53022291 PIN, PISTONPIN, PISTON
-
65253037 GASKET, BASE, 2 CYLGASKET, BASE, 2 CYL
-
75141311 COVER-WATER INLET,MACH [FROM 11/21/16 AND AFTER]COVER-WATER INLET,MACH [FROM 11/21/16 AND AFTER]
-
75632557 COVER, WATER INLET, CAST [TO 11/21/16]COVER, WATER INLET, CAST [TO 11/21/16]
-
85813736 GASKET, WATER, INLETGASKET, WATER, INLET
-
97518576 SCREWSCREW
-
105814437 GASKET, CYLINDER, HEADGASKET, CYLINDER, HEAD
-
112410369 SENSOR-DETONATION BOSCHSENSOR-DETONATION BOSCH
-
127517262 SCREWSCREW
-
137710479 RING-RTNG,RND,22.0X1.6,0600102RING-RTNG,RND,22.0X1.6,0600102
-
143023322 CLAMP-HOSE-SHIELD [BUILT FROM 10/12/16 TO 11/21/16]CLAMP-HOSE-SHIELD [BUILT FROM 10/12/16 TO 11/21/16]
-
155264168 SHIELD HEAT-COOLANT [BUILT FROM 10/12/16 TO 11/21/16]SHIELD HEAT-COOLANT [BUILT FROM 10/12/16 TO 11/21/16]
-
165264204 SHIELD HEAT BOLTED-COOLANT [BUILT 11/22/16 AND AFTER]SHIELD HEAT BOLTED-COOLANT [BUILT 11/22/16 AND AFTER]
-
177520710 SCR-HXFL-M6X1.0X12 8.8 [BUILT 11/22/16 AND AFTER]SCR-HXFL-M6X1.0X12 8.8 [BUILT 11/22/16 AND AFTER]
