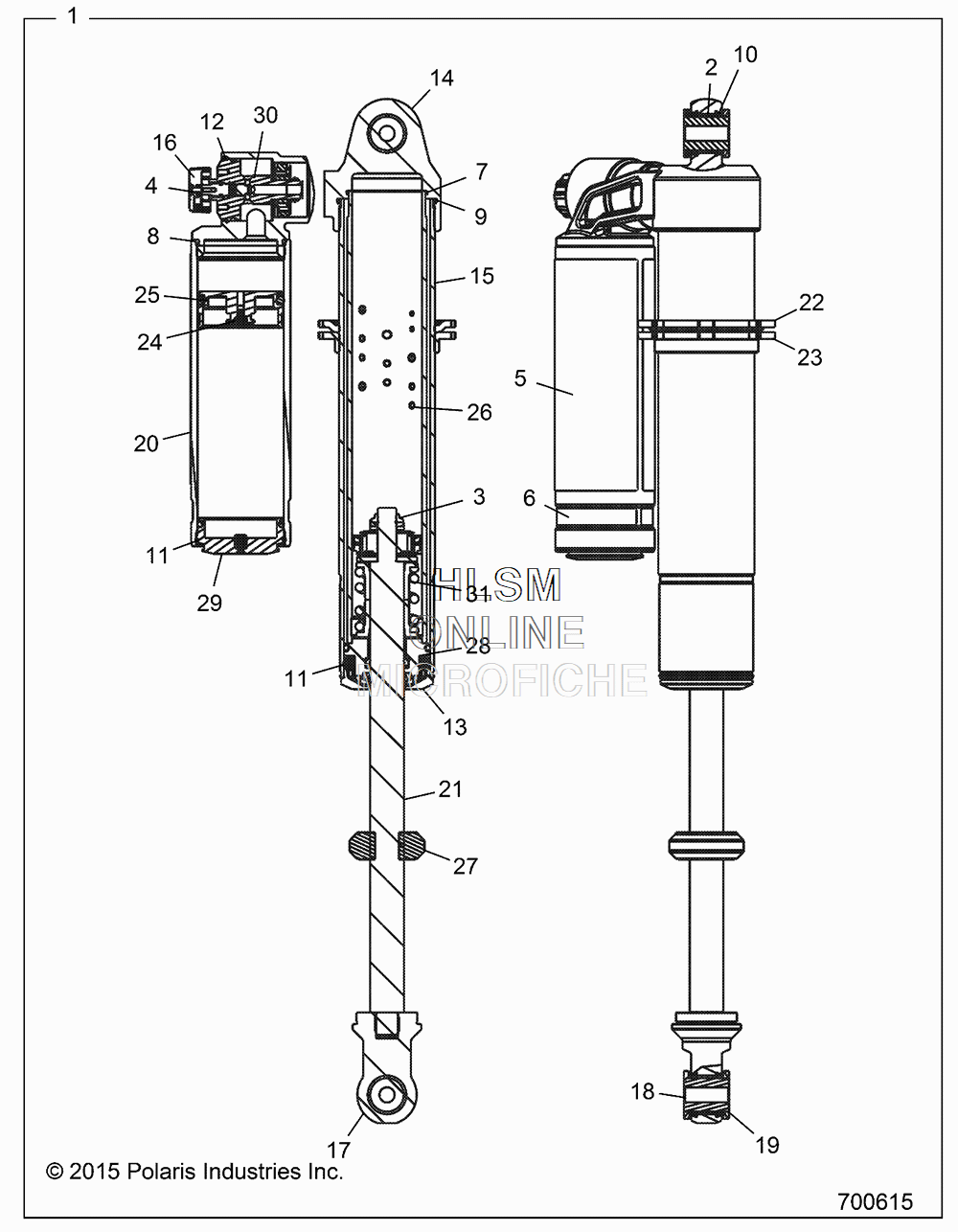

FRONT SHOCK для Polaris RZR XP TURBO EPS CRUISER [Z17VDE92LK] - 2017 года выпуска

№

Артикул

Название
1

1500470 PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH, ?0.620 SHAFT]

PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH, ?0.620 SHAFT]

1 870 ₽
1

1500841 PLATE: BACK-UP [0.875 OD X 0.503 ID X 0.100 TH]

PLATE: BACK-UP [0.875 OD X 0.503 ID X 0.100 TH]

1 460 ₽
1

7044471 SHOCK, FRONT, PIGGYBACK, LEFT HAND [INCL. ALL]

SHOCK, FRONT, PIGGYBACK, LEFT HAND [INCL. ALL]

130 ₽
1

7044472 SHOCK, FRONT, PIGGYBACK, RIGHT HAND [INCL. ALL]

SHOCK, FRONT, PIGGYBACK, RIGHT HAND [INCL. ALL]

130 ₽
2

1501010 BUSHING, EYELET

BUSHING, EYELET

3 020 ₽
3

1500472 FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]

FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]

3 950 ₽
4

1501011 SCREW, #4, SS PAN

SCREW, #4, SS PAN

2 290 ₽
5

1501045 DECAL: RESERVOIR [4.50 X 8.04] INTERNAL BYPASS

DECAL: RESERVOIR [4.50 X 8.04] INTERNAL BYPASS

1 870 ₽
6

1501046 DECAL: BAND [.45 X 7.63] PERFORMANCE SERIES

DECAL: BAND [.45 X 7.63] PERFORMANCE SERIES

880 ₽
7

1501047 SEALS:O-RING [(-033) .070 C.S. X 1.989 ID] STANDARD, N-70, STATIC

SEALS:O-RING [(-033) .070 C.S. X 1.989 ID] STANDARD, N-70, STATIC

2 290 ₽
8

1501048 SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC

SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD, N-70, STATIC

2 290 ₽
9

1501049 SEALS:O-RING [(-143) .103 C.S. X 2.425 ID] STANDARD, N-70, STATIC

SEALS:O-RING [(-143) .103 C.S. X 2.425 ID] STANDARD, N-70, STATIC

2 290 ₽
10

1501014 SEAL, WEATHER

SEAL, WEATHER

1 670 ₽
11

1500960 WIRE, RETAINING RING

WIRE, RETAINING RING

3 120 ₽
12

1501052 RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

2 500 ₽
13

1501053 BEARING CAP: [?2.250 BORE, .?0.875 SHAFT] NO SCRAPER, PRESS-IN, CLEAR ANO II

BEARING CAP: [?2.250 BORE, .?0.875 SHAFT] NO SCRAPER, PRESS-IN, CLEAR ANO II

4 790 ₽
14

1501160 BODY CAP, PB, HI FLOW [USE W/7044471]

BODY CAP, PB, HI FLOW [USE W/7044471]

31 200 ₽
14

1501166 BODY CAP, PB, HI FLOW [USE W/7044472]

BODY CAP, PB, HI FLOW [USE W/7044472]

31 200 ₽
15

1501161 BODY 12.50 TLC CLR

BODY 12.50 TLC CLR

30 160 ₽
16

1501057 DAMPING ADJUST PART: LOW SPEED KNOB [?1.200 OD, .530 TLG] NYLON, BLACK213-01-355

DAMPING ADJUST PART: LOW SPEED KNOB [?1.200 OD, .530 TLG] NYLON, BLACK213-01-355

1 670 ₽
17

1501162 EYELET

EYELET

13 520 ₽
18

1501087 EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

4 160 ₽
19

1501088 EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

880 ₽
20

1501093 RESERVOIR

RESERVOIR

18 720 ₽
21

1501163 SHAFT, .875 X 13.8

SHAFT, .875 X 13.8

35 360 ₽
22

1500955 RING, PRELOAD, BU

RING, PRELOAD, BU

4 160 ₽
23

1500956 RING, PRELOAD

RING, PRELOAD

4 160 ₽
24

1500161 SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE

SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE

1 870 ₽
25

1501060 PISTON ASSEMBLY: FLOATING [?.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND

PISTON ASSEMBLY: FLOATING [?.25 BORE] W/ STD. TEMP O-RING, MAX VOL. BLEED AND

11 440 ₽
26

1501164 INTERNAL BYPASS, 3 PAD

INTERNAL BYPASS, 3 PAD

28 080 ₽
27

1500866 BUMPER: B/O [?0.620 SHAFT, .700 TLG] MCU, BLACK

BUMPER: B/O [?0.620 SHAFT, .700 TLG] MCU, BLACK

6 030 ₽
28

1501095 ASM., SEAL HEAD

ASM., SEAL HEAD

21 840 ₽
29

1501063 RESERVOIR END CAP ASSEMBLY: [?2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC

RESERVOIR END CAP ASSEMBLY: [?2.250 BORE, .940 TLG] PELLET FILL, ALUMINUM, BLAC

6 660 ₽
30

1501064 DAMPING ADJUST ASSEMBLY: LSC ADJUSTER [?1.435 BORE] HIGH FLOW, SLOTTED NEEDLE

DAMPING ADJUST ASSEMBLY: LSC ADJUSTER [?1.435 BORE] HIGH FLOW, SLOTTED NEEDLE

20 800 ₽
31

1501165 ASM., NEG. SPRING GUIDE

ASM., NEG. SPRING GUIDE

4 580 ₽
