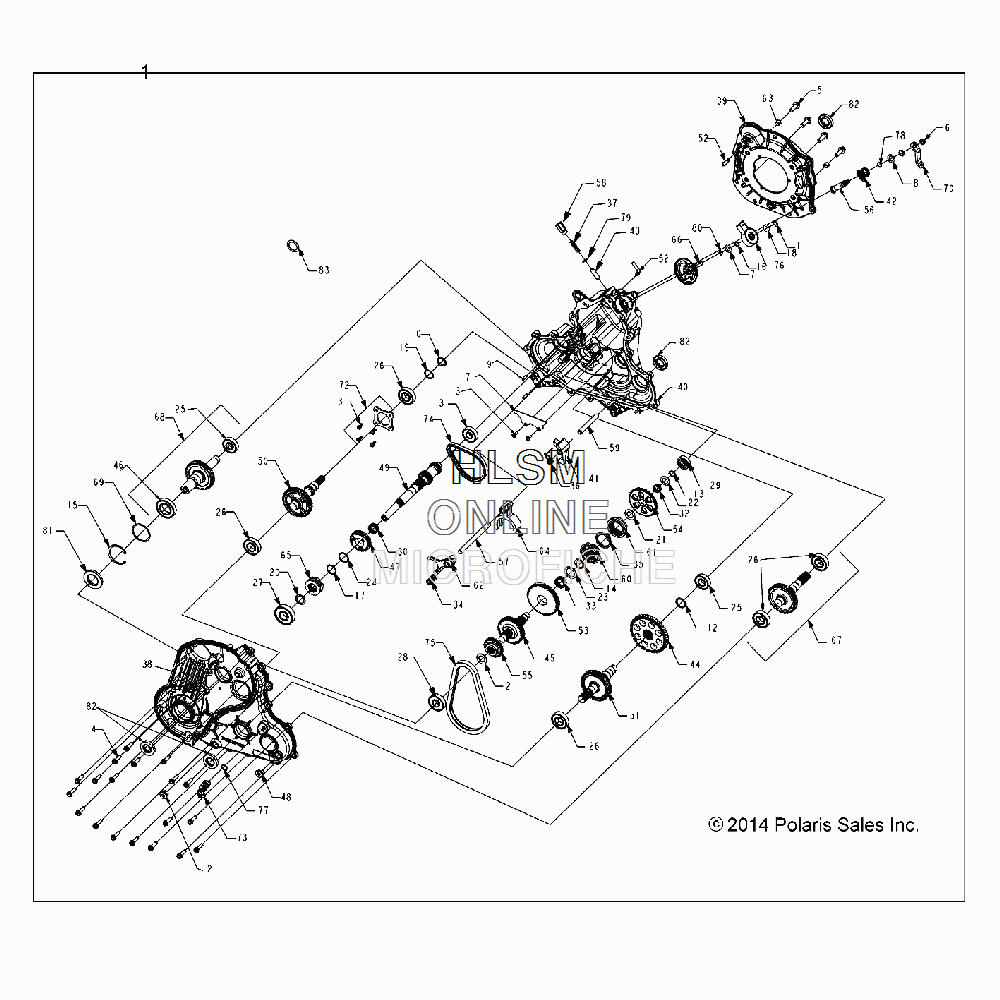

GEARCASE для Polaris SCRAMBLER 1000 MD WHITE LIGHTNING [A17SVA95N2] - 2017 года выпуска
-
№АртикулНазвание
-
11333180 ASM., TRANSMISSION [INCL. ALL LESS 7,19]ASM., TRANSMISSION [INCL. ALL LESS 7,19]
-
23234756 PLUG, SOCKET HEAD W/MAGNETPLUG, SOCKET HEAD W/MAGNET
-
33234309 SCREW, TORXSCREW, TORX
-
43234898 SCREW, HEXSCREW, HEX
-
53234634 SCREW, HEXSCREW, HEX
-
63233961 NUTNUT
-
73234636 WASHER, THRUSTWASHER, THRUST
-
83234637 WASHER, THRUSTWASHER, THRUST
-
93234330 PIN, DOWELPIN, DOWEL
-
103233106 RING, RETAINERRING, RETAINER
-
113233834 RING, SNAPRING, SNAP
-
123233699 RING, RETAININGRING, RETAINING
-
133234318 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
143234327 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
153234741 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
-
163234639 RING, RETAINING,EXTERNALRING, RETAINING,EXTERNAL
-
173234641 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
183234642 WASHER, THRUSTWASHER, THRUST
-
192204343 KIT, LUK INPUT SHAFT PACKKIT, LUK INPUT SHAFT PACK
-
203234248 WASHER THRUSTWASHER THRUST
-
213234643 SHIMSHIM
-
223234644 SHIMSHIM
-
233234646 WASHER, THRUSTWASHER, THRUST
-
243234757 WASHER, THRUSTWASHER, THRUST
-
253233018 BEARING, BALL,BEARING, BALL,
-
263233019 BEARING, BALLBEARING, BALL
-
273233020 BEARING, BALLBEARING, BALL
-
283234651 BEARING, BALLBEARING, BALL
-
293234274 BEARING, BALLBEARING, BALL
-
303234759 BEARING, NEEDLE, SPLIT CAGEBEARING, NEEDLE, SPLIT CAGE
-
313234652 BEARING, BALLBEARING, BALL
-
323234655 BEARING, NEEDLE, CAGE ASSYBEARING, NEEDLE, CAGE ASSY
-
333234656 BEARING, NEEDLEBEARING, NEEDLE
-
343234687 SPRING, COMPRESSIONSPRING, COMPRESSION
-
353234688 SPRING, WAVESPRING, WAVE
-
363234787 SPRING, PARK PAWL, TORSIONSPRING, PARK PAWL, TORSION
-
373234790 SPRING, COMPRESSIONSPRING, COMPRESSION
-
383235507 GEARCASE GTO , COVER, MACH.GEARCASE GTO , COVER, MACH.
-
393235196 BELLHOUSING, MACHBELLHOUSING, MACH
-
403235428 GEARCASE, MAIN, GTO MACHGEARCASE, MAIN, GTO MACH
-
413234692 PAWL, PARKPAWL, PARK
-
423234694 GEAR, SECTOR, 38TGEAR, SECTOR, 38T
-
433234695 BULLET, DETENTBULLET, DETENT
-
443234998 SPROCKET, 44 TOOTHSPROCKET, 44 TOOTH
-
453234774 SHAFT, REVERSE 53TSHAFT, REVERSE 53T
-
463233265 BEARING BALLBEARING BALL
-
473235133 GEAR, HELICAL, 42TGEAR, HELICAL, 42T
-
483234755 PLUGPLUG
-
493235063 SHAFT, INPUT 25T REMSHAFT, INPUT 25T REM
-
503235194 SHAFT, INPUTSHAFT, INPUT
-
513235505 SHAFT, OUTPUT REARSHAFT, OUTPUT REAR
-
523234230 TUBE, VENTTUBE, VENT
-
533234706 GEAR, 67TGEAR, 67T
-
543234707 SPROCKET 48TSPROCKET 48T
-
553234708 SPROCKET, 23TSPROCKET, 23T
-
563234712 SHAFT, SHIFT, BELLCRANKSHAFT, SHIFT, BELLCRANK
-
573234714 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
583234715 PLUG, DETENTPLUG, DETENT
-
593234716 RAIL, PARK SHAFTRAIL, PARK SHAFT
-
603234718 DOG, ENGAGEMENT, GTO, LOWDOG, ENGAGEMENT, GTO, LOW
-
613235341 DOG, ENGAGEMENT, GTO, REV/LOWDOG, ENGAGEMENT, GTO, REV/LOW
-
623235342 FORK, SHIFTFORK, SHIFT
-
633234765 KNOCK PIPEKNOCK PIPE
-
643234766 FORK, SHIFTFORK, SHIFT
-
653235190 DOG, ENGAGEMENT, GTO, HIGHDOG, ENGAGEMENT, GTO, HIGH
-
663234767 SUBASM., SWITCH SHAFTSUBASM., SWITCH SHAFT
-
673235506 SUBASM., OUTPUT, FRONT W/BEARINGSSUBASM., OUTPUT, FRONT W/BEARINGS
-
683235191 SUBASM., PRIMARY SHAFT W/BEARINGSSUBASM., PRIMARY SHAFT W/BEARINGS
-
692204268 KIT, GTO, PRIMARY SHIM PACKKIT, GTO, PRIMARY SHIM PACK
-
703234724 BELLCRANK, 15T SPLINEBELLCRANK, 15T SPLINE
-
713234725 DEFLECTOR, OILDEFLECTOR, OIL
-
723235198 SUBASM., BEARING COVER W/SCREWSSUBASM., BEARING COVER W/SCREWS
-
734012167 SENSOR, SPEEDSENSOR, SPEED
-
743234737 CHAIN, SILENTCHAIN, SILENT
-
753234738 CHAIN SILENTCHAIN SILENT
-
763233835 SWITCH, ROTARYSWITCH, ROTARY
-
773234302 O-RING,O-RING,
-
783233828 O-RINGO-RING
-
793234729 O-RINGO-RING
-
803234730 O-RINGO-RING
-
813234769 SEALSEAL
-
823234892 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
833235508 WASHER, RIBBEDWASHER, RIBBED
