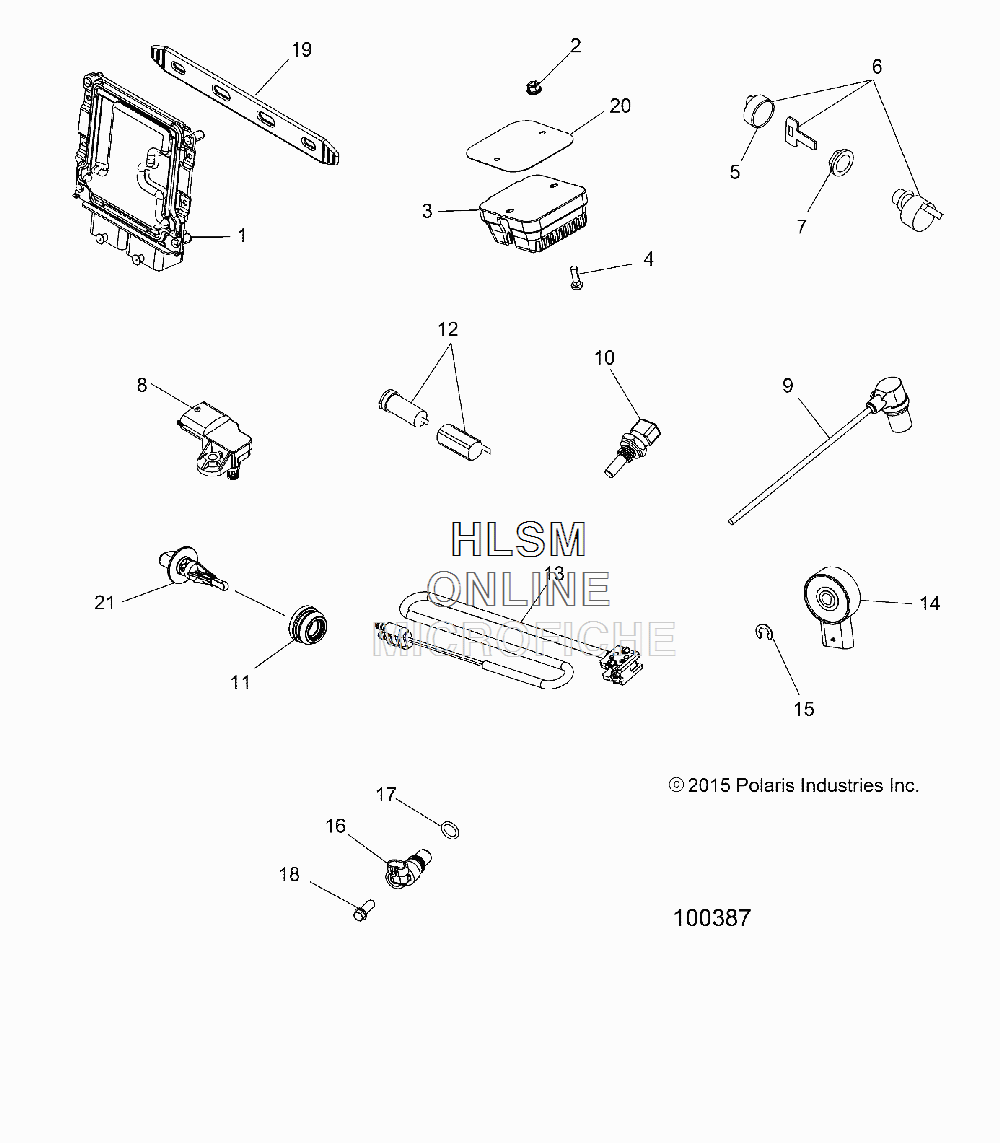

ELECTRICAL COMPONENTS для Polaris SCRAMBLER 1000 TRACTOR WHITE LIGHTNING [A17SVT95C2] - 2017 года выпуска
-
№АртикулНазвание
-
14014125 ECM-NO START,ME17ECM-NO START,ME17
-
27547274 NUT, FLANGENUT, FLANGE
-
34016136 REG-3PH,50A,SERIES,HISPD,TCAPREG-3PH,50A,SERIES,HISPD,TCAP
-
47519121 SCR-HXFLSCR-HXFL
-
55433534 COVER, KEYCOVER, KEY
-
64012166 SWITCH-KEY,4 POS,ATV,MT SLV [INCL. 5]SWITCH-KEY,4 POS,ATV,MT SLV [INCL. 5]
-
75433733 NUT, IGNITIONNUT, IGNITION
-
82411528 SENSOR, T-MAPSENSOR, T-MAP
-
83131753 SCREW-TMAP [USE W/2411528]SCREW-TMAP [USE W/2411528]
-
92411589 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
97518548 SCREWSCREW
-
104010644 SENSOR, THERMISTORSENSOR, THERMISTOR
-
115436346 GROMMET, AIR TEMP SENSORGROMMET, AIR TEMP SENSOR
-
124010638 RECEPTACLE, POD, 12 VRECEPTACLE, POD, 12 V
-
132202794 KIT, BRAKE LIGHT SWITCHKIT, BRAKE LIGHT SWITCH
-
143233835 SWITCH [GEAR POSITION]SWITCH [GEAR POSITION]
-
153233834 RING, RETAININGRING, RETAINING
-
164013908 SENSOR, SPEEDSENSOR, SPEED
-
173234302 O-RINGO-RING
-
183234329 SCREWSCREW
-
195414193 STRAP, ECUSTRAP, ECU
-
205253294 COVER, VOLTAGE REGULATORCOVER, VOLTAGE REGULATOR
-
212410687 SENSOR, AIR TEMPSENSOR, AIR TEMP
