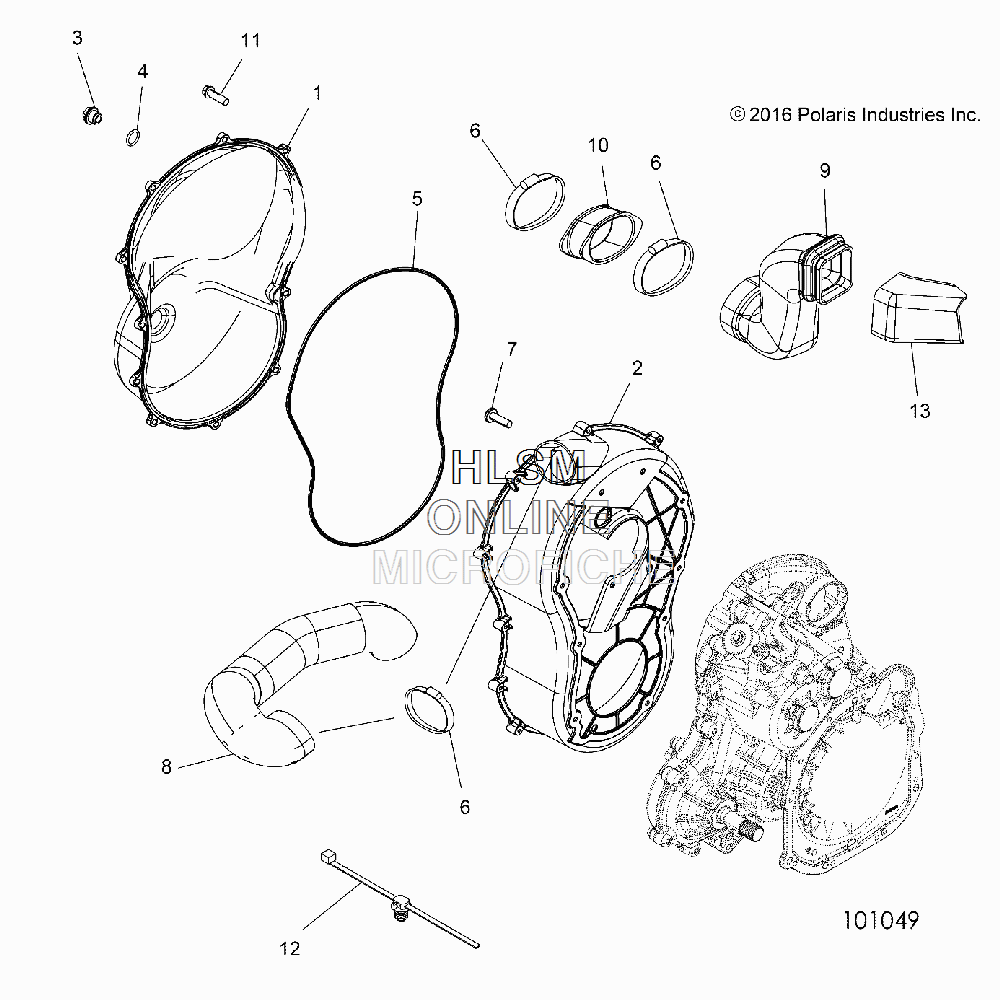

CLUTCH COVER для Polaris SCRAMBLER 850 WHITE LIGHTNING [A17SVA85A2] - 2017 года выпуска
-
№АртикулНазвание
-
12633919 ASM., COVER, OUTER [INCL. OUTER COVER,3,4]ASM., COVER, OUTER [INCL. OUTER COVER,3,4]
-
25438127 COVER, CLUTCH INNERCOVER, CLUTCH INNER
-
35434264 PLUG, DRAINPLUG, DRAIN
-
45410542 O-RINGO-RING
-
55521802 SEAL, COVER, CLUTCHSEAL, COVER, CLUTCH
-
67081279 CLAMP-BAND,NARROW 70-90MMCLAMP-BAND,NARROW 70-90MM
-
77520472 SCR-M6X1.0X14,PN/TXSCR-M6X1.0X14,PN/TX
-
85415566 DUCT-OUTLET,CLUTCHDUCT-OUTLET,CLUTCH
-
95436820 DUCT, AIR INLETDUCT, AIR INLET
-
105413177 BOOT, CLUTCH, INLETBOOT, CLUTCH, INLET
-
117519849 SCREWSCREW
-
127082264 CLIP-DUCT,OUTLETCLIP-DUCT,OUTLET
-
135413516 BOOT, INLET, DUCTBOOT, INLET, DUCT
