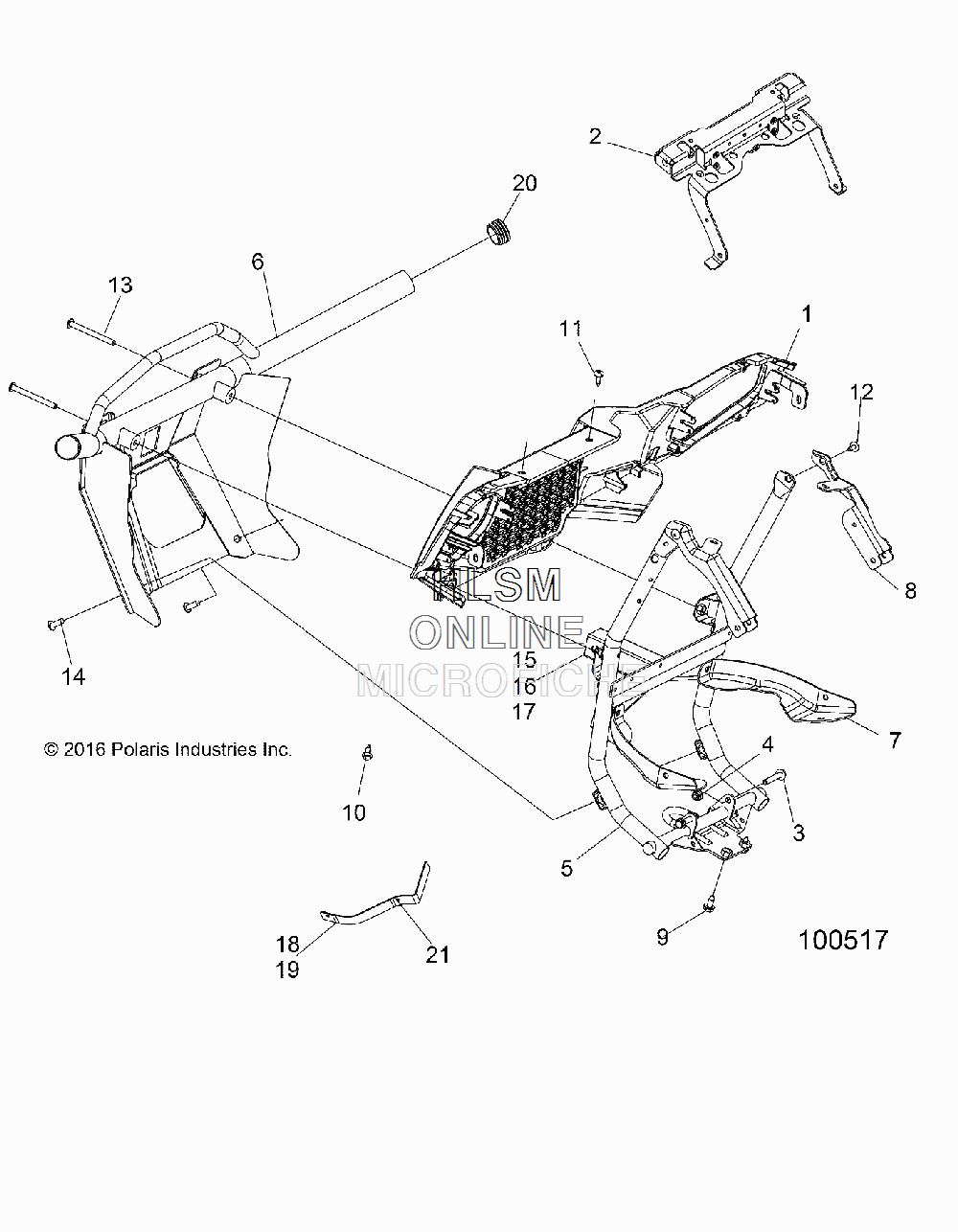

BUMPER - FRONT для Polaris SPORTSMAN 450 W/ REAR RACK MAROON [A17SEGA4] - 2017 года выпуска
-
№АртикулНазвание
-
15438559-070 BUMPER-FRONT FASCIA,BLKBUMPER-FRONT FASCIA,BLK
-
25259852 BRACKET, RADIATOR, UPPERBRACKET, RADIATOR, UPPER
-
37518341 BOLT, FLANGEBOLT, FLANGE
-
47542343 NUT, FLANGENUT, FLANGE
-
51022511-067 WELD-BUMPER,FRONT,BLKWELD-BUMPER,FRONT,BLK
-
61022574-458 WELD-BUMPER,FRONT,MATTE BLKWELD-BUMPER,FRONT,MATTE BLK
-
75262782-067 BRKT-RAD SUPPORT,LH,BLKBRKT-RAD SUPPORT,LH,BLK
-
75262783-067 BRKT-RAD SUPPORT,RH,BLKBRKT-RAD SUPPORT,RH,BLK
-
85263043-067 BRKT-FASCIA,SUPPORT,UPR,LH,BLKBRKT-FASCIA,SUPPORT,UPR,LH,BLK
-
85263044-067 BRKT-FASCIA,SUPPORT,UPR,RH,BLKBRKT-FASCIA,SUPPORT,UPR,RH,BLK
-
97515399 SCREWSCREW
-
107661855 RIVETRIVET
-
117517685 SCREWSCREW
-
127519092 SCREWSCREW
-
137518215 SCR-5/16-18X3.25 TX-MSCR-5/16-18X3.25 TX-M
-
147518216 SCR-5/16-18X7/8 TX-MSCR-5/16-18X7/8 TX-M
-
155453632-070 PLUG-HITCH,BLKPLUG-HITCH,BLK
-
167661067 CLIP-HITCHPIN .148X3 1/16CLIP-HITCHPIN .148X3 1/16
-
177661878 PIN-CLEVIS,1/2 X 1 3/4PIN-CLEVIS,1/2 X 1 3/4
-
185261969-067 BRKT-REFLECTOR,FRONT,LH,BLKBRKT-REFLECTOR,FRONT,LH,BLK
-
195261970-067 BRKT-REFLECTOR,FRONT,RH,BLKBRKT-REFLECTOR,FRONT,RH,BLK
-
205433305 CAP-BUMPER,ENDCAP-BUMPER,END
-
217518238 SCR-10X5/8-HI/LO,PN-T25,TRX-MSCR-10X5/8-HI/LO,PN-T25,TRX-M
