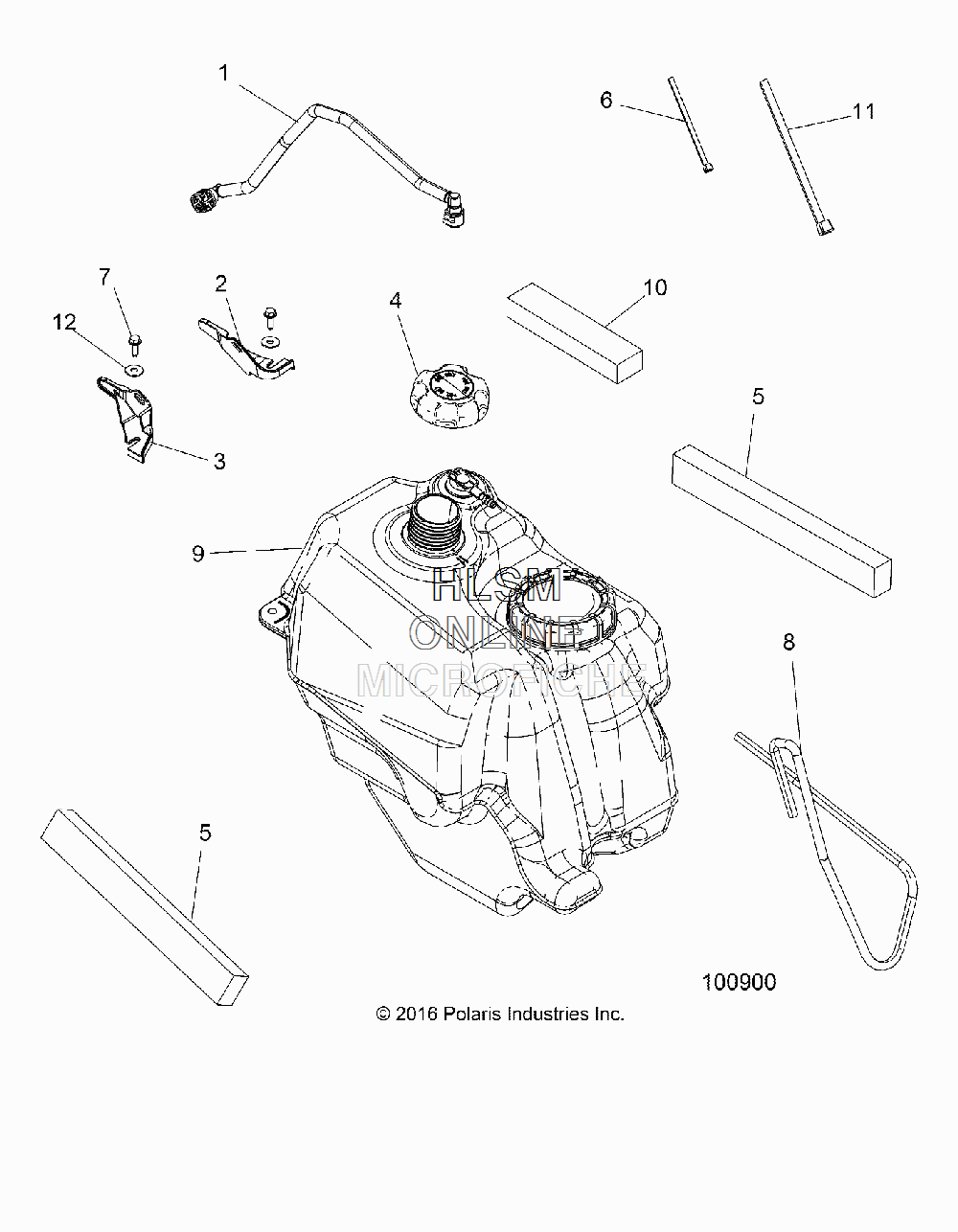

FUEL TANK для Polaris SPORTSMAN 570 EFI INDY RED [A17SEA57A7] - 2017 года выпуска
-
№АртикулНазвание
-
12521664 ASM-FUEL LINE,HARDASM-FUEL LINE,HARD
-
25452276 BRACKET, SEAT BASE, CAB MOUNT, LHBRACKET, SEAT BASE, CAB MOUNT, LH
-
35452277 BRACKET, SEAT BASE, CAB MOUNT, RHBRACKET, SEAT BASE, CAB MOUNT, RH
-
45439075 CAP, GAS TANKCAP, GAS TANK
-
55813255 FOAM, SEALFOAM, SEAL
-
67080138 PANDUIT STRAPPANDUIT STRAP
-
77515179 SCREWSCREW
-
88450040-600 LINE, FUELLINE, FUEL
-
92521713 ASM-FUEL TANK,570 EFIASM-FUEL TANK,570 EFI
-
105813265 FOAM, COVERFOAM, COVER
-
117080761 STRAP-PANDUIT,14"STRAP-PANDUIT,14"
-
127555960 WASHERWASHER
