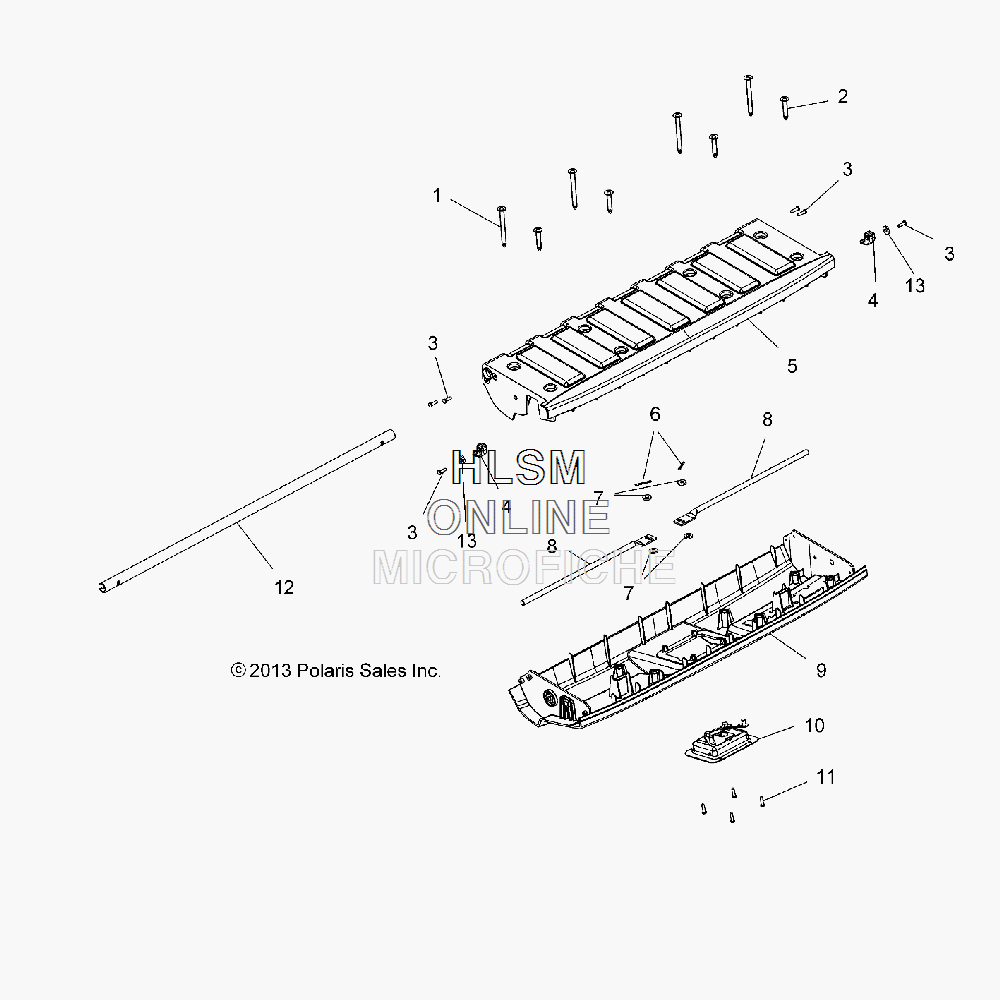

TAILGATE для Polaris SPORTSMAN 570 EFI UTE VELOCITY BLUE [A17SUH57N5] - 2017 года выпуска
-
№АртикулНазвание
-
17518357 SCREWSCREW
-
27518356 SCREWSCREW
-
37518922 SCREWSCREW
-
45413668 BUMPER, TAILGATEBUMPER, TAILGATE
-
55437272-070 TAILGATE, INNER, BLACKTAILGATE, INNER, BLACK
-
67661644 PIN, HITCHPIN, HITCH
-
77556492 WASHER, SHOULDERWASHER, SHOULDER
-
85136783 ROD, LATCH TAILGATEROD, LATCH TAILGATE
-
95437273-070 TAILGATE, OUTER, BLACKTAILGATE, OUTER, BLACK
-
107081420 LATCH, PADDLE, TAILGATELATCH, PADDLE, TAILGATE
-
117518227 SCREWSCREW
-
125335828-329 TUBE, PIVOT TAILGATETUBE, PIVOT TAILGATE
-
137555792 WASHERWASHER
