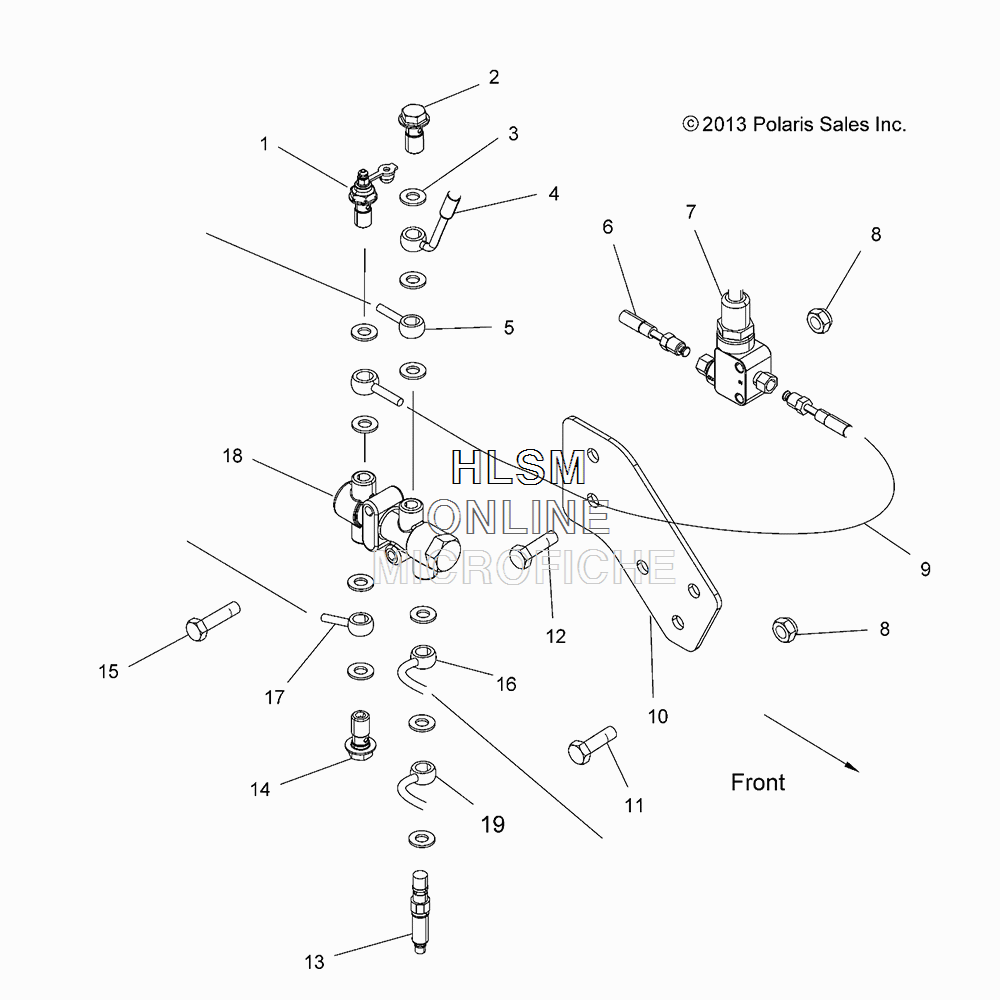

BRAKE - VALVE SYSTEM для Polaris SPORTSMAN 570 EPS ZUG SAGE BRUSH GREEN METALLIC [A17SES57F1] - 2017 года выпуска
-
№АртикулНазвание
-
11911112 BOLT, BANJO W/BLEEDERBOLT, BANJO W/BLEEDER
-
21911194 BOLT, BANJO, DOUBLEBOLT, BANJO, DOUBLE
-
35413212 SEALSEAL
-
41912207 LINE, BRAKELINE, BRAKE
-
51912205 LINE, BRAKE, REAR, AUX.LINE, BRAKE, REAR, AUX.
-
61912204 LINE, BRAKE, REARLINE, BRAKE, REAR
-
71911109 VALVE, REDUCINGVALVE, REDUCING
-
87542122 NUT, NYLOKNUT, NYLOK
-
91911200 LINE, J/B TO P/VALVELINE, J/B TO P/VALVE
-
105258389-329 PLATE, BRAKE VALVE, BLACKPLATE, BRAKE VALVE, BLACK
-
117512126 BOLTBOLT
-
127512130 SCREWSCREW
-
134014262 SWITCHSWITCH
-
141910499 BOLT, BANJOBOLT, BANJO
-
157517451 SCREWSCREW
-
161912208 LINE, FRONT RIGHT, BRAKELINE, FRONT RIGHT, BRAKE
-
171912206 LINE, FOOT BRAKELINE, FOOT BRAKE
-
181911185 BLOCK, DISTRIBUTIONBLOCK, DISTRIBUTION
-
191912231 LINE, FRONT LEFT, BRAKELINE, FRONT LEFT, BRAKE
