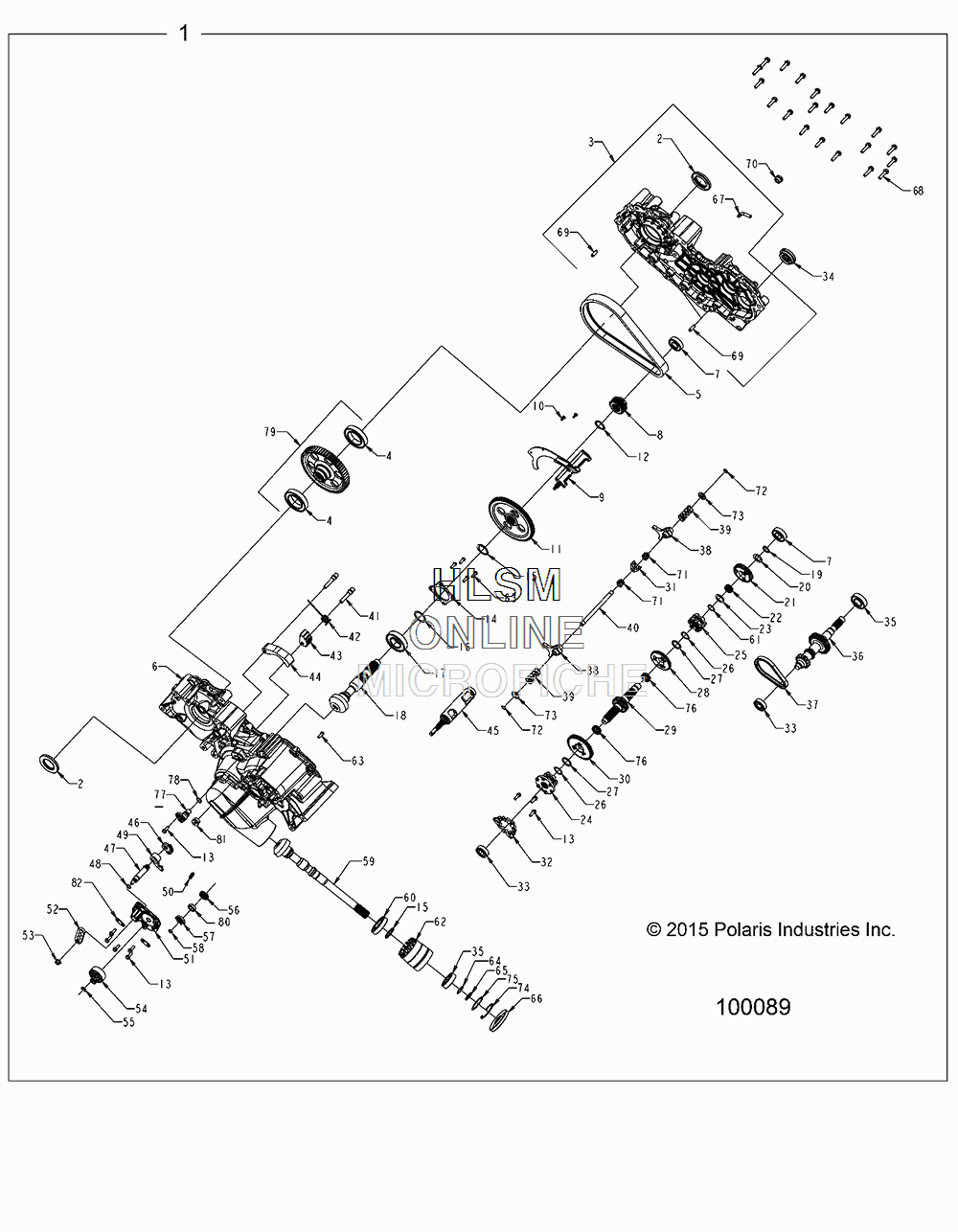

GEARCASE для Polaris SPORTSMAN 570 EPS ZUG STEALTH BLACK [A17SES57FL] - 2017 года выпуска

№

Артикул

Название
1

1333474 ASM-TRANS,PDS,NO DIFF,BOSS [INCL. ALL]

ASM-TRANS,PDS,NO DIFF,BOSS [INCL. ALL]

520 ₽
2

3234300 SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

4 370 ₽
2

3234300 SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

4 370 ₽
3

3235605 SUBASSEMBLY, LH COVER, PDS EAGLE

SUBASSEMBLY, LH COVER, PDS EAGLE

85 280 ₽
4

3233268 BEARING, BALL 6010 C3 50 X 80 X 10

BEARING, BALL 6010 C3 50 X 80 X 10

12 480 ₽
5

3234057 CHAIN, SILENT 17 WIDE X 1.0 X86P

CHAIN, SILENT 17 WIDE X 1.0 X86P

49 920 ₽
6

3235606 GEARCASE, RH MACH

GEARCASE, RH MACH

112 010 ₽
7

3233018 BEARING, BALL 6204 20 X 47 X 14

BEARING, BALL 6204 20 X 47 X 14

6 240 ₽
8

3234060 SPROCKET, 19T

SPROCKET, 19T

52 000 ₽
9

3234061 DEFLECTOR, OIL

DEFLECTOR, OIL

2 710 ₽
10

3233749 SCREW, TAPPING TORX, 8-32 X .50

SCREW, TAPPING TORX, 8-32 X .50

460 ₽
11

3234062 GEAR OUTPUT 91T, HRC

GEAR OUTPUT 91T, HRC

51 690 ₽
12

3233699 RTNG RING, 1RR 7200-118

RTNG RING, 1RR 7200-118

540 ₽
13

3234247 SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75

SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75

750 ₽
14

3234063 COVER, BEARING, CENTER DRIVE

COVER, BEARING, CENTER DRIVE

2 910 ₽
15

3233364 RING, RETAINING SHAFT, DIA. 1.375

RING, RETAINING SHAFT, DIA. 1.375

670 ₽
16

3234271 SHIM 1.700 X 1.385

SHIM 1.700 X 1.385

2 140 ₽
17

3234065 BEARING, BALL 6207 C3 35X72X17

BEARING, BALL 6207 C3 35X72X17

11 440 ₽
18

3234263 PINION, 13T CENTER DRIVE

PINION, 13T CENTER DRIVE

79 040 ₽
19

3234067 RING, RETAINING BASIC EXTERNAL .787 SHAFT

RING, RETAINING BASIC EXTERNAL .787 SHAFT

1 250 ₽
20

3233176 WASHER THRUST, 1.270 X .793 X .065

WASHER THRUST, 1.270 X .793 X .065

1 460 ₽
21

3235783 GEAR, 35T HELICAL

GEAR, 35T HELICAL

27 310 ₽
22

3233009 BEARING, NEEDLE CAGE ASSY

BEARING, NEEDLE CAGE ASSY

8 950 ₽
23

3233855 WASHER, 1.250 X .876 X .050

WASHER, 1.250 X .876 X .050

1 670 ₽
24

3234257 DOG, L/P

DOG, L/P

27 000 ₽
25

3234258 ENGAGEMENT DOG, 6-FACE

ENGAGEMENT DOG, 6-FACE

18 370 ₽
26

3233306 RING, RETAINING

RING, RETAINING

460 ₽
27

3234248 WASHER 1.300 X .995 X .065

WASHER 1.300 X .995 X .065

1 460 ₽
28

3234290 SPROCKET, 38T 6-FACE

SPROCKET, 38T 6-FACE

33 280 ₽
29

3234280 SHAFT, REVERSE 26T

SHAFT, REVERSE 26T

54 080 ₽
30

3234291 GEAR, 33T 6-FACE

GEAR, 33T 6-FACE

34 490 ₽
31

3234073 COLLAR, SHIFT

COLLAR, SHIFT

4 990 ₽
32

3233915 PLATE, PARK 12-FACE

PLATE, PARK 12-FACE

5 830 ₽
33

3234274 BEARING, BALL 6203 17 X 40 X 12

BEARING, BALL 6203 17 X 40 X 12

6 450 ₽
34

3234851 SEAL, TRIPLE LIP 25 X 47 VITON

SEAL, TRIPLE LIP 25 X 47 VITON

4 990 ₽
35

3233019 BEARING, BALL 6205 C3 25 X 52 X 15

BEARING, BALL 6205 C3 25 X 52 X 15

7 280 ₽
36

3235782 SHAFT, 39T INPUT HELICAL

SHAFT, 39T INPUT HELICAL

47 840 ₽
37

3234264 CHAIN .25P X .40W X 50L

CHAIN .25P X .40W X 50L

17 680 ₽
38

3234077 FORK, SHIFT

FORK, SHIFT

33 280 ₽
39

3234078 COMPRESSION, SPRING .92 O.D X 2.000

COMPRESSION, SPRING .92 O.D X 2.000

1 870 ₽
40

3234079 RAIL, SHIFT SHAFT

RAIL, SHIFT SHAFT

2 500 ₽
41

3233432 PIN, TENSIONER

PIN, TENSIONER

1 000 ₽
42

3233431 TORSION SPRING

TORSION SPRING

4 160 ₽
43

3233434 CAM, CHAIN TENSIONER

CAM, CHAIN TENSIONER

2 190 ₽
44

3233433 SHOE, CHAIN TENSIONER

SHOE, CHAIN TENSIONER

4 990 ₽
45

3234360 DRUM, SHIFT MACH

DRUM, SHIFT MACH

33 280 ₽
46

3233832 GEAR, SECTOR 31T

GEAR, SECTOR 31T

3 910 ₽
47

3233831 SHAFT, SHIFT

SHAFT, SHIFT

11 440 ₽
48

3233869 O-RING, -014

O-RING, -014

460 ₽
49

3233829 PAWL, DETENT

PAWL, DETENT

4 580 ₽
50

3234578 SPRING, COMPRESSION DETENT

SPRING, COMPRESSION DETENT

1 460 ₽
51

3234188 COVER, SECTOR GEAR MACH

COVER, SECTOR GEAR MACH

21 840 ₽
52

3234584 BELLCRANK, .510 HOLE, 92~

BELLCRANK, .510 HOLE, 92~

2 910 ₽
53

3233961 NUT, LOCK, HEX FLANGE NYLON 5/16-24

NUT, LOCK, HEX FLANGE NYLON 5/16-24

670 ₽
54

7661999 SWITCH, ROTARY 2-PIN RESISTIVE

SWITCH, ROTARY 2-PIN RESISTIVE

20 800 ₽
55

3233834 RING, SNAP

RING, SNAP

1 670 ₽
56

3233839 GEAR, SECTOR 16T

GEAR, SECTOR 16T

3 910 ₽
57

3233909 STAR, DETENT

STAR, DETENT

2 910 ₽
58

3233076 O-RING, 2-012

O-RING, 2-012

1 670 ₽
59

3234262 GEAR, 13T SNORKEL

GEAR, 13T SNORKEL

60 320 ₽
60

3233265 BEARING, BALL 6007 C3 35 X 62 X 14

BEARING, BALL 6007 C3 35 X 62 X 14

9 570 ₽
61

3234336 RING, RETAINING BASIC EXT N.84

RING, RETAINING BASIC EXT N.84

750 ₽
62

3234278 TUBE, SNORKEL MACH

TUBE, SNORKEL MACH

19 760 ₽
63

3234086 SCREW, TORX PAN HD 1/4-20 X .75

SCREW, TORX PAN HD 1/4-20 X .75

750 ₽
64

3234272 SHIM 1.180 OD X .995 ID

SHIM 1.180 OD X .995 ID

4 540 ₽
65

3233106 RING, RETAINING BASIC EXTERNAL .984

RING, RETAINING BASIC EXTERNAL .984

670 ₽
66

3234113 SEAL, TRIPLE LIP, 25 X 80 X 10

SEAL, TRIPLE LIP, 25 X 80 X 10

4 990 ₽
67

3234230 TUBE, VENT 90~ 1/4" HOSE

TUBE, VENT 90~ 1/4" HOSE

1 460 ₽
68

3234114 SCREW, TAPPING, WASHER HD 5/16-18 X 1.25

SCREW, TAPPING, WASHER HD 5/16-18 X 1.25

1 000 ₽
69

3234244 PIN, 5/16 X 1.0

PIN, 5/16 X 1.0

750 ₽
70

3233194 PLUG, 3/4-16, 5/16 INTERNAL HEX

PLUG, 3/4-16, 5/16 INTERNAL HEX

2 910 ₽
71

3234089 SPRING COMPRESSION .46 I.D. X .73

SPRING COMPRESSION .46 I.D. X .73

2 710 ₽
72

3234090 RING, RETAINING BASIC EXTERNAL .428

RING, RETAINING BASIC EXTERNAL .428

1 670 ₽
73

3234091 WASHER, CUP

WASHER, CUP

1 460 ₽
74

3234269 RING, RETAINING BASIC INTERNAL 2.047

RING, RETAINING BASIC INTERNAL 2.047

1 460 ₽
75

3234273 SHIM, 2.040 OD X 1.63 ID

SHIM, 2.040 OD X 1.63 ID

1 730 ₽
76

3233103 BEARING, NEEDLE 25 X 29 X 10

BEARING, NEEDLE 25 X 29 X 10

6 660 ₽
77

4013908 SENSOR, SPEED

SENSOR, SPEED

15 600 ₽
78

3234302 O-RING, -113

O-RING, -113

880 ₽
79

3235604 SUB-ASSY, SHAFT, 59T FINAL OUTPUT 1.00" WITH BEARING

SUB-ASSY, SHAFT, 59T FINAL OUTPUT 1.00" WITH BEARING

54 080 ₽
80

3235243 SPACER

SPACER

1 460 ₽
81

3234529 PLUG, 3/4-16 HOLLOW HEX

PLUG, 3/4-16 HOLLOW HEX

2 910 ₽
82

3235350 BRACKET, WIRE HARNESS

BRACKET, WIRE HARNESS

1 250 ₽
