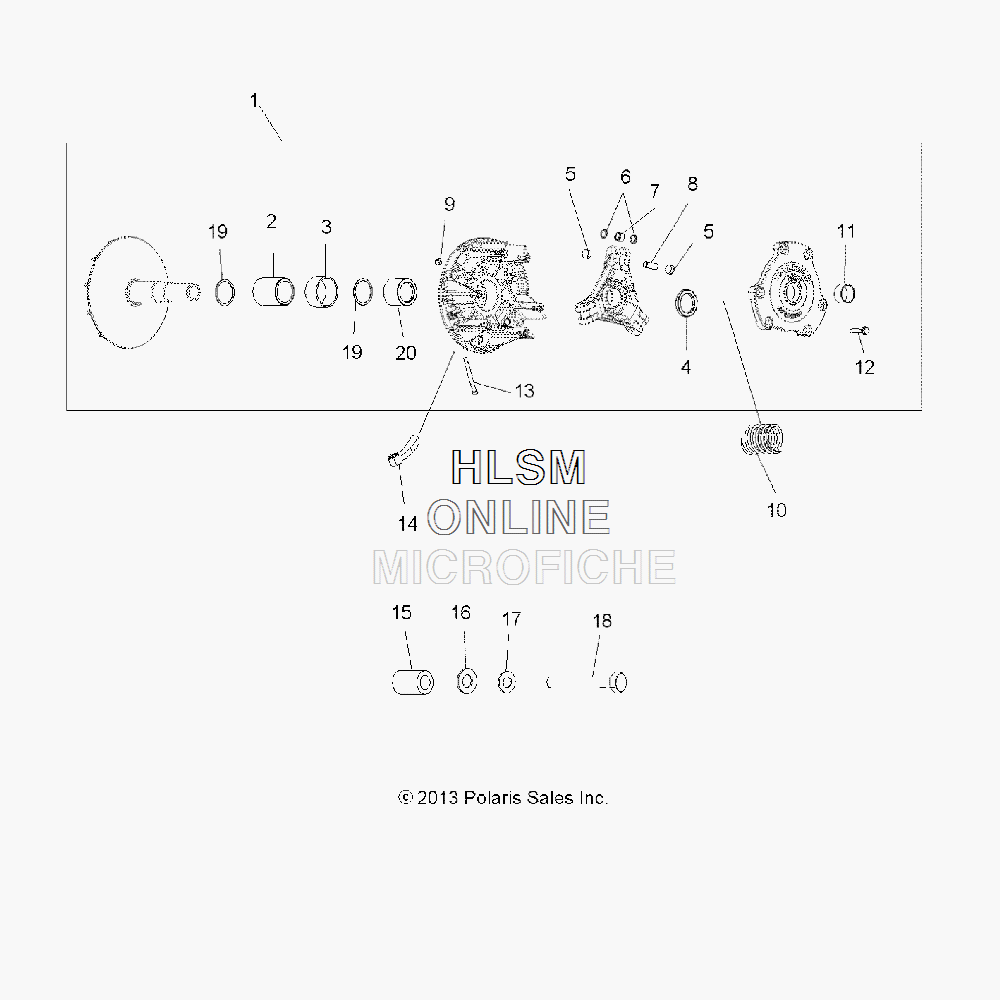

CLUTCH - PRIMARY для Polaris SPORTSMAN 570 SP EPS SUNSET RED [A17SHD57EAS] - 2017 года выпуска
-
№АртикулНазвание
-
11323063 ASM., DRIVE CLUTCH [INCL. 1-9,11-13,19]ASM., DRIVE CLUTCH [INCL. 1-9,11-13,19]
-
21521172 ASM., CLUTCH, ONEWAYASM., CLUTCH, ONEWAY
-
33514492 BEARINGBEARING
-
45450770 SPACER, CLUTCH, LIMITERSPACER, CLUTCH, LIMITER
-
55439254 BUTTON, CLUTCHBUTTON, CLUTCH
-
65438247 WASHER, CLUTCH, SPIDER ROLLERWASHER, CLUTCH, SPIDER ROLLER
-
71321457 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
85020422 PIN, ROLLERPIN, ROLLER
-
97541906 NUT, FLEXLOCNUT, FLEXLOC
-
107043594 SPRING, CLUTCHSPRING, CLUTCH
-
113514684 COVER, BEARINGCOVER, BEARING
-
127518062 SCREWSCREW
-
137512266 BOLT, SHOULDERBOLT, SHOULDER
-
145632409 WEIGHT, SHIFTWEIGHT, SHIFT
-
155430261 BUSHINGBUSHING
-
165210748 WASHERWASHER
-
177575202 WASHER, LOCKWASHER, LOCK
-
187519287 BOLTBOLT
-
197556335 WASHERWASHER
-
205633037 SPACER, CLUTCHSPACER, CLUTCH
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY
- BRAKE - FRONT CALIPER
- BRAKE - FRONT CALIPER MOUNT
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - PEDAL W/ MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE LINES
- BRUSHGUARD
- BUMPER - FRONT
- CAB - FRONT W/ SIDE PANELS
- CAB - FRONT W/ STORAGE
- CAB - REAR - SEAT W/ FOOTWELLS
- CAM CHAIN W/ SPROCKET
- • CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON AND BALANCE SHAFT
- CYLINDER
- CYLINDER HEAD - CAM - VALVES
- DECALS
- DRIVESHAFT - FRONT
- DRIVESHAFT - REAR (FROM 8/29/16)
- DRIVESHAFT - REAR (TO 8/29/16)
- ELECTRICAL - BULBS
- ELECTRICAL - WIRING HARNESS- MAIN
- ELECTRICAL COMPONENTS
- ENGINE - LONG BLOCK
- ENGINE - MOUNTING
- EXHAUST SYSTEM
- FRAME
- FUEL INJECTOR O-RINGS
- FUEL TANK
- GAUGES AND INDICATORS
- GEAR SELECTOR
- GEARCASE
- GEARCASE - FRONT
- GEARCASE - FRONT - MOUNTING
- GEARCASE - MAIN - MOUNTING
- GUN BOOT
- HANDLEBAR - CONTROL ASSY.
- HEADLIGHT
- HEADLIGHT POD
- IGNITION COIL W/ WIRE AND SPARK PLUG
- MANUAL - OWNERS
- OIL FILTER AND DIPSTICK
- OIL PUMP
- PROP SHAFT - FRONT
- RACK - REAR
- SIDE PANEL - RIGHT W/ HEAT SHIELD AND 1 UP HARDWARE
- STARTING MOTOR
- STATOR COVER AND FLYWHEEL
- STEERING ASM. - EPS
- STORAGE BOX - REAR
- SUSPENSION - FRONT FOX SHOCK
- SUSPENSION - REAR
- SUSPENSION - TORSION BAR
- SUSPENSION- FRONT
- TAIL LIGHT
- THERMOSTAT W/ COVER
- THROTTLE ASSEMBLY
- THROTTLE BODY W/ FUEL RAIL
- TOOL KIT
- VALVE COVER
- WATER PUMP IMPELLER W/ COVER
- WHEEL - FRONT W/ BRAKE DISK
- WHEEL - REAR W/ BRAKE DISK
