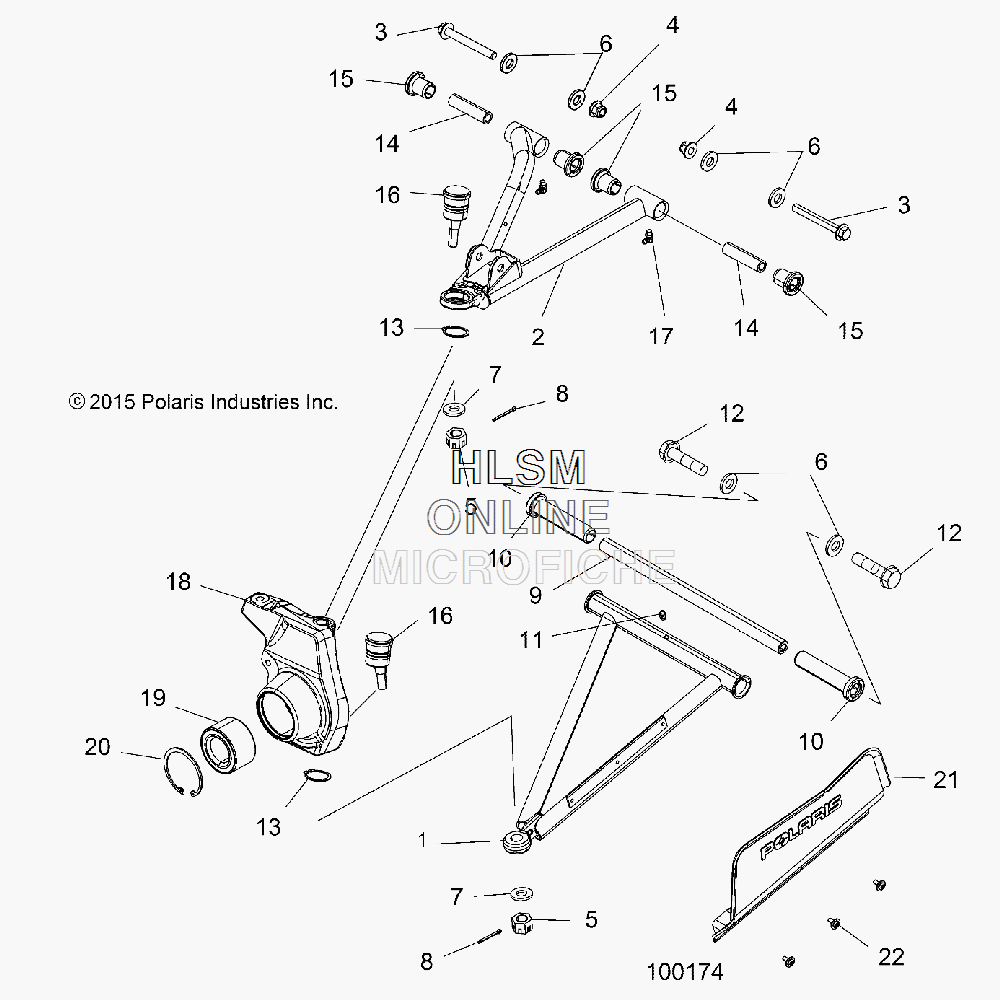

SUSPENSION- FRONT для Polaris SPORTSMAN 570 SP TOURING TURBO SILVER [A17SJE57AU] - 2017 года выпуска
-
№АртикулНазвание
-
11020987-067 CONTROL, ARM, LOWER, FRONT, LH, BLACKCONTROL, ARM, LOWER, FRONT, LH, BLACK
-
11020988-067 CONTROL, ARM, LOWER, FRONT, RH, BLACKCONTROL, ARM, LOWER, FRONT, RH, BLACK
-
21020527-067 CONTROL, ARM, UPPER, FRONT, LH, BLACKCONTROL, ARM, UPPER, FRONT, LH, BLACK
-
21020528-067 CONTROL, ARM, UPPER, FRONT, RH, BLACKCONTROL, ARM, UPPER, FRONT, RH, BLACK
-
37515472 SCREWSCREW
-
47542439 NUTNUT
-
57547336 NUT, CASTLENUT, CASTLE
-
67556153 WASHERWASHER
-
77556212 WASHERWASHER
-
87661203 PIN, COTTERPIN, COTTER
-
95139929 SHAFT-A-ARM,C-BORESHAFT-A-ARM,C-BORE
-
105436973 BUSHING, LONGBUSHING, LONG
-
117080433 FITTING, LUBFITTING, LUB
-
127520340 SCR-3/8-24X1 3/4,HX,GR5,P30,YSCR-3/8-24X1 3/4,HX,GR5,P30,Y
-
137710533 RING, RETAINER, EXTERNALRING, RETAINER, EXTERNAL
-
145137346 SHAFT, A-ARM, 63.5MMSHAFT, A-ARM, 63.5MM
-
155439874 BUSHINGBUSHING
-
167061230 BALL, JOINTBALL, JOINT
-
177080510 FITTING, ZERKFITTING, ZERK
-
181824434 ASM., STEERING, KNUCKLE, LH [INCL., KNUCKLE, 19, 20]ASM., STEERING, KNUCKLE, LH [INCL., KNUCKLE, 19, 20]
-
185139686 KNUCKLE, STEERING, MACH, LHKNUCKLE, STEERING, MACH, LH
-
181824435 ASM., STEERING, KNUCKLE, RH [INCL., KNUCKLE, 19, 20]ASM., STEERING, KNUCKLE, RH [INCL., KNUCKLE, 19, 20]
-
185139687 KNUCKLE, STEERING, MACH, RHKNUCKLE, STEERING, MACH, RH
-
193514634 BEARING, WHEEL, 35X64X37MMBEARING, WHEEL, 35X64X37MM
-
207710507 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
-
215435028-070 SHIELD, CV, FRONT, LH, BLACKSHIELD, CV, FRONT, LH, BLACK
-
215435029-070 SHIELD, CV, FRONT, RH, BLACKSHIELD, CV, FRONT, RH, BLACK
-
227512084 SCREWSCREW
