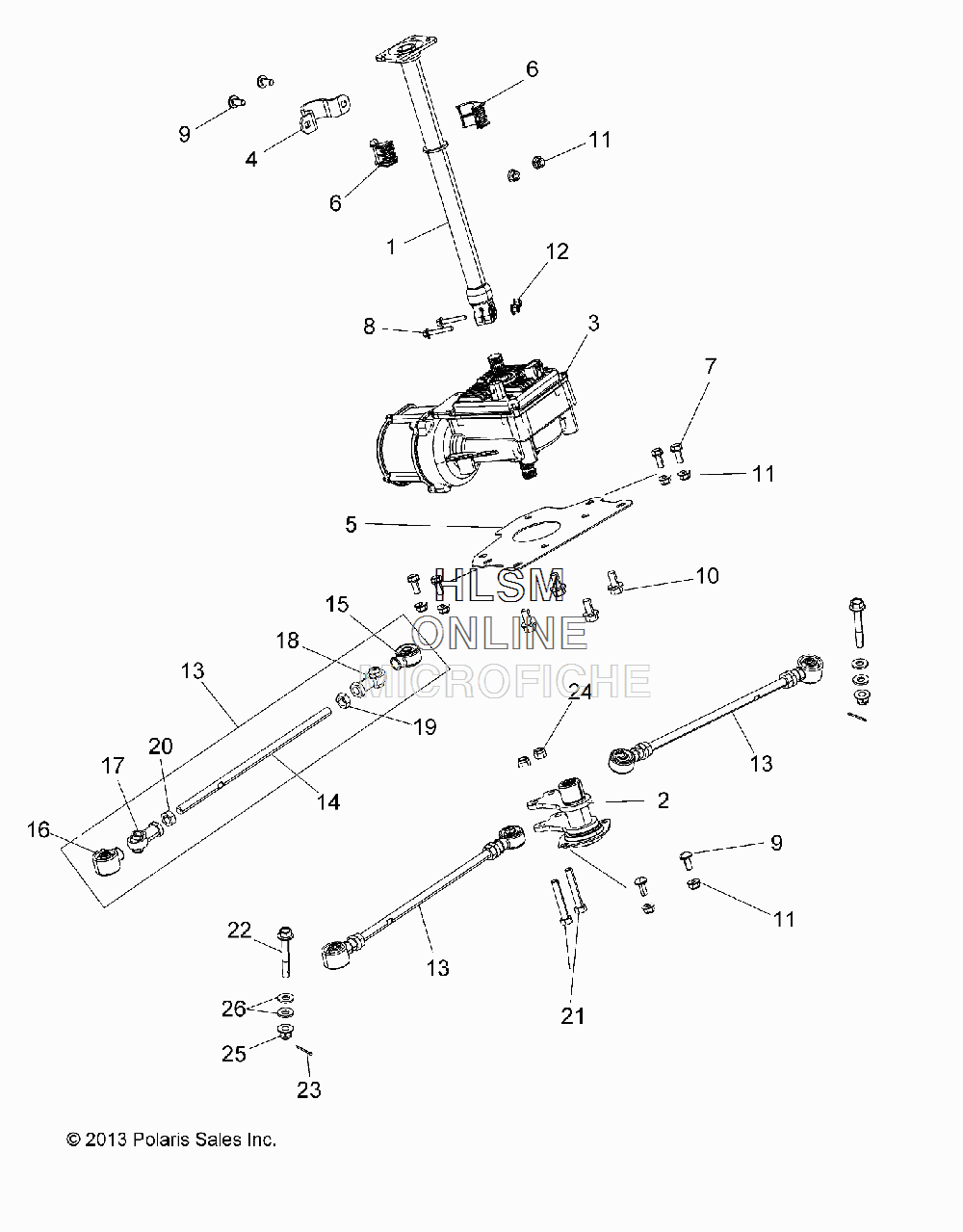

STEERING ASM. - EPS для Polaris SPORTSMAN 570 TRACTOR EPS SAGE BRUSH GREEN METALLIC [A17SES57E1] - 2017 года выпуска
-
№АртикулНазвание
-
11824100-329 POST, STEERING, UPPER, BLACKPOST, STEERING, UPPER, BLACK
-
21824101 ASM., STEERING POST, LOWERASM., STEERING POST, LOWER
-
32413344 ASM., POWER STEERING [TO 1/23/2017]ASM., POWER STEERING [TO 1/23/2017]
-
32413212 ASM-POWER STEERING,ATV [FROM 1/23/2017 AND AFTER]ASM-POWER STEERING,ATV [FROM 1/23/2017 AND AFTER]
-
45257028 BRACKET, UPPER STEERING BUSHINGBRACKET, UPPER STEERING BUSHING
-
55257877-329 PLATE, MOUNT, POWER STEERINGPLATE, MOUNT, POWER STEERING
-
65439731 BUSHING-UPPER STEERING,1 INBUSHING-UPPER STEERING,1 IN
-
77515398 SCREWSCREW
-
87516827 SCREWSCREW
-
97517428 BOLT, CARRIAGEBOLT, CARRIAGE
-
107518558 BOLTBOLT
-
117542343 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
127547274 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
131822851 ASM., TIE RODASM., TIE ROD
-
145134242 ROD, TIEROD, TIE
-
155412928 BOOT, SEAL, ROD ENDBOOT, SEAL, ROD END
-
165412929 BOOT, SEAL, ROD ENDBOOT, SEAL, ROD END
-
177061138 ROD, ENDROD, END
-
187061139 ROD, ENDROD, END
-
197542711 NUTNUT
-
207547028 NUT, LH, JAMNUT, LH, JAM
-
217515415 SCREWSCREW
-
227517909 BOLTBOLT
-
237661203 PIN, COTTERPIN, COTTER
-
247542439 NUT, NYLOKNUT, NYLOK
-
257547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
267556099 WASHER, FLATWASHER, FLAT
