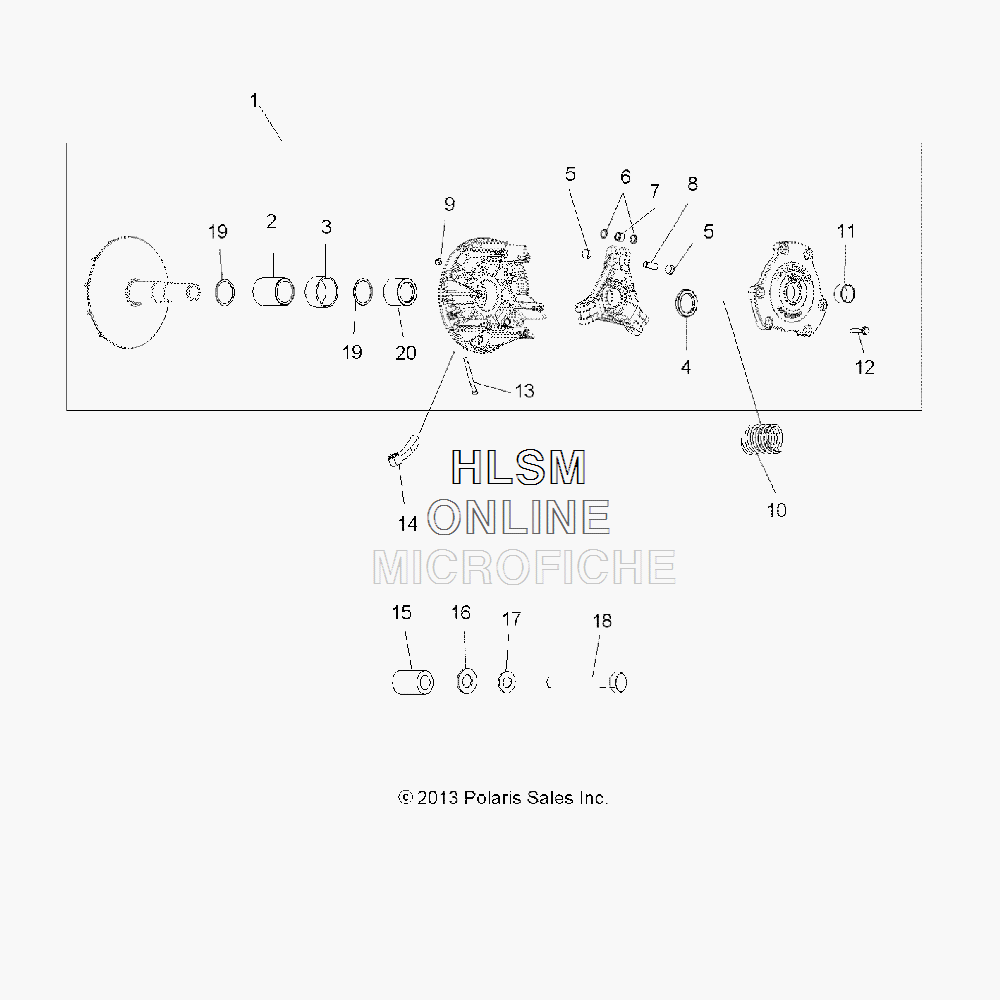

CLUTCH - PRIMARY для Polaris SPORTSMAN 570 X2 EPS TRACTOR SAGE BRUSH GREEN METALLIC [A17SWS57E1] - 2017 года выпуска
-
№АртикулНазвание
-
11323063 ASM., DRIVE CLUTCH [INCL. 1-9,11-13,19]ASM., DRIVE CLUTCH [INCL. 1-9,11-13,19]
-
21521172 ASM., CLUTCH, ONEWAYASM., CLUTCH, ONEWAY
-
33514492 BEARINGBEARING
-
45450770 SPACER, CLUTCH, LIMITERSPACER, CLUTCH, LIMITER
-
55439254 BUTTON, CLUTCHBUTTON, CLUTCH
-
65438247 WASHER, CLUTCH, SPIDER ROLLERWASHER, CLUTCH, SPIDER ROLLER
-
71321457 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
85020422 PIN, ROLLERPIN, ROLLER
-
97541906 NUT, FLEXLOCNUT, FLEXLOC
-
107043594 SPRING, CLUTCHSPRING, CLUTCH
-
113514684 COVER, BEARINGCOVER, BEARING
-
127518062 SCREWSCREW
-
137512266 BOLT, SHOULDERBOLT, SHOULDER
-
145632409 WEIGHT, SHIFTWEIGHT, SHIFT
-
155430261 BUSHINGBUSHING
-
165210748 WASHERWASHER
-
177575202 WASHER, LOCKWASHER, LOCK
-
187519287 BOLTBOLT
-
197556335 WASHERWASHER
-
205633037 SPACER, CLUTCHSPACER, CLUTCH
