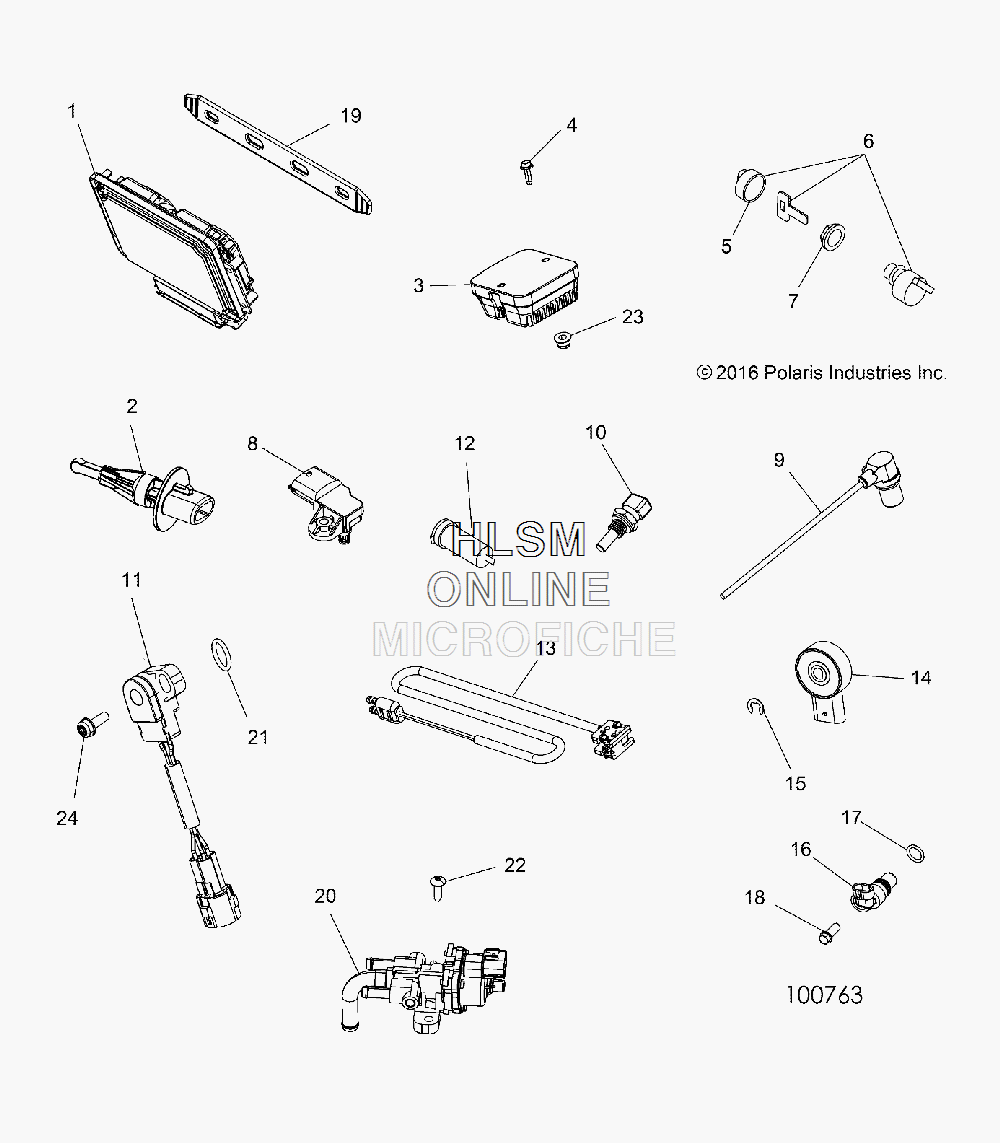

ELECTRICAL COMPONENTS для Polaris SPORTSMAN 850 SP PURE CAMO [A17SXA85A9] - 2017 года выпуска
-
№АртикулНазвание
-
14012838 ECM, BASE, M17ECM, BASE, M17
-
22410687 SENSOR, AIR TEMPSENSOR, AIR TEMP
-
34016868 REGULATOR-3PH,50A,SERIES,HISPD [FROM 1/1/2017 AND AFTER]REGULATOR-3PH,50A,SERIES,HISPD [FROM 1/1/2017 AND AFTER]
-
34014856 REGULATOR-3PH,50A,SERIES,HISPD [TO 1/1/2017]REGULATOR-3PH,50A,SERIES,HISPD [TO 1/1/2017]
-
47519342 SCR-TFHFL-M6X1.0X25,ZODSCR-TFHFL-M6X1.0X25,ZOD
-
55433534 COVER, KEYCOVER, KEY
-
64015033 SWITCH-KEY,3 POSITION,SEALED [INCL. 5] [FROM 9/26/2016 AND AFTER]SWITCH-KEY,3 POSITION,SEALED [INCL. 5] [FROM 9/26/2016 AND AFTER]
-
64012165 SWITCH, KEY, 3 POSITION [INCL. 5] [TO 9/26/2016]SWITCH, KEY, 3 POSITION [INCL. 5] [TO 9/26/2016]
-
75433733 NUT, IGNITIONNUT, IGNITION
-
82411528 SENSOR, T-MAPSENSOR, T-MAP
-
87518576 SCREWSCREW
-
92411589 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
97518548 SCREWSCREW
-
104010644 SENSOR, THERMISTORSENSOR, THERMISTOR
-
112412634 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
124012393 RECEPTACLE-POD MNT,12 VOLTRECEPTACLE-POD MNT,12 VOLT
-
132202794 KIT, BRAKE LIGHT SWITCHKIT, BRAKE LIGHT SWITCH
-
143233835 SWITCH [GEAR POSITION]SWITCH [GEAR POSITION]
-
153233834 RING, RETAININGRING, RETAINING
-
164013908 SENSOR, SPEEDSENSOR, SPEED
-
173234302 O-RINGO-RING
-
183234329 SCREWSCREW
-
195414193 STRAP, ECUSTRAP, ECU
-
204013313 VALVE, IACVALVE, IAC
-
202878507 KIT, HARNESS, IACKIT, HARNESS, IAC
-
213131729 O-RINGO-RING
-
227519045 SCREWSCREW
-
237547274 NUT, FLANGENUT, FLANGE
-
243131010 SCREWSCREW
