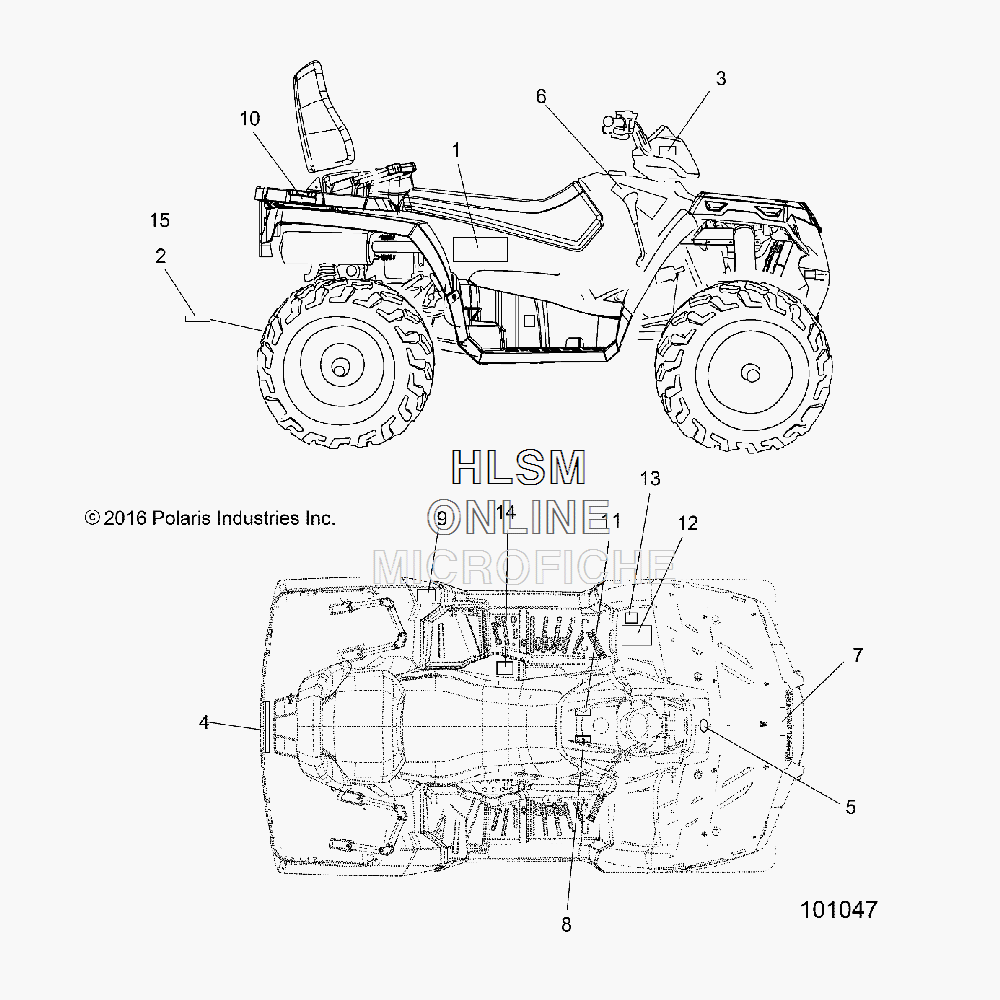

DECALS для Polaris SPORTSMAN TOURING 570 EFI WHITE LIGHTING [A17SDA57L2] - 2017 года выпуска
-
№АртикулНазвание
-
17184286 DECAL-SIDE,AWD,LHDECAL-SIDE,AWD,LH
-
17184287 DECAL-SIDE,AWD,RHDECAL-SIDE,AWD,RH
-
27174159 DECAL, HITCHDECAL, HITCH
-
37185008 DECAL-POD,TOURDECAL-POD,TOUR
-
47172572 DECAL, WARNING, FRONT/REAR RACKDECAL, WARNING, FRONT/REAR RACK
-
57078465 LOGO, POLARIS STARLOGO, POLARIS STAR
-
67184288 DECAL-SIDE,SPMN,570,LHDECAL-SIDE,SPMN,570,LH
-
67184289 DECAL-SIDE,SPMN,570,RHDECAL-SIDE,SPMN,570,RH
-
77181584 DECAL-WARN,FR & RR RACK,41/82DECAL-WARN,FR & RR RACK,41/82
-
87181543 DECAL-WARN,4X4(AWD),EUDECAL-WARN,4X4(AWD),EU
-
97183262 DECAL-WARN,TIRE PRES.34,5DECAL-WARN,TIRE PRES.34,5
-
107174412 DECAL, REFLECTOR, REDDECAL, REFLECTOR, RED
-
117181544 DECAL-WARN,OVERRIDE,EUDECAL-WARN,OVERRIDE,EU
-
127181540 DECAL-WARN,GEN,2 OCDECAL-WARN,GEN,2 OC
-
137181536 DECAL-WARN,DISC,EU,2 OCDECAL-WARN,DISC,EU,2 OC
-
147181427 DECAL-WARN,CLUTCH COVER,EUDECAL-WARN,CLUTCH COVER,EU
-
157181428 DECAL-WARN,HITCH,EUDECAL-WARN,HITCH,EU
-
162636503 ASM-REFLECTOR,AMBER W/VHB TAPEASM-REFLECTOR,AMBER W/VHB TAPE
